Parameters
Download
GPSR

Product description

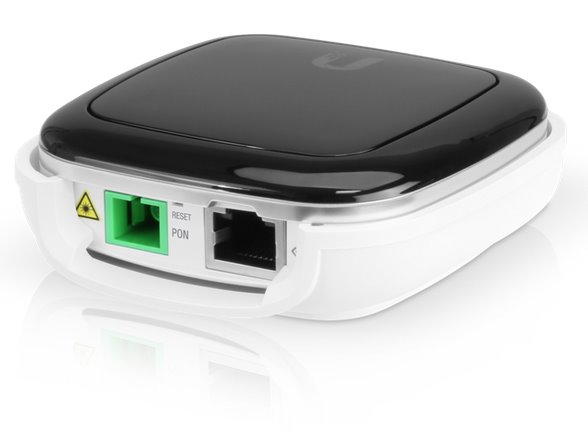

UF-NANO is a compact and at the same time robustly built GPON terminal element with an LED display for displaying the current throughput / IP address and the status of the Ethernet and optical line. The speed of the PON line is maximum (Rx/Tx) 2.488 / 1.244Gbps, the speed of the ethernet is 10/100/1000Mbps and the device as such can only be powered via a 24V passive PoE adapter. As such, the device serves to convert metallic to optical and can only use Bridge mode, not Router mode.

UF-NANO installation

Package contains

  • Device
  • PoE power adapter 24V / 0.3A
  • Power cord
  • (4) screws and screw anchors
  • Wall Mount Bracket

GPSR

Contact:
Ubiquiti International Holding B.V.
Ekkersrijt 3102, 5692 CC Son en Breugel
support@ui.com

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Optics

Transmission speed: 2.488 / 1.244 Gbps
Wavelength - Tx/Rx [nm]: 1310 / 1490
Distance [km]: 20
Transfer type: GPON
Polishing type: APC

Connectors and Interfaces

Optical Connectors: (1) SC
LAN speed: (1) 10/100/1000Mbps

Power

Power over Ethernet: 20 .. 28V DC
Max. power consumption [W]: 7

Physical characteristics

Buttons: Reset
Operating temperature [°C]: -10 up to 45
Width [mm]: 77
Height [mm]: 77
Depth [mm]: 28

Software

Default IP address: 192.168.1.1
Default login and password: ubnt / ubnt
