Ubiquiti UDW - UniFi Dream Wall
Your price excl. VAT
921.58 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 921.65 EUR |
| Your price incl. VAT (21%) | 1 115.20 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10903516 | |
| Part No. | UDW | |
| Warranty | 24 months | |
RPI303-CK-RM
71.06 EUR excl. VAT
86.07 EUR incl. VAT
To order within 5d
UI-ProSupport-1Y-BH-EU-D
1 197.05 EUR excl. VAT
1 448.62 EUR incl. VAT
To order within 3d
UI-ProSupport-1Y-24x7-EU-D
1 994.82 EUR excl. VAT
2 413.93 EUR incl. VAT
To order within 3d
UI-ProSupport-3Y-BH-EU-D
3 032.25 EUR excl. VAT
3 669.22 EUR incl. VAT
To order within 3d
UI-ProSupport-3Y-24x7-EU-D
4 787.82 EUR excl. VAT
5 793.46 EUR incl. VAT
To order within 3d
SDCS2/256GB
20.82 EUR excl. VAT
25.22 EUR incl. VAT
To order within 48h
SDCE/256GB
25.44 EUR excl. VAT
30.81 EUR incl. VAT
In Stock
ML-S+85D-03
8.52 EUR excl. VAT
10.39 EUR incl. VAT
Expected 27.1.2025
ML-S+31D-10
13.77 EUR excl. VAT
16.75 EUR incl. VAT
In Stock
ML-S+2733-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-S+3327-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
Transmission speed - 5GHz [Mb/s]:
2402
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
23
Tx power 5GHz [dBm]:
26
Security:
WEP, WPA, WPA2, WPA3
2.4GHz MIMO:
2 x 2
5GHz MIMO:
4 x 4
Type of antenna:
Built-in
Roaming:
Yes
Antenna gain [dBi]:
6
Connectors and Interfaces
WAN speed:
(1) 100/1000/2500Mbps
Slot for Memory Card:
microSD - up to 512GB
LAN speed:
(17) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(2) 10Gbps
Other features:
Touchscreen, Bluetooth
Power
Power type:
Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at, 802.3at - ultra PoE (60W)
Redundant power supply:
Yes
PoE Out ports:
12
PoE budget [W]:
422
Max. power consumption [W]:
532
Power via connector/terminal:
230V AC
Physical characteristics
Design:
On the wall
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
-10 up to 40
Weight [g]:
8600
Width [mm]:
342
Height [mm]:
549
Depth [mm]:
62
Hardware
CPU:
ARM Cortex-A57
CPU frequency [MHz]:
1700
CPU cores:
4
RAM [MB]:
4096
Software
Pre-installed controller:
UniFi Protect, UniFi Network
Operating mode:
AP Router
Management:
UniFi Network
Default IP address:
192.168.1.1
Default login and password:
Is set by the user at the first startup
Video
Product description

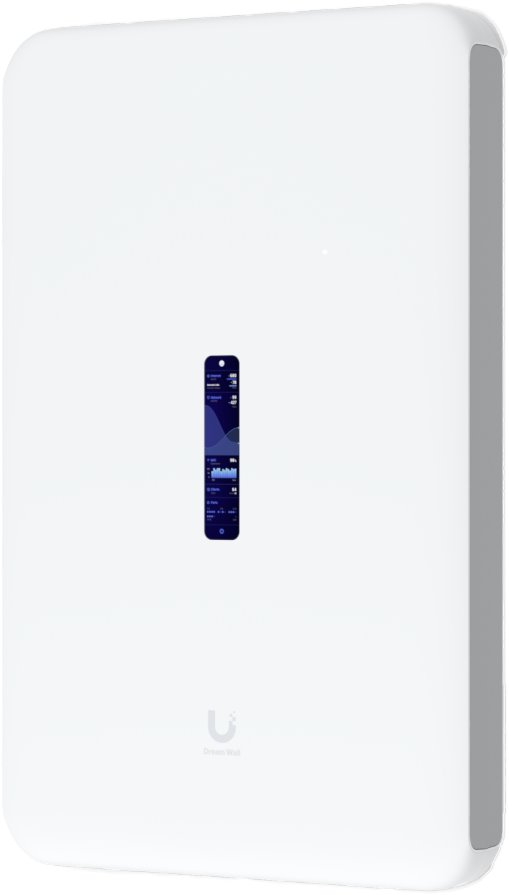

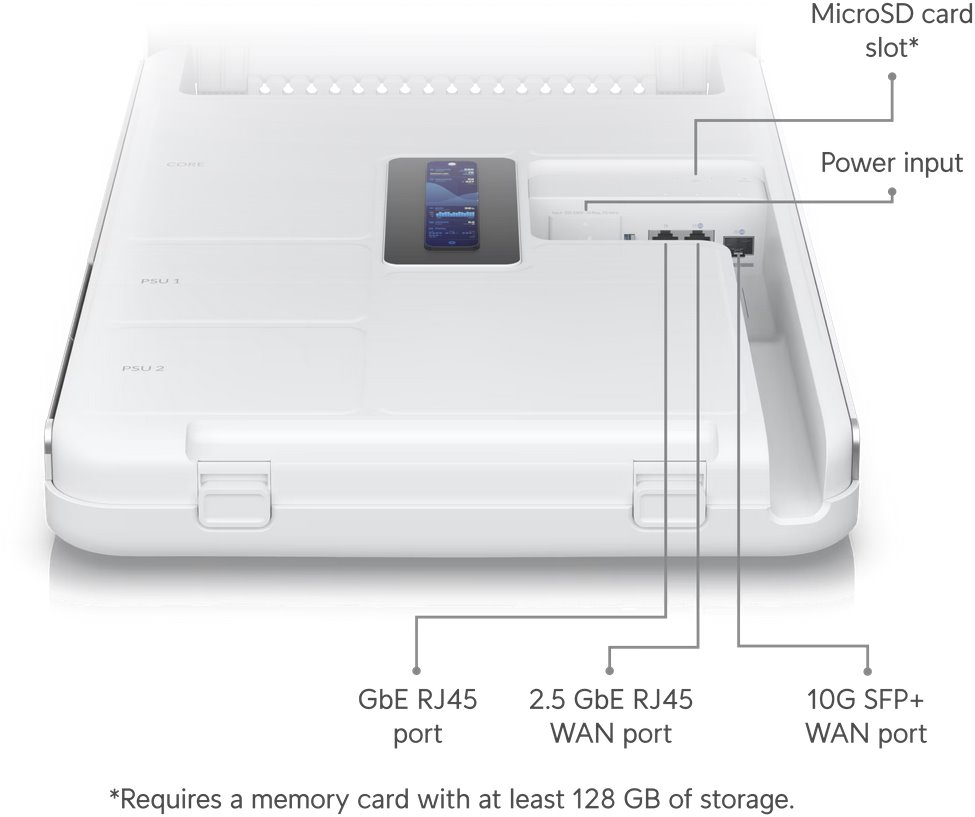

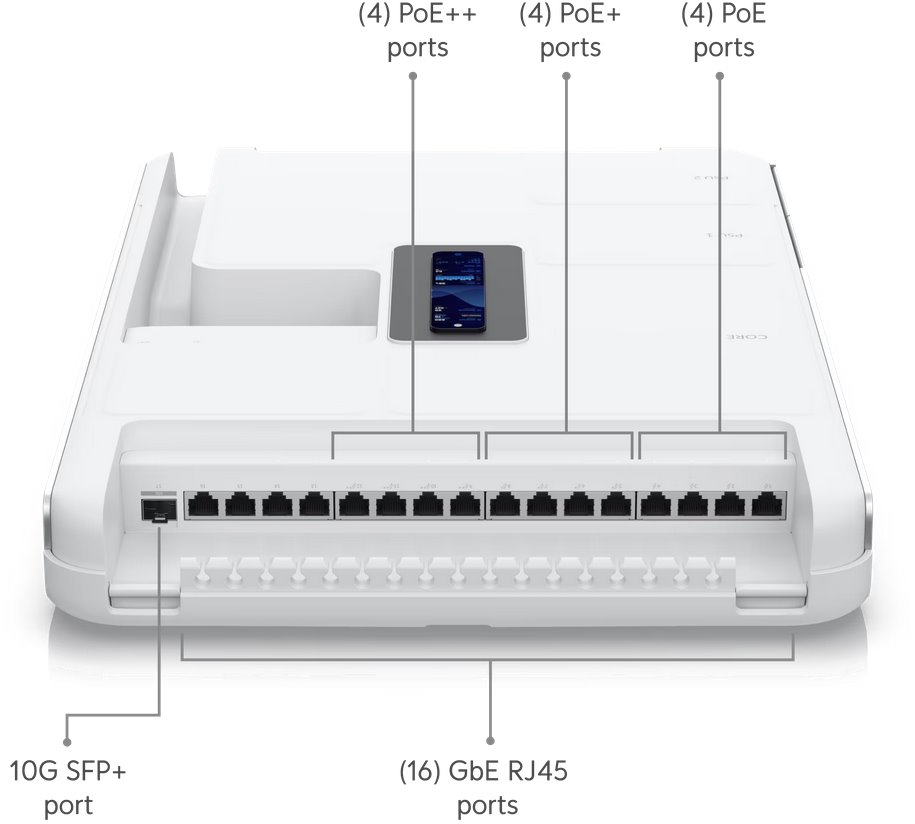

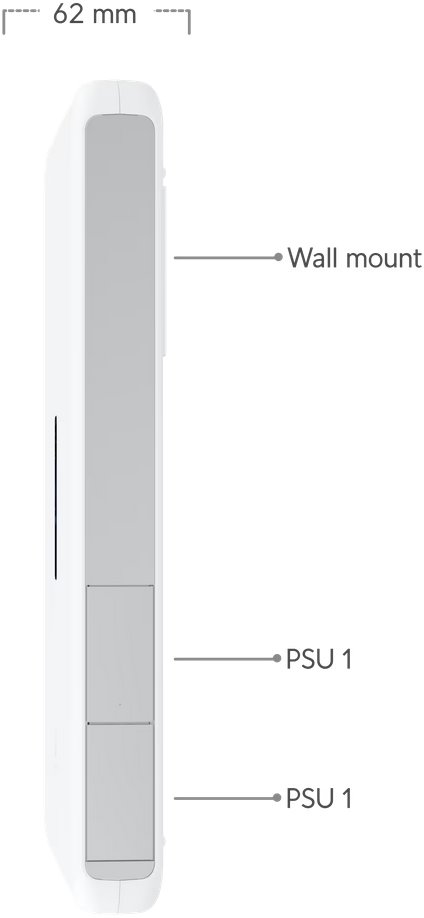

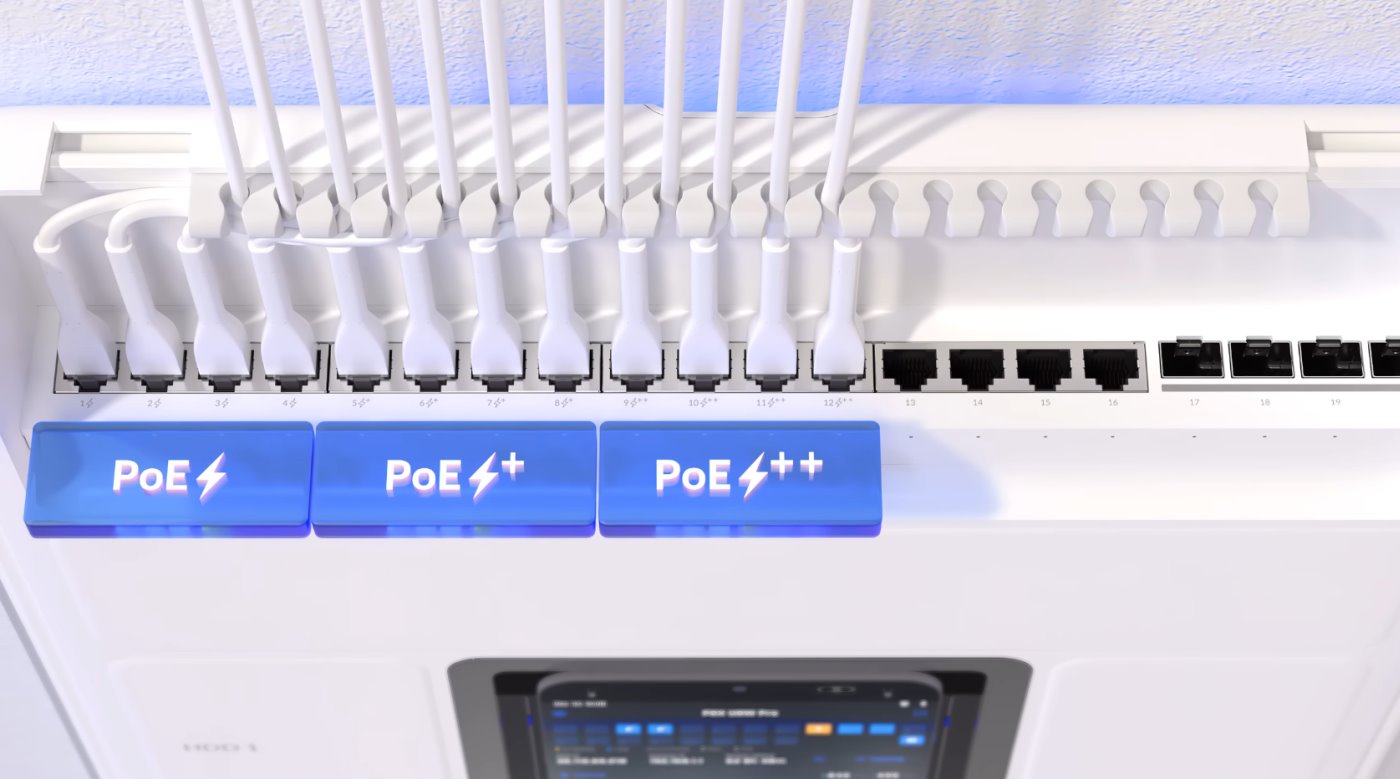

Dream Wall is another in the range of UniFi All-in-one devices. It contains a gateway with a firewall, Wi-Fi 6 access point, NVR and a switch with PoE function. The unit provides a wide range of network connectivity options. It offers the option of connecting via a 10Gbps SFP+ port or a 2.5Gbps Ethernet port. For connecting other devices in the LAN, it offers a 10Gbps SFP+ port together with 17 Ethernet 1Gbps ports, of which 12 have PoE functionality (4x POE++, 4x POE+ and 4x POE). From the factory, the device is equipped with one hot-swap source with a power of 550W, and a second position is available for redundancy. The maximum consumption of the device is 532W including connected powered devices.
The radio part supports the latest WiFi 6 (802.11ax) standard, is backward compatible with older standards and has MIMO 2x2 (2.4 Ghz) and 4x4 (5 GHz) with a maximum modulation speed 300 + 2400 Mbps.

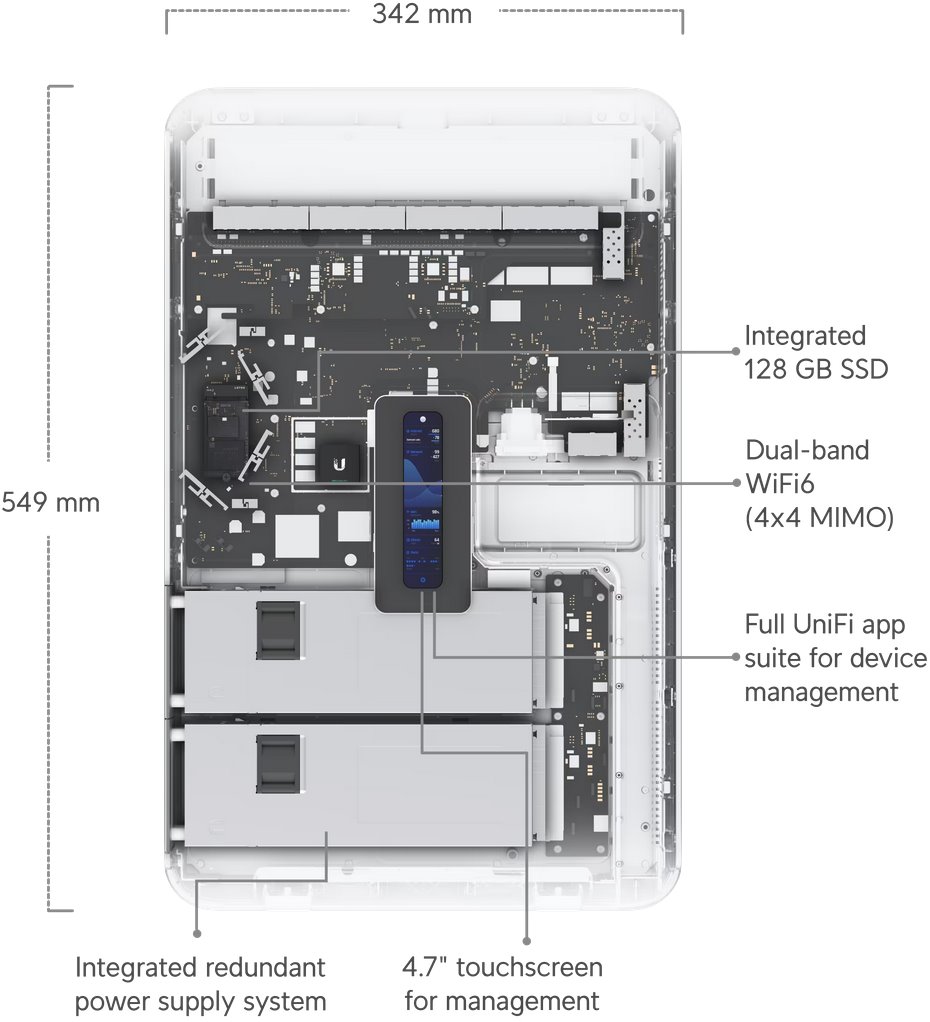

All important information about the device and the network can be accessed immediately thanks to the integrated display with a diagonal of 4.7". The pre-installed 512GB microSD card is used for storing camera recordings, and the device also has own SSD disk with a capacity of 128GB.
Supported UniFi services
Advantages of the UniFi solution

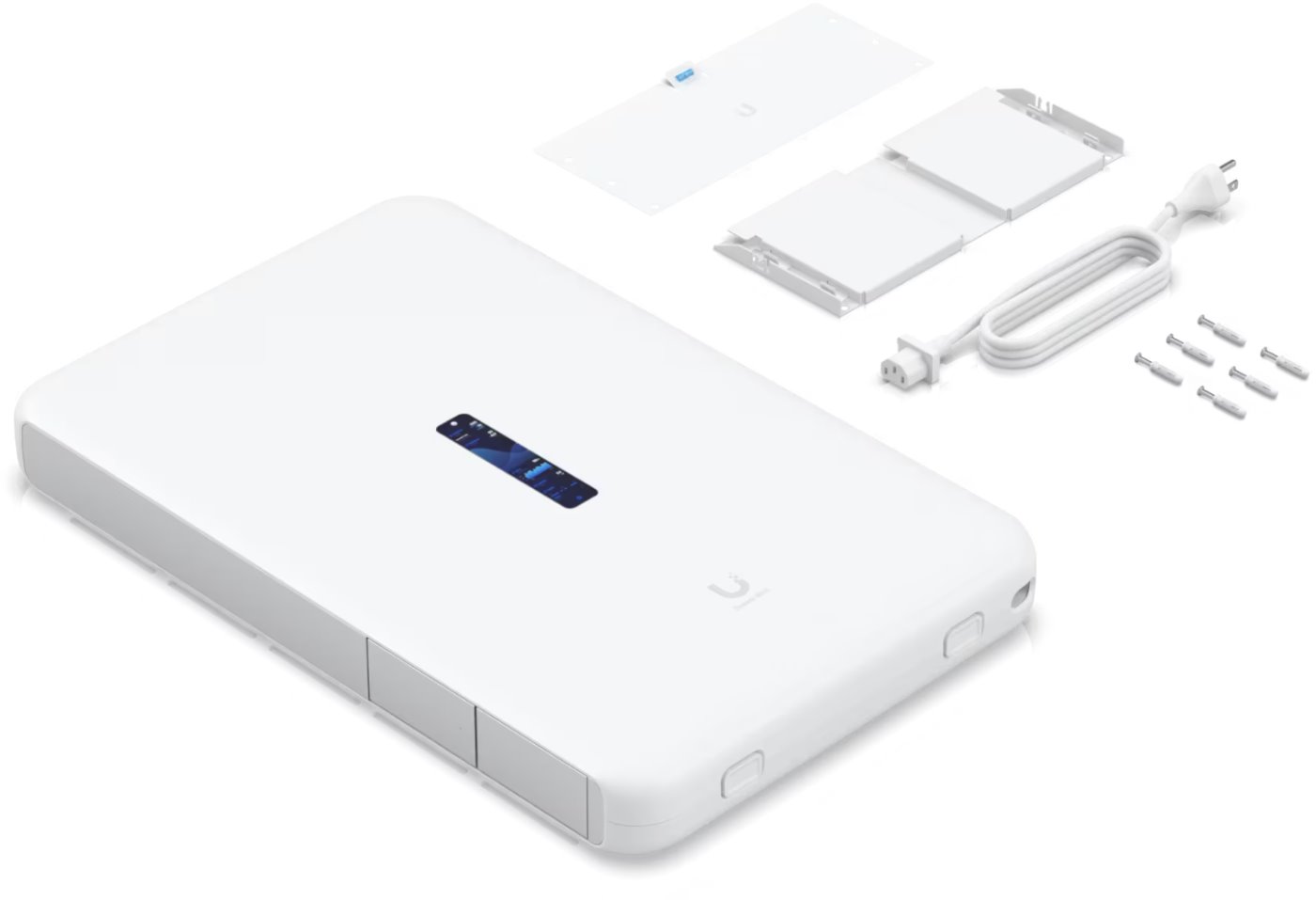

Package contents
Download
Datasheet Quick installation guideGPSR
