Ubiquiti UBB-XG, UniFi Building to Building Bridge XG
Your price excl. VAT
965.57 EUR
| Recycling fee | 0.13 EUR |
|---|---|
| Your price with RF | 965.70 EUR |
| Your price incl. VAT (21%) | 1 168.50 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10903502 | |
| Part No. | UBB-XG | |
| Warranty | 24 months | |
LCupc/LCupc-SMD20out
25.84 EUR excl. VAT
31.27 EUR incl. VAT
Not in stock
ML-S+85D-03
8.47 EUR excl. VAT
10.33 EUR incl. VAT
In Stock
ML-S+31D-10
13.69 EUR excl. VAT
16.65 EUR incl. VAT
Expected 17.12.2024
ML-S+2733-10
18.60 EUR excl. VAT
22.59 EUR incl. VAT
In Stock
ML-S+3327-10
18.60 EUR excl. VAT
22.59 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Channel bandwidth [MHz]:
2160, 4320
WiFi standards:
802.11ad, 802.11ay, 802.11ac
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 60GHz [Mb/s]:
6000
Security:
WPA2 AES
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Optical interfaces:
(1) 1/10Gbps
Other features:
Bluetooth
Power
Power over Ethernet:
802.3bt, 48V DC
Power type:
PoE
Max. power consumption [W]:
31
Physical characteristics
Protection class:
IPX6
Buttons:
Reset
Operating temperature [°C]:
-40 up to 55
Weight [g]:
1700
Width [mm]:
159
Height [mm]:
159
Depth [mm]:
59
Software
Default IP address:
Dynamic from DHCP
Default login and password:
ubnt / ubnt
Product description

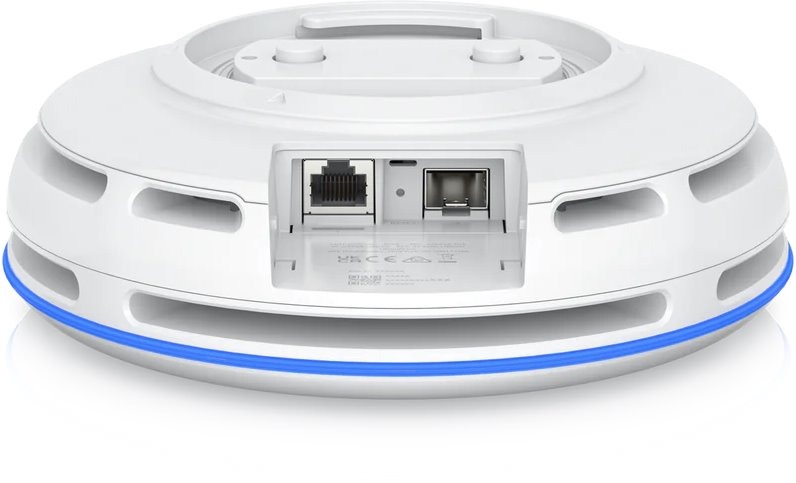

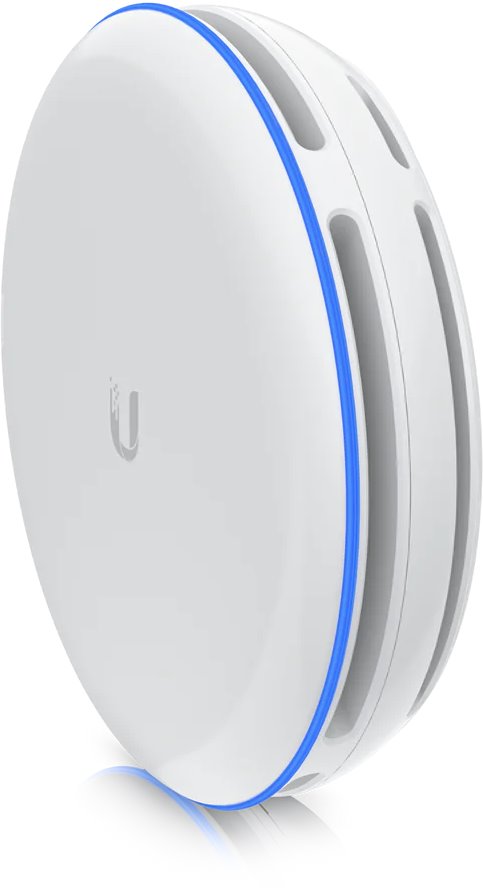

UniFi Building to Building Bridge XG is a very compact 60 GHz point-to-point (PtP) device with support for 802.11ad/ay standards and built-in 5 GHz backup (WiFi 5 - 802.11ac) from Ubiquiti with a range of 500 m+ is ideal for connecting two buildings for a short distance. The device is equipped with a Gigabit LAN port with PoE support, one SFP+ port and Bluetooth for easy setup from a mobile via UniFi Network application. The device only supports bridge mode and supports both 2160 and 4320 MHz channel width in the 60GHz spectrum. The maximum bandwidth indicated by the manufacturer is 6 Gbps.
Key Features
Package contents
Download
Datasheet Quick Start GuideTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
