Ubiquiti ToughSwitch CARRIER
We are sorry, this product is no longer in our offer.

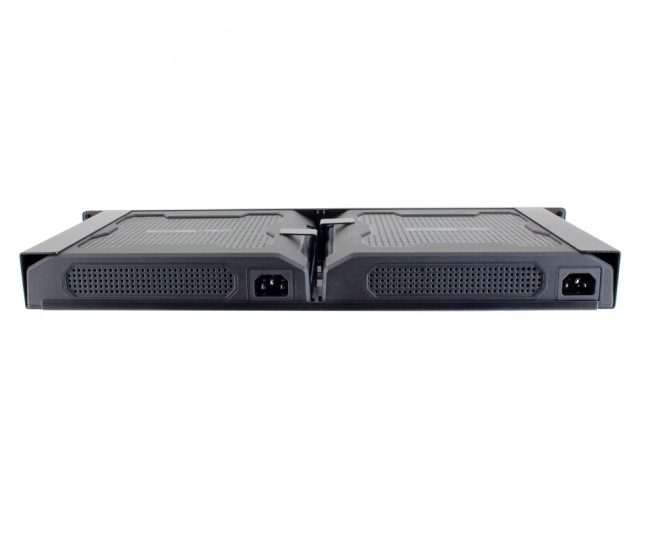

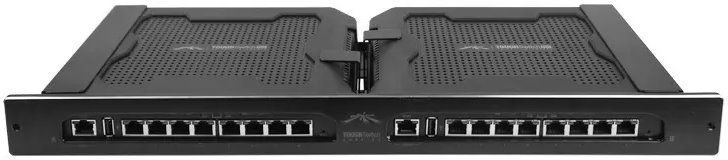

Ubiquiti ToughSwitch CARRIER
×
0/0
Sale
-33%
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.66 EUR excl. VAT
4.43 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(8) 10/100/1000Mbps + (1) 10/100Mbps (managment)
Management LAN:
(1) 10/100Mbps - for each switch separately
USB ports 2.0:
2 (určeno pro budoucí použití)
Power
Power type:
Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
Passive 24V, Passive 48V
PoE Out ports:
8 + 8
PoE budget [W]:
300
Max. power consumption [W]:
300
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-25 up to 55
Width [mm]:
480
Height [mm]:
45
Depth [mm]:
186
Software
Web management:
Yes
Management:
Web management
Features:
VLAN
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Product description
Power over Ethernet Controllers, TOUGHSwitch™ PoE from Ubiquiti Networks. TOUGHSwitch PoE delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect your PoE devices, simply enable PoE in the easy-to-use TOUGHSwitch Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected. TOUGHSwitch is available in multiple versions to meet your deployment needs.

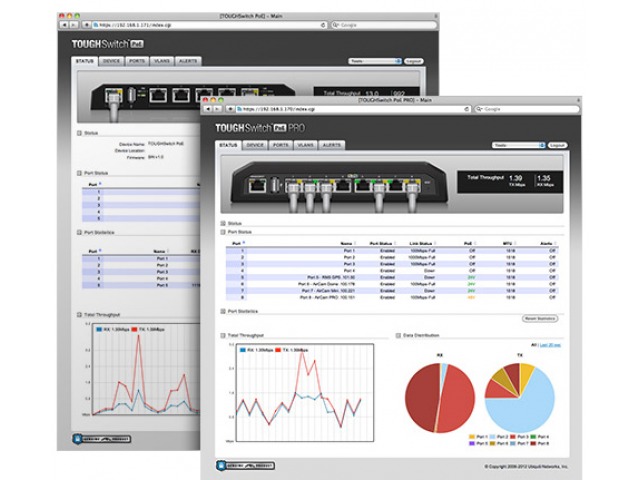

Intuitive web interface
Web management was built from the outset to be simple and very intuitive. Managmant allows you to configure eg:
Package contains
Download
CE Datasheet FirmwareGPSR
Ubiquiti International Holding B.V.
Ekkersrijt 3102, 5692 CC Son en Breugel
support@ui.com
Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
