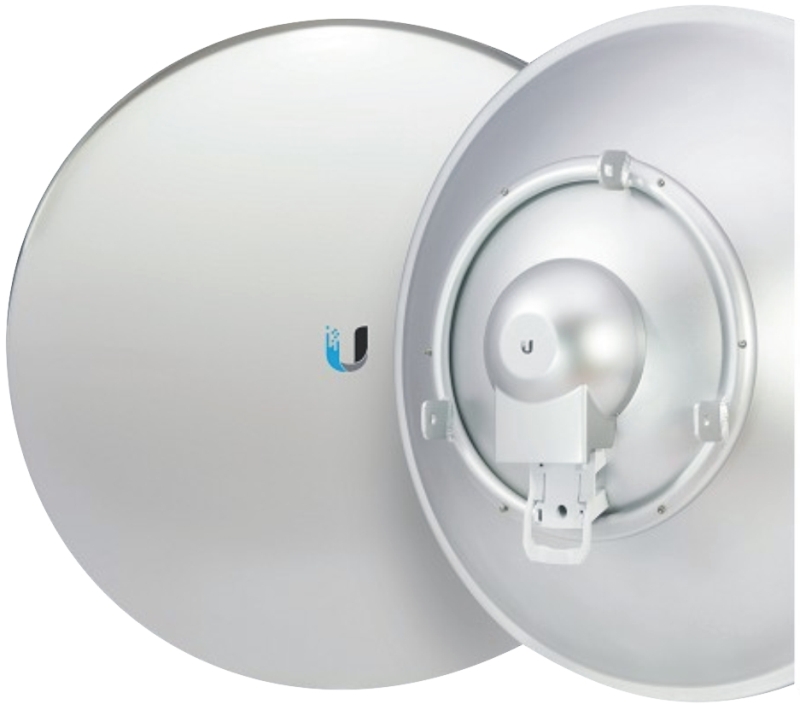

Ubiquiti RocketDish 31dBi, 5GHz AC, Rocket Kit
Ubiquiti RocketDish 31dBi, 5GHz AC, Rocket Kit
×
0/0
Oversized transport - The shipping price will be calculated after receiving the order. Shipping price may vary depending on your delivery adress.
Your price excl. VAT
277.39 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 277.59 EUR |
| Your price incl. VAT (21%) | 335.88 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
1 piece
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10210244 | |
| Part No. | RD-5G31-AC | |
| Warranty | 24 months | |
You have a choice of 4 variantscompare all
31dBi
RD-5G31-AC
277.39 EUR
R5AC-Lite
109.83 EUR excl. VAT
132.98 EUR incl. VAT
In Stock
AF-MPX8
99.84 EUR excl. VAT
120.89 EUR incl. VAT
In Stock
AF-MPX4
72.13 EUR excl. VAT
87.36 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
VSWR:
< 1,4
Cross-Pol Isolation [dB]:
35
Wireless frequency:
5 GHz
Antenna type:
Directional
Antenna gain [dBi]:
31
Connectors and Interfaces
Rocket kit:
Yes
RF connectors:
(2) RSMA female
Physical characteristics
Antenna design:
Parabolic
Wind load [km/h]:
200
Radom:
Yes
Purpose:
Outdoor
Weight [kg]:
7,6
Width [mm]:
748
Height [mm]:
748
Depth [mm]:
349
Product description
Ubiquiti RocketDish RD-5G31-AC is a 2x2 parabolic antenna suitable for long PtP coupled using Rocket M units. The main benefit compared to the previous model is excellent isolation of the antero-posterior ratio and SNR / noise isolation. A great benefit is the integration of Radom for easier installation and better weather conditions.

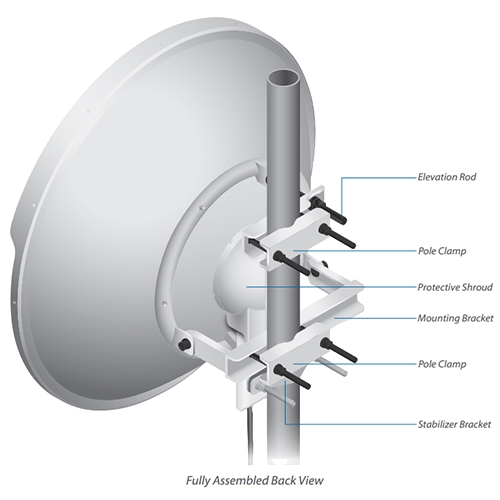

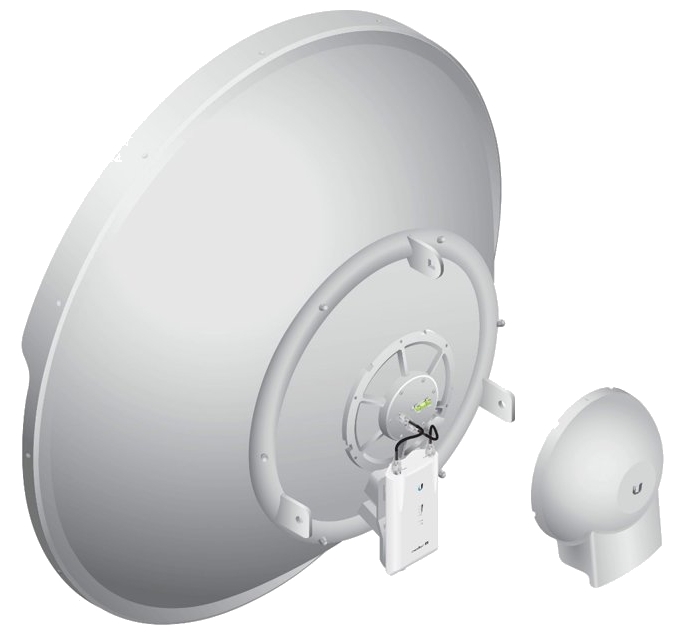

Built-in Rocket kit
Thanks to the built-in mounting system of the so-called rocket kit, any Rocket unit can be directly mounted on this antenna without the need for additional accessories. Simply click the Rocket and you're done.

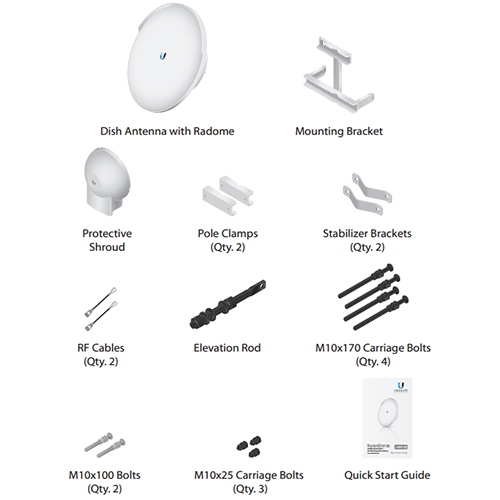

Package contains
Download
Datasheet Quick Install GuideGPSR
