Ubiquiti PS-5AC - airMax AC PrismStation, 5GHz Radio-only, shielded and features airPrism Active RF Filter
Ubiquiti PS-5AC - airMax AC PrismStation, 5GHz Radio-only, shielded and features airPrism Active RF Filter
×
0/0
Your price excl. VAT
246.30 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 246.37 EUR |
| Your price incl. VAT (21%) | 298.11 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10901681 | |
| Part No. | PS-5AC | |
| Warranty | 24 months | |
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
Horn-5-90
64.33 EUR excl. VAT
78.08 EUR incl. VAT
In Stock
Horn-5-60
64.33 EUR excl. VAT
78.08 EUR incl. VAT
In Stock
Horn-5-45
64.33 EUR excl. VAT
78.08 EUR incl. VAT
In Stock
Horn-5-30
64.33 EUR excl. VAT
78.08 EUR incl. VAT
In Stock
TP-ADAP-IS
20.30 EUR excl. VAT
24.64 EUR incl. VAT
In Stock
STH-30-USMA
100.00 EUR excl. VAT
121.24 EUR incl. VAT
In Stock
STD-21-UM
37.66 EUR excl. VAT
45.81 EUR incl. VAT
In Stock
STD-24-UM
43.47 EUR excl. VAT
52.84 EUR incl. VAT
In Stock
STD-27-UM
43.47 EUR excl. VAT
52.84 EUR incl. VAT
In Stock
STH-A45-USMA
100.00 EUR excl. VAT
121.24 EUR incl. VAT
In Stock
PK35S421V100
12.46 EUR excl. VAT
15.08 EUR incl. VAT
In Stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Sensitivity [dBm]:
-96
Frequency range [MHz]:
5150 - 5875
Wireless frequency:
5 GHz
WiFi standards:
airMAX ac
Transmission speed - 5GHz [Mb/s]:
866
Tx power 5GHz [dBm]:
28
Security:
WPA2 AES
5GHz MIMO:
2 x 2
Type of antenna:
Detachable
Detachable antennas:
1
Connectors and Interfaces
RF connectors:
IsoStation port
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
GPS modul:
Yes
Other features:
WiFi management radio
Power
Power over Ethernet:
20 .. 26V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
10
Physical characteristics
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Weight [g]:
762
Width [mm]:
155
Height [mm]:
155
Depth [mm]:
104
Hardware
CPU:
MIPS 74Kc
RAM [MB]:
128
Software
Operating mode:
Client, Repeater, AP Router, Access Point, Client Router (wisp)
IPv6 support:
Transparent (bridge mode)
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Video
Product description

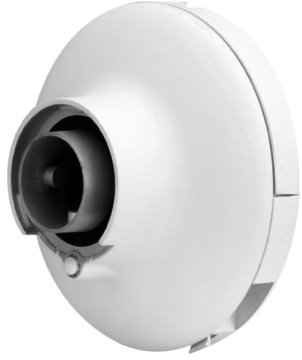

With a die-cast aluminum base and interchangeable antenna, the PrismStation and brings increased performance to your network using technology that isolates beam communications between your devices. The PrismStation AC delivers throughput speeds of up to 500+ Mbps thanks to airPrism technology.
Modular Design
The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The IsoStation also gets maximum gain out of the smallest footprint.
Beam Performance Perfected
The PrismStation can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.
Enhanced Co-Location
Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°) are ideal for cluster sector installations with high co-location requirements.
Improved Noise Immunity
PrismStation blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Management Wi-Fi Radio
The PrismStation AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Package contains
Download
Datasheet Firmware GPS sync design guide Quick GuideGPSR
