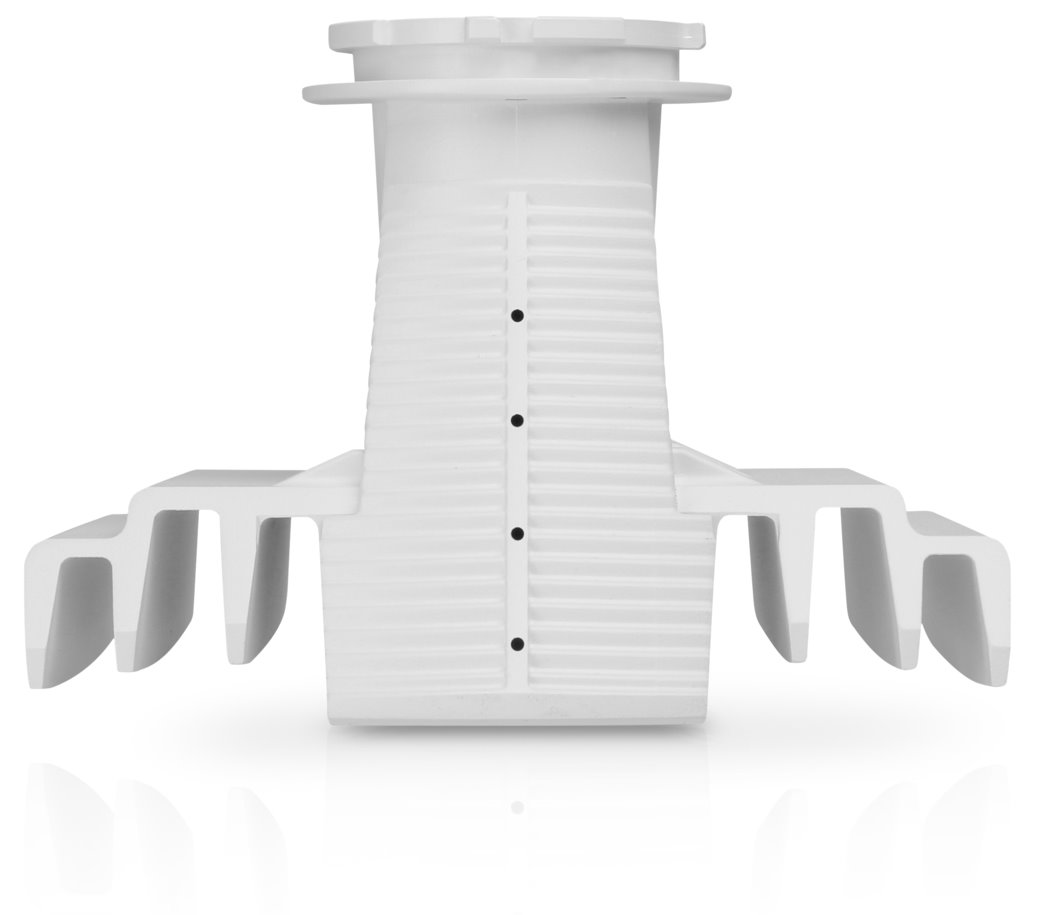

Ubiquiti PrismAP-5-90, (Horn-5-90) Asymetrical sector 5GHz antenna, 13dBi, 90°
Ubiquiti PrismAP-5-90, (Horn-5-90) Asymetrical sector 5GHz antenna, 13dBi, 90°
×
0/0
Your price excl. VAT
63.90 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 64.10 EUR |
| Your price incl. VAT (21%) | 77.56 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10901672 | |
| Part No. | Horn-5-90 | |
| Warranty | 24 months | |
You have a choice of 4 variantscompare all
PS-5AC
244.65 EUR excl. VAT
296.11 EUR incl. VAT
In Stock
PK35S421V100
10.29 EUR excl. VAT
12.45 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH, VH (slant)
VSWR:
< 2,0
Cross-Pol Isolation [dB]:
17
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
90
Azimuth beam width (-6dB) [°]:
45
Antenna type:
Sector
Antenna gain [dBi]:
13
Connectors and Interfaces
RF connectors:
IsoStation port
Physical characteristics
Wind load [km/h]:
200
Purpose:
Outdoor
Weight [kg]:
0,9
Width [mm]:
152
Height [mm]:
187
Depth [mm]:
113
General
Compatibility:
IsoStation, PrismStation
Product description
The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or IsoStation radio, the system gets maximum gain out of the smallest footprint.
Asymmetrical horn antennas
90° version has naturally attenuated side lobes and extremely low back radiation. Antenna offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.
Download
Datasheet Quick GuideGPSR
