Ubiquiti PrismAP-5-30, (Horn-5-30) Symmetrical sector 5GHz antenna, 19dBi, 30°
Ubiquiti PrismAP-5-30, (Horn-5-30) Symmetrical sector 5GHz antenna, 19dBi, 30°
×
0/0
Your price excl. VAT
64.33 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 64.53 EUR |
| Your price incl. VAT (21%) | 78.08 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10901669 | |
| Part No. | Horn-5-30 | |
| Warranty | 24 months | |
You have a choice of 4 variantscompare all
PS-5AC
246.30 EUR excl. VAT
298.11 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH, VH (slant)
VSWR:
< 1,7
Cross-Pol Isolation [dB]:
17
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
30
Azimuth beam width (-6dB) [°]:
30
Antenna type:
Sector
Antenna gain [dBi]:
19
Connectors and Interfaces
RF connectors:
IsoStation port
Physical characteristics
Wind load [km/h]:
200
Purpose:
Outdoor
Weight [kg]:
1,1
Width [mm]:
221
Height [mm]:
221
Depth [mm]:
184
General
Compatibility:
IsoStation, PrismStation
Product description

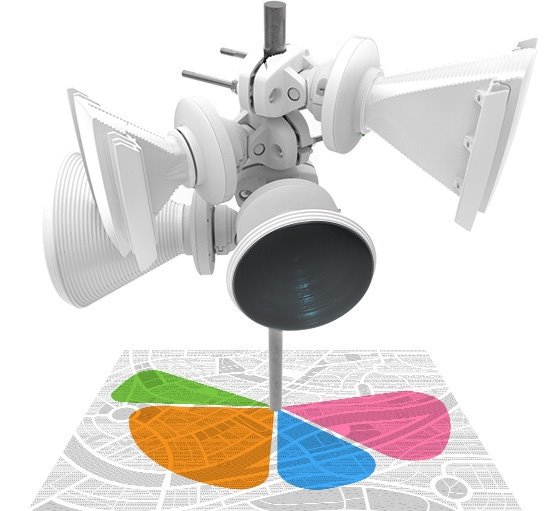

The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or IsoStation radio, the system gets maximum gain out of the smallest footprint.
Symmetrical horn antenna
30°version offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.
Download
Datasheet Quick GuideGPSR
