Ubiquiti PowerBridge M10, venkovní, 10GHz, airMAX, unit only
Ubiquiti PowerBridge M10, venkovní, 10GHz, airMAX, unit only
×
0/0
Your price excl. VAT
322.19 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 322.26 EUR |
| Your price incl. VAT (21%) | 389.93 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
5 pcs.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10131251 | |
| Part No. | PBM10-UNIT | |
| Warranty | 24 months | |
ETH-SP-G2
9.93 EUR excl. VAT
12.10 EUR incl. VAT
In Stock
CT-290-48-B
6.36 EUR excl. VAT
7.70 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.84 EUR excl. VAT
158.32 EUR incl. VAT
Expected 5.3.2025
PCU5E-1YW-MS
0.58 EUR excl. VAT
0.70 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.48 EUR excl. VAT
4.21 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Frequency range [MHz]:
10308 - 10574
Channel bandwidth [MHz]:
7, 14, 28
Wireless frequency:
10 GHz
Transmission speed - 10GHz [Mb/s]:
182
Tx power 10GHz [dBm]:
4
Security:
WEP, WPA, WPA2
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
24V DC
Power type:
PoE
Max. power consumption [W]:
8
Physical characteristics
Purpose:
Outdoor
Operating temperature [°C]:
-40 up to 80
Weight [kg]:
1,2
Width [mm]:
170
Height [mm]:
250
Depth [mm]:
53
Hardware
CPU:
Atheros MIPS 24KC
CPU frequency [MHz]:
400
RAM [MB]:
64
Software
Management:
Web management, SSH
Operating system:
airOS
IPv6 support:
Transparent (bridge mode)
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Product description
PowerBridge M10 is a rugged, hi-power, 2x2 MIMO radio with enhanced receiver performance using the super-high 10 GHz radio frequency. It features incredible outputpower (4dBm) and breakthrough speed (150+Mbps real TCP/IP). Package contains only unit + feed + PoE without antenna.
Below is an example of how the PowerBridge M10 can be deployed
The PowerBridge®M10 is the ideal solution for crowded wireless environments. For more capacity and reliability, the 10 GHz licensed band has significantly less noise than the 2.4 and 5 GHz unlicensed bands.

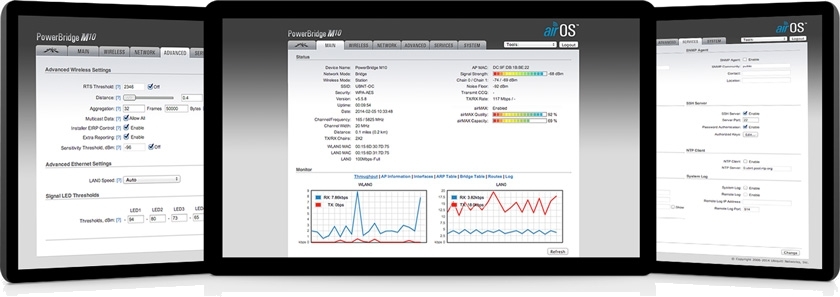

Ubiquiti’s versatile airOS® firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as custom wireless settings, bridge or routing configuration, and system management services.
Package contains
Download
CE Datasheet Firmware Měření ČTÚ - PBM10 Návod k použití PowerBridge M10 - NBOGPSR
