Ubiquiti PowerBeam M5 ISO 300mm, outdoor, 5GHz MIMO, 2x 22dBi, AirMAX ISO
Your price excl. VAT
76.55 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 76.62 EUR |
| Your price incl. VAT (21%) | 92.71 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
5 pcs.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10900160 | |
| Part No. | PBE-M5-300-ISO | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
22dBi
PBE-M5-300-ISO
76.55 EUR
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
PK35S421V100
12.46 EUR excl. VAT
15.08 EUR incl. VAT
In Stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
5 GHz
WiFi standards:
802.11n, 802.11a, airMAX
Transmission speed - 5GHz [Mb/s]:
300
Tx power 5GHz [dBm]:
24
Security:
WPA2 AES
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
22
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
24V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
6
Physical characteristics
Purpose:
Outdoor
Collar:
Yes
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Weight [g]:
2550
Width [mm]:
364
Height [mm]:
364
Depth [mm]:
276
Hardware
CPU:
MIPS 74Kc
CPU frequency [MHz]:
560
RAM [MB]:
64
Software
Operating mode:
Client, Repeater, AP Router, Access Point, Client Router (wisp)
IPv6 support:
Transparent (bridge mode)
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Video
Product description
Ubiquiti PBE-M5-300-ISO is a powerful completely outdoor unit including 2x 22dBi (2x2 MIMO) antennas for the 5GHz band as a PtP solution. The unit allows transmission speed up to 300Mbps.
Inside PowerBeam is a powerful MIPS processor Atheros 74KC with 560MHz frequency, 64MB RAM DDR2 memory and 8MB of Flash memory. Unit has also one ethernet port supports 10/100Mbps speed, and passive PoE 24V / 0.5A (802.3af PoE is not supported).
The integrated isolator design improves RF isolation to spatially filter out interference, and the metal-plated interior of the rear housing enhances RF shielding.
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in multipoint networks.

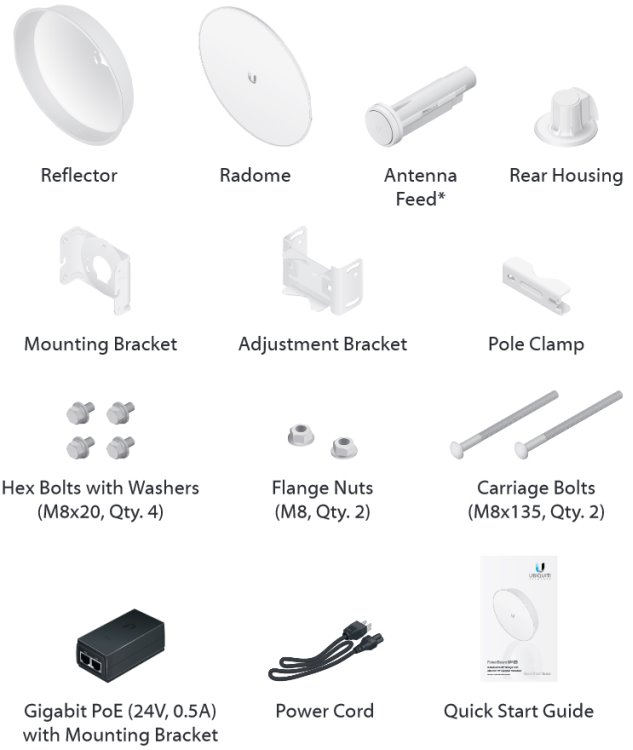

Package contains
