Ubiquiti PowerBeam 2AC-400, 2.4GHz MIMO, 18dBi
Your price excl. VAT
96.56 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 96.63 EUR |
| Your price incl. VAT (21%) | 116.92 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10901605 | |
| Part No. | PBE-2AC-400 | |
| Warranty | 24 months | |
ETH-SP-G2
9.89 EUR excl. VAT
12.05 EUR incl. VAT
In Stock
PK35S421V100
12.39 EUR excl. VAT
14.99 EUR incl. VAT
In Stock
CT-290-48-B
6.29 EUR excl. VAT
7.61 EUR incl. VAT
In Stock
OFTP5E24-MSC
129.36 EUR excl. VAT
156.53 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Sensitivity [dBm]:
-92
Maximum modulation:
256 QAM
Channel bandwidth [MHz]:
10, 20, 40
Wireless frequency:
2.4 GHz
WiFi standards:
airMAX ac
Transmission speed - 2.4GHz [Mb/s]:
433
Tx power 2.4GHz [dBm]:
27
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
18
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
24V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
7,5
Physical characteristics
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Weight [g]:
1795
Width [mm]:
420
Height [mm]:
420
Depth [mm]:
289
Hardware
CPU:
MIPS 74Kc
CPU frequency [MHz]:
560
RAM [MB]:
64
Software
Operating mode:
Client, Repeater, AP Router, Access Point, Client Router (wisp)
IPv6 support:
Yes
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Video
Product description
Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam® AC is ideal for CPE deployments requiring maximum performance.

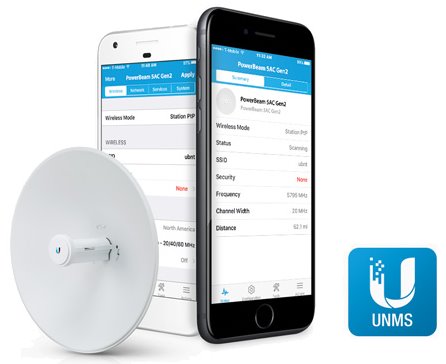

Management Wi-Fi Radio
The PowerBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Integrated Radio Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Plug and Play Installation
You only need one key for installation. Thanks to the button for releasing the radiator, its replacement is really easy. The holder allows elevation in the range of 20 ° up and down. Optionally available for purchase.
Package contains
