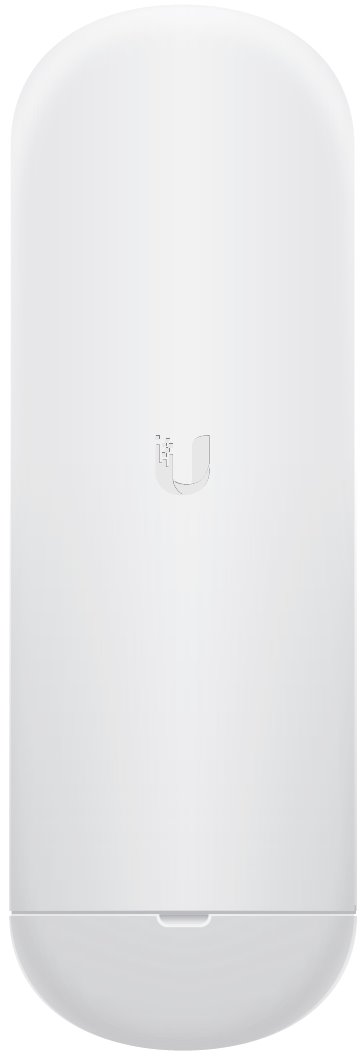

Ubiquiti NS-5AC, NanoStation 5AC
Your price excl. VAT
104.68 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 104.75 EUR |
| Your price incl. VAT (21%) | 126.75 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10901601 | |
| Part No. | NS-5AC | |
| Warranty | 24 months | |
ETH-SP-G2
9.93 EUR excl. VAT
12.10 EUR incl. VAT
In Stock
Quick-Mount
18.74 EUR excl. VAT
22.68 EUR incl. VAT
In Stock
PK35S421V100
10.29 EUR excl. VAT
12.45 EUR incl. VAT
In Stock
CT-290-48-B
6.34 EUR excl. VAT
7.67 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.32 EUR excl. VAT
157.69 EUR incl. VAT
Expected 5.3.2025
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
5 GHz
WiFi standards:
airMAX ac
Transmission speed - 5GHz [Mb/s]:
866
Tx power 5GHz [dBm]:
25
Security:
WPA2 AES
Elevation beam width (-6dB) [°]:
45
Azimuth beam width (-6dB) [°]:
45
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
16
Connectors and Interfaces
LAN speed:
(2) 10/100/1000Mbps
Gigabit LAN:
Yes
Other features:
WiFi management radio
Power
Power over Ethernet:
802.3af, 24V DC
PoE type:
PoE-Out + PoE-In
Max. power consumption [W]:
8,5
Physical characteristics
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Weight [g]:
233
Width [mm]:
84
Height [mm]:
257
Depth [mm]:
41
Hardware
CPU:
Atheros MIPS 74KC
CPU frequency [MHz]:
560
RAM [MB]:
64
Software
Operating mode:
Client, Repeater, AP Router, Access Point, Client Router (wisp)
IPv6 support:
Yes
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Video
Product description

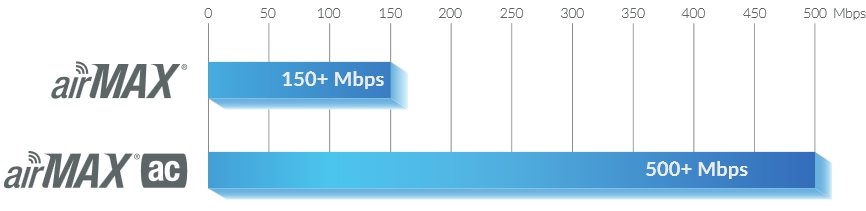

NanoStation 5AC is discreet, 16dBi airMAX ac outdoor CPE unit, with high speed throughput and stability connectivity in high interference environment. The unit is compatible only with another airMAX ac unit. Unit allows set wild width of bandwidth 10/20/30/40/50/60 and 80MHz with 256QAM modulation. Real throughput may achieves real bandwidth 450Mbps+...

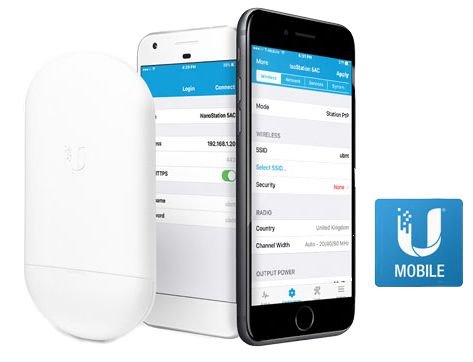

Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

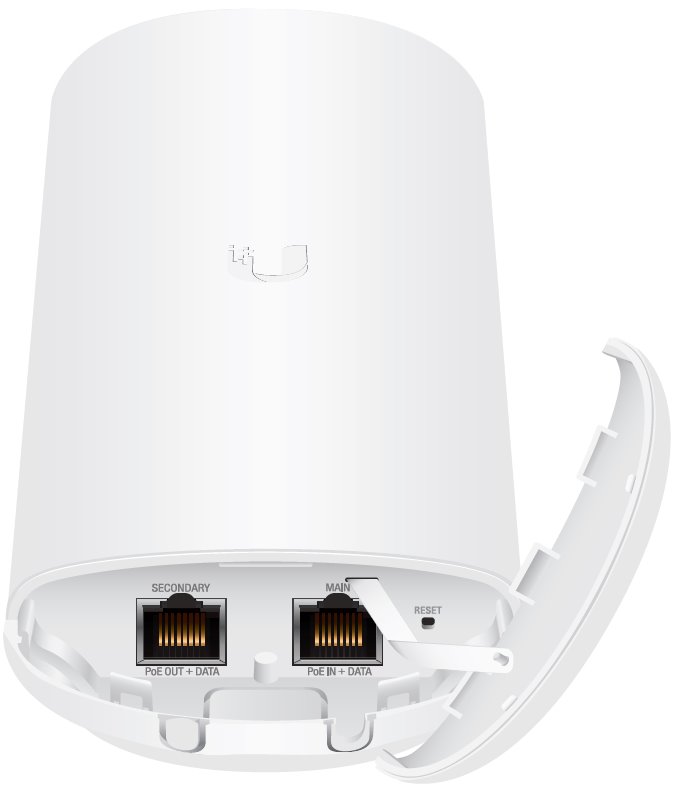

Dual Ethernet Connectivity

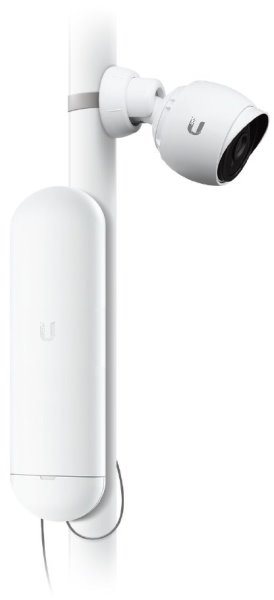

The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.

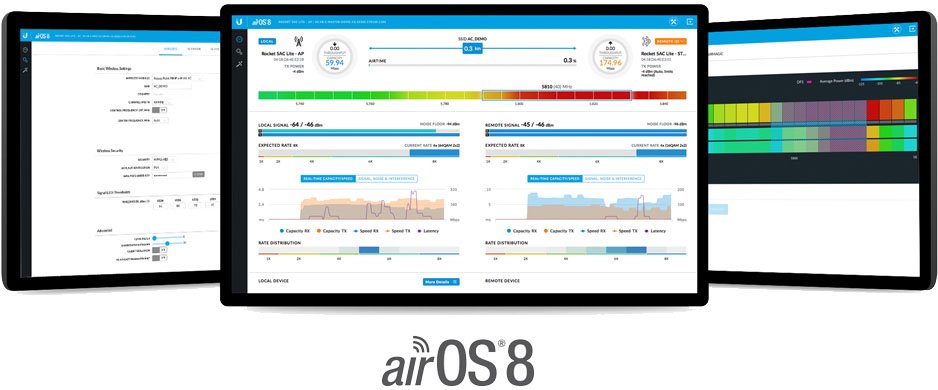

Now with airOS 8
airOS 8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

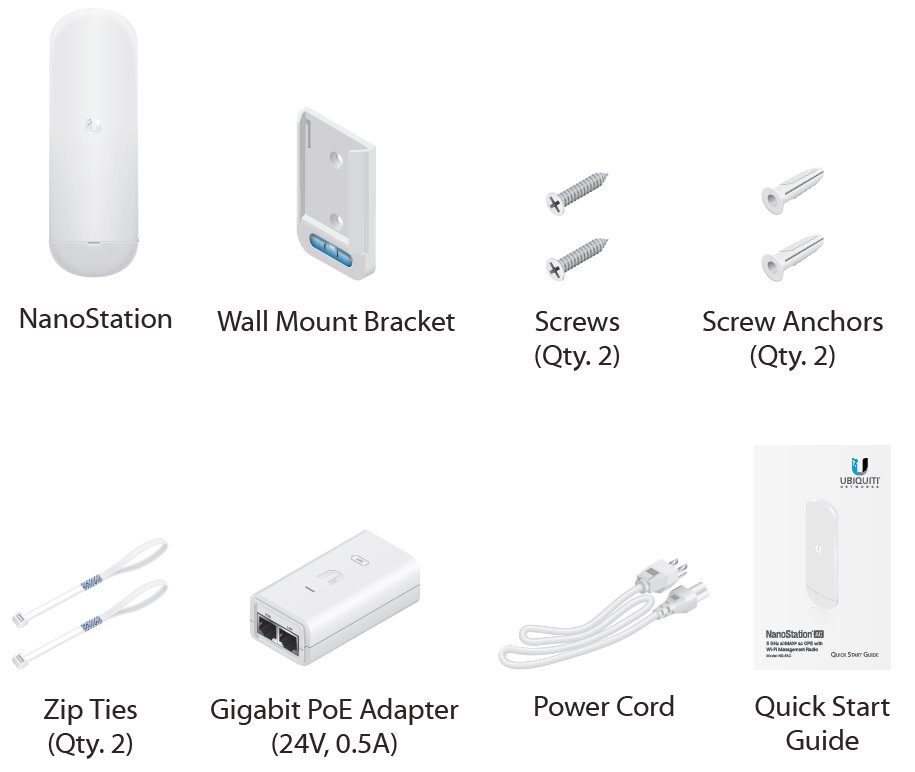

Package contains
