Ubiquiti Mobile Router Industrial
Your price excl. VAT
173.93 EUR
| Recycling fee | 0.16 EUR |
|---|---|
| Your price with RF | 174.09 EUR |
| Your price incl. VAT (21%) | 210.65 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10904319 | |
| Part No. | UMR-Industrial | |
| Warranty | 24 months | |
ETH-SP-G2
9.93 EUR excl. VAT
12.10 EUR incl. VAT
In Stock
CT-290-48-B
6.34 EUR excl. VAT
7.67 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.32 EUR excl. VAT
157.69 EUR incl. VAT
Expected 5.3.2025
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
WiFi standards:
802.11n, 802.11b/g
Tx power 2.4GHz [dBm]:
22
2.4GHz MIMO:
2 x 2
Type of antenna:
Detachable
Detachable antennas:
5
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(2) 1900 MHz, (4) 1700 MHz, (5) 850 MHz, (12) 700 MHz, (25) 1900 MHz, (26) 850 MHz, (71) 600 MHz, (13) 700 MHz, (14) 700 MHz
Connectors and Interfaces
LAN speed:
(2) 10/100/1000Mbps
Gigabit LAN:
Yes
SIM slot:
Yes
SIM slots quantity:
1
GPS modul:
Yes
Power
Power over Ethernet:
802.3af
PoE type:
PoE-Out + PoE-In
Max. power consumption [W]:
12,5
Power via connector/terminal:
5V / 3A, 9 .. 30V DC
Physical characteristics
Protection class:
IP66
Design:
On the wall, On the mast, DIN rail
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Weight [g]:
395
Width [mm]:
94
Height [mm]:
217
Depth [mm]:
32
Software
Operating mode:
Cellular router
Default IP address:
Dynamic from DHCP
Default login and password:
Is set by the user at the first startup
Product description
The Ubiquiti UniFi Mobile Router Industrial is a compact and rugged LTE Cat4 mobile WiFi router, ideal for both indoor and outdoor IoT installations. With centralized management through the UniFi Network app, setup is easier than ever, and for example, you can configure a Site-to-Site VPN in just a few clicks.

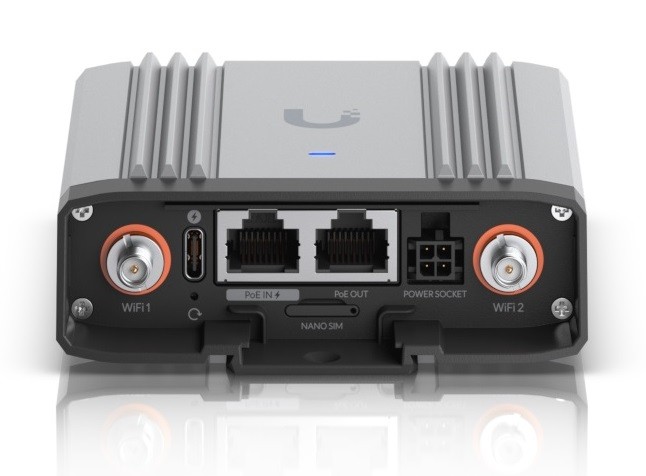

The router offers (2) 1 Gbps Ethernet ports, where port 1 supports input PoE for powering the router, and port 2 supports output PoE for powering another device. For connecting additional peripherals, you can also use the 2.4 GHz 2x2 MIMO WiFi 802.11b/g/n with a transmit power of up to 22 dBm. Two removable antennas on the top ensure a strong mobile network reception, while a third antenna is used for high-quality GPS signal reception. The pair of antennas on the bottom are used for local wireless connectivity.
One of the advantages of this mobile router is its wide range of input power options. In addition to PoE, you can use a USB-C connector with a 5V voltage or a 4-pin connector with a voltage range of 9 - 30V.
Package Contents
