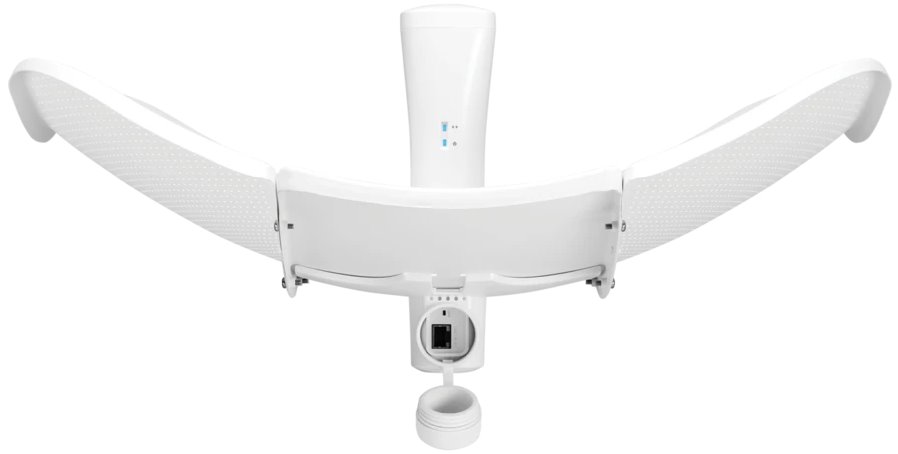

Ubiquiti LTU-LR, 5GHz LTU, Long Range CPE
Your price excl. VAT
120.98 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 121.05 EUR |
| Your price incl. VAT (21%) | 146.47 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10901867 | |
| Part No. | LTU-LR | |
| Warranty | 24 months | |
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
PK35S421V100
12.46 EUR excl. VAT
15.08 EUR incl. VAT
In Stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Maximum modulation:
1024 QAM
Wireless frequency:
5 GHz
WiFi standards:
LTU
Tx power 5GHz [dBm]:
22
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
26
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
22 .. 26V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
8,5
Physical characteristics
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 60
Weight [g]:
1360
Width [mm]:
513
Height [mm]:
386
Depth [mm]:
258
Software
Operating mode:
Client, Client Router (wisp)
Operating system:
airOS LTU
IPv6 support:
Yes
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Product description

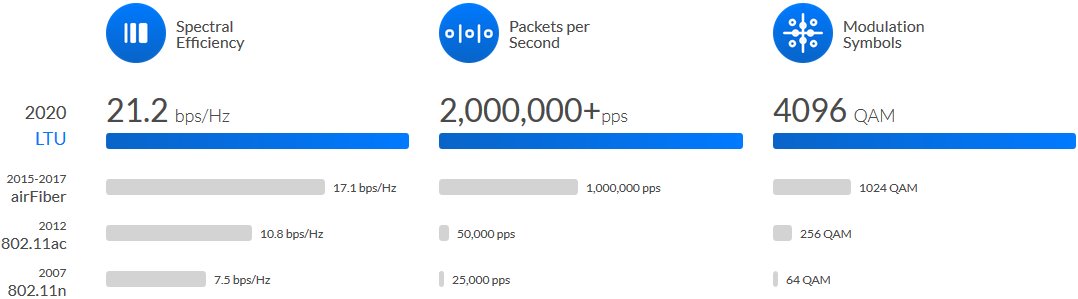

LTU-LR is a PtMP CPE unit for the 5GHz band with 26dBi antenna gain and proprietary LTU wireless technology that is not based on the 802.11 standard protocol can deliver real TCP/IP speeds 600Mbps+ (up to 1Gbps+ with future fw), modulation up to 1025 QAM (up to 4096 QAM with future fw) and higher spectral efficiency 21.2 bps/Hz, twice the 802.11AC standard!
Features
Frequency Split
LTU technology allows you to set different transmission (Tx) and receive (Rx) frequencies to avoid interference, increasing your network's throughput.
Compatibility
LTU is a completely new platform based on proprietary technology, which doesn't use 802.11 protocol, making it incompatible with 802.11n and 802.11ac devices. For that reason it is NOT compatible with airMAX M5 nor with airMAX 5AC.
Software
In addition to its own web management, LTU products are also supported by UNMS software for central management and management of Ubiquiti devices.
