Ubiquiti LTU-Instant-5, UISP LTU Instant, 5-pack
Ubiquiti LTU-Instant-5, UISP LTU Instant, 5-pack
×
0/0
Your price excl. VAT
307.47 EUR
| Recycling fee | 0.34 EUR |
|---|---|
| Your price with RF | 307.81 EUR |
| Your price incl. VAT (21%) | 372.45 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10903484 | |
| Part No. | LTU-Instant-5 | |
| Warranty | 24 months | |
ETH-SP-G2
9.93 EUR excl. VAT
12.10 EUR incl. VAT
In Stock
LBE-5AC-Gen2-5
264.50 EUR excl. VAT
320.46 EUR incl. VAT
Ordered, unknown date
LBE-5AC-Gen2
54.02 EUR excl. VAT
65.45 EUR incl. VAT
In Stock
PK35S421V100
10.29 EUR excl. VAT
12.45 EUR incl. VAT
In Stock
CT-290-48-B
6.34 EUR excl. VAT
7.67 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.32 EUR excl. VAT
157.69 EUR incl. VAT
Expected 5.3.2025
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Maximum modulation:
1024 QAM
Wireless frequency:
5 GHz
WiFi standards:
LTU
Tx power 5GHz [dBm]:
22
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
22
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
22 .. 26V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
8,5
Physical characteristics
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 60
Weight [g]:
215
Width [mm]:
64
Height [mm]:
56
Depth [mm]:
201
Software
Operating mode:
Client, Client Router (wisp)
Operating system:
airOS LTU
IPv6 support:
Yes
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Product description

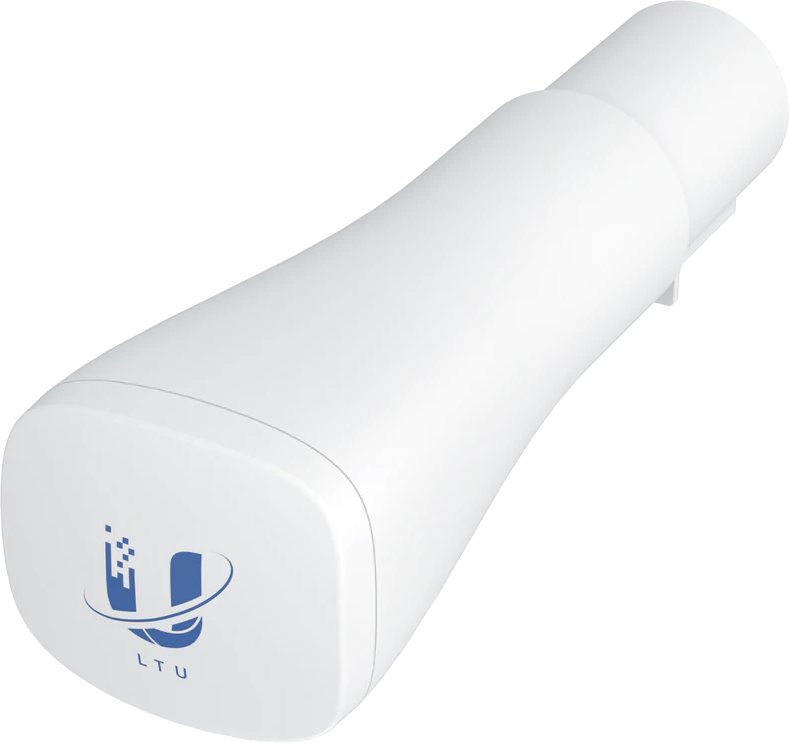

LTU-Instant-5 is a set of five LTU heads for upgrading the LBE-5AC-Gen2 from AC to LTU. It is a PtMP client unit for the 5GHz band with an antenna gain of 22 dBi (used with LBE-5AC-Gen2) and LTU's proprietary wireless technology, which is not built on the limited 802.11 standard, thus achieving real TCP/IP speed of 550 Mbps+, modulation up to 1024 QAM and higher spectral efficiency 21.2 bps/Hz, which is double compared to the 802.11AC standard!
Functions
Option to set different Tx and Rx frequency
LTU technology allows you to use different frequencies for transmit (Tx) and receive (Rx) to avoid interference, thus increasing the throughput of your network.
Compatibility
LTU is a completely new platform based on proprietary technology that does not use the 802.11 protocol. It is not compatible with devices from the airMAX M5 or airMAX 5AC series. On the other hand, although LTU is based on the technology used by airFiber products, they use a different protocol for communication, so LTU products are not compatible with AF-5X or AF-5/5U products either.
Software
In addition to their own web management, LTU products are also supported by UISP software for central control and management of Ubiquiti devices.

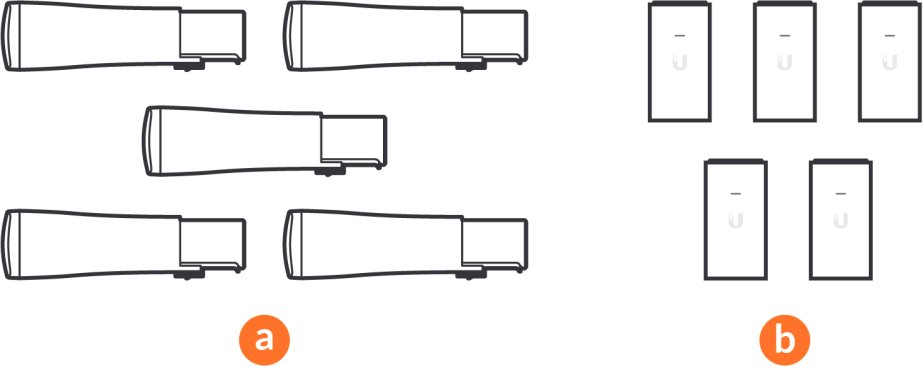

Package contents
Download
Datasheet Installation GuideGPSR
