Ubiquiti LocoM9, NanoStation Loco M9
We are sorry, this product is no longer in our offer.
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Tx power [dBm]:
28
Wireless frequency:
900 MHz
WiFi standards:
airMAX
Transmission speed - 900MHz [Mb/s]:
300
Security:
WPA2 AES
Elevation beam width (-6dB) [°]:
60
Azimuth beam width (-6dB) [°]:
60
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
8
Connectors and Interfaces

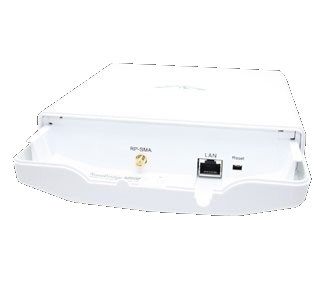

RF connectors:
(1) RSMA female
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
24V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
6,5
Physical characteristics
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-30 up to 75
Weight [g]:
900
Width [mm]:
164
Height [mm]:
199
Depth [mm]:
72
Hardware
CPU:
Atheros MIPS 24KC
CPU frequency [MHz]:
400
RAM [MB]:
64
Software
Operating mode:
Client, Repeater, AP Router, Access Point, Client Router (wisp)
IPv6 support:
Transparent (bridge mode)
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Video
Product description

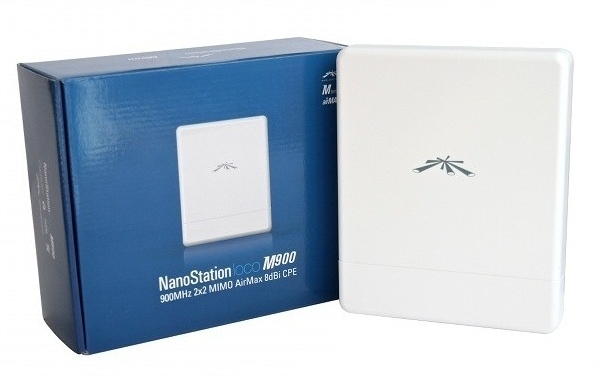

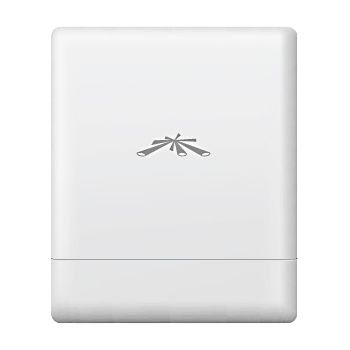

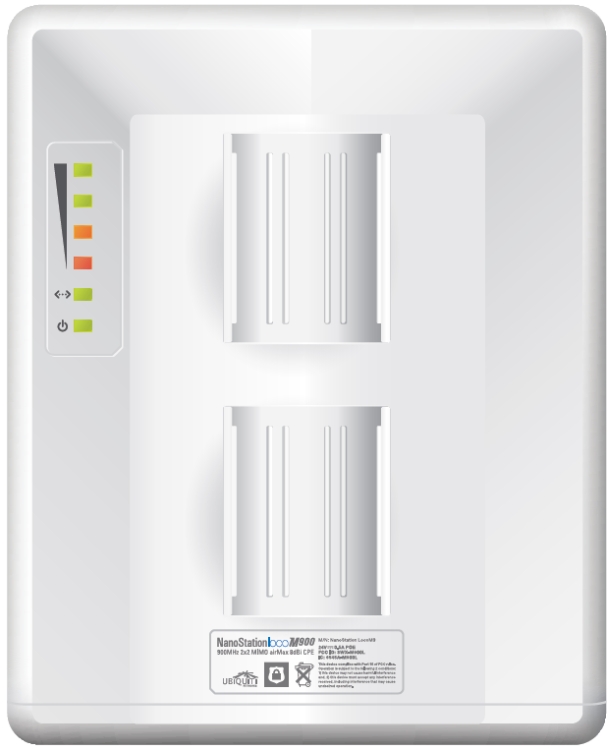

UBNT NanoStation Loco M9 is a powerful completely outdoor unit including 2x 8dBi (2x2 MIMO) antennas for the 900MHz band as a CPE solution suitable for shorter distances. The unit allows transmission speed up to 300Mbps.

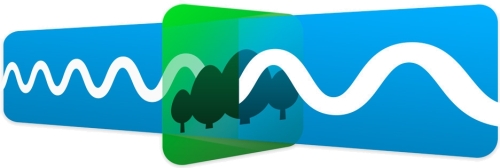

900MHz band is better than higher frequency bands in Non-Line-of-Sight (NLOS) applications.
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in multipoint networks.
Package contains
Download
Datasheet Firmware Návod k použití Quick Start GuideTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
