Ubiquiti LiteAP 5AC-17-90 GPS, LAP-GPS, 90°
Your price excl. VAT
82.57 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 82.64 EUR |
| Your price incl. VAT (21%) | 99.99 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10901786 | |
| Part No. | LAP-GPS | |
| Warranty | 24 months | |
ETH-SP-G2
9.93 EUR excl. VAT
12.10 EUR incl. VAT
In Stock
PK35S421V100
10.33 EUR excl. VAT
12.50 EUR incl. VAT
In Stock
CT-290-48-B
6.36 EUR excl. VAT
7.70 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.84 EUR excl. VAT
158.32 EUR incl. VAT
Expected 5.3.2025
PCU5E-1YW-MS
0.58 EUR excl. VAT
0.70 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.48 EUR excl. VAT
4.21 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
5 GHz
WiFi standards:
airMAX ac
Transmission speed - 5GHz [Mb/s]:
866
Tx power 5GHz [dBm]:
25
Security:
WPA2 AES
Elevation beam width (-6dB) [°]:
15
Azimuth beam width (-6dB) [°]:
90
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
17
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
GPS modul:
Yes
Other features:
WiFi management radio
Power
Power over Ethernet:
24V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
7,1
Physical characteristics
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Weight [g]:
752
Width [mm]:
125
Height [mm]:
361
Depth [mm]:
71
Hardware
CPU:
MIPS 74Kc
Software
Operating mode:
AP Router, Access Point, Client, Client Router (wisp)
IPv6 support:
Transparent (bridge mode)
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Video
Product description

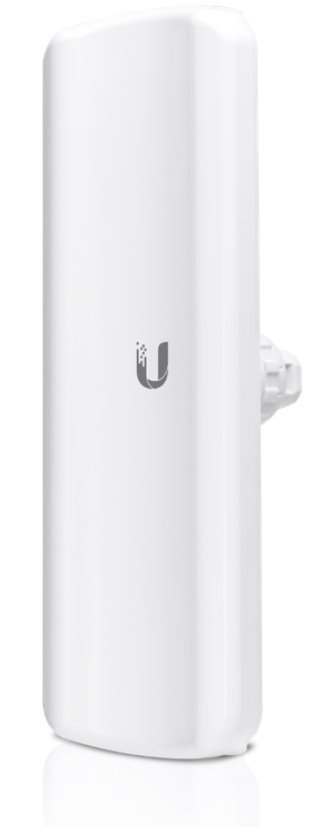

LiteBeam 5AC-17-90 GPS is Base Station unit with Gigabit LAN port, integrated 17dBi and sector antenna with 90° beam angle. Unit is compatible only with airMAX AC CPE units and is designed for outdoor usage.
Thanks to the possible setting of the channel width 20/40/50/60 and 80MHz , real throughput of up to 450Mbps + can be achieved when using 256QAM ...

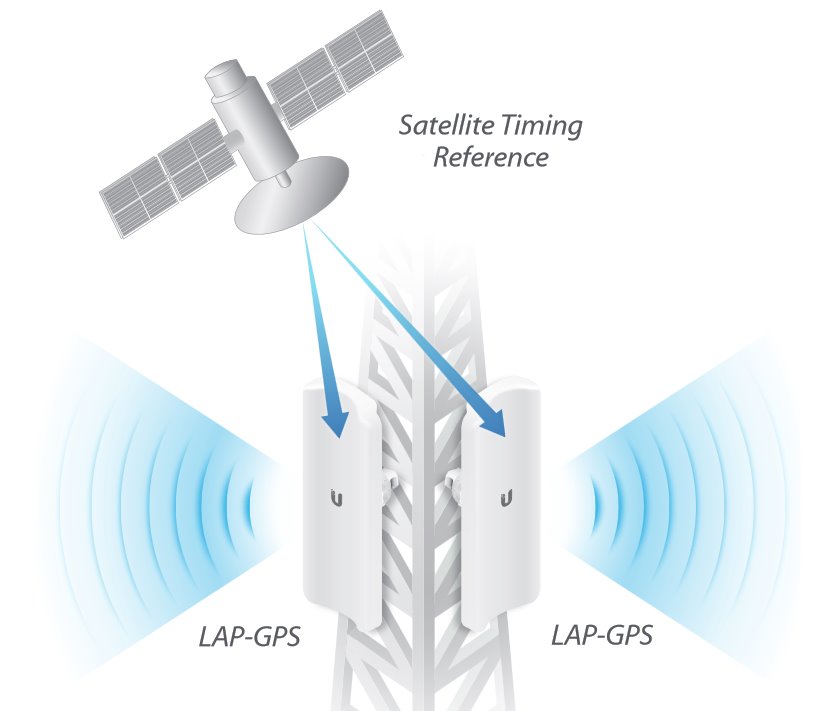

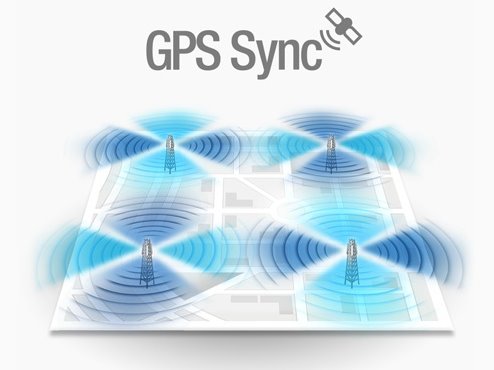

GPS Synchronization
LiteAPTM GPS supports GPS Sync for faster, more scalable, carrier-class networks, with higher throughout than competing solutions. GPS sync with airMAX AC delivers over 90% higher throughput than competing synchronized systems.

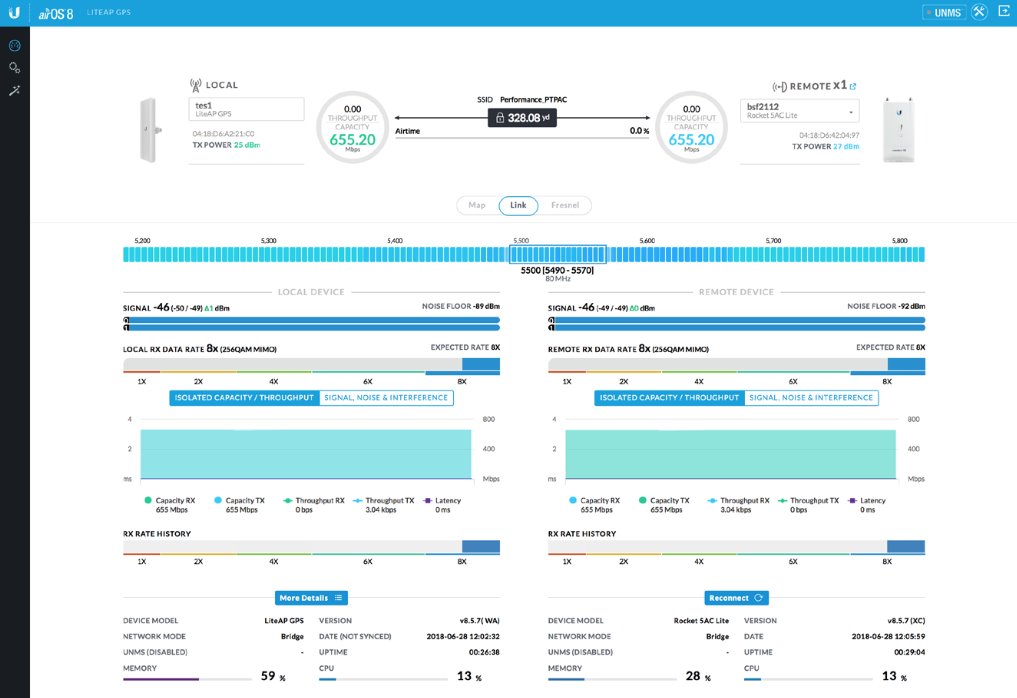

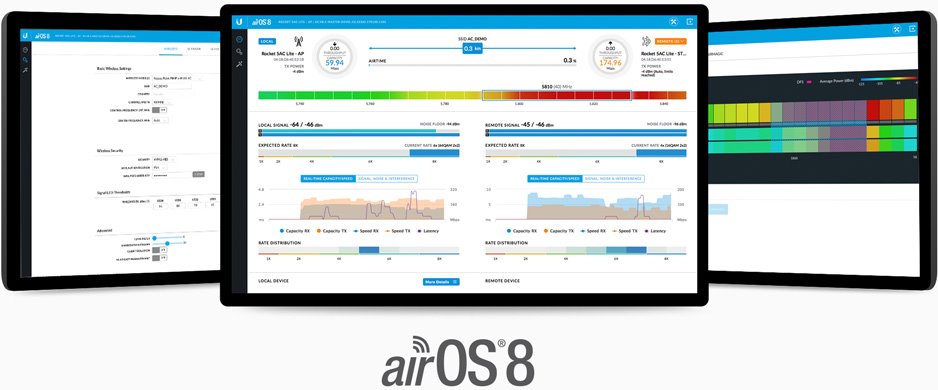

airOS 8
AirOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

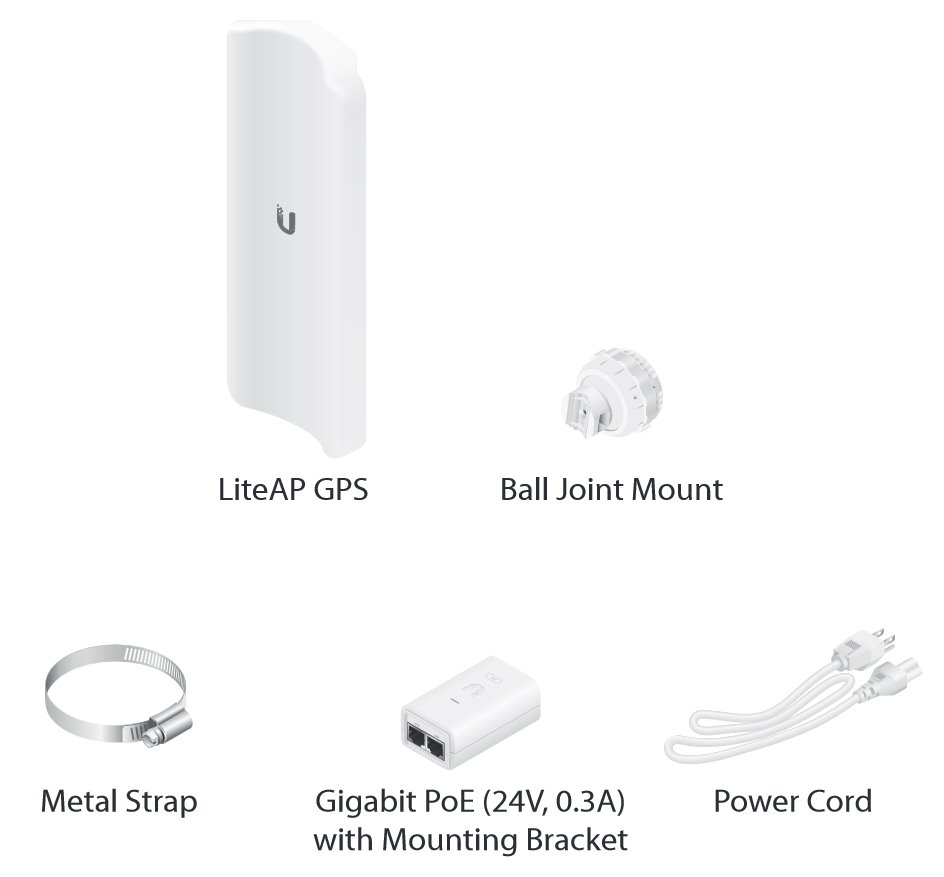

Package contains
Download
airOS Quick Guide Datasheet Quick GuideGPSR
