Ubiquiti LBE-5AC-XR - UISP LiteBeam AC 5 GHz XR
Your price excl. VAT
115.64 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 115.71 EUR |
| Your price incl. VAT (21%) | 140.01 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10903471 | |
| Part No. | LBE-5AC-XR | |
| Warranty | 24 months | |
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
PK35S421V100
12.46 EUR excl. VAT
15.08 EUR incl. VAT
In Stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Frequency range [MHz]:
5150 - 5850
Wireless frequency:
5 GHz
WiFi standards:
airMAX ac
Transmission speed - 5GHz [Mb/s]:
866
Tx power 5GHz [dBm]:
25
Security:
WPA2-PSK AES/TKIP
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
29
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
GPS modul:
Yes
Other features:
WiFi management radio
Power
Power over Ethernet:
22 .. 26V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
7
Physical characteristics
Protection class:
IPX6
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Weight [g]:
3200
Width [mm]:
747
Height [mm]:
525
Depth [mm]:
347
Software
Operating mode:
Client, AP Router, Access Point, Client Router (wisp)
Management:
Web management, UISP application, SSH
IPv6 support:
Transparent (bridge mode)
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Product description

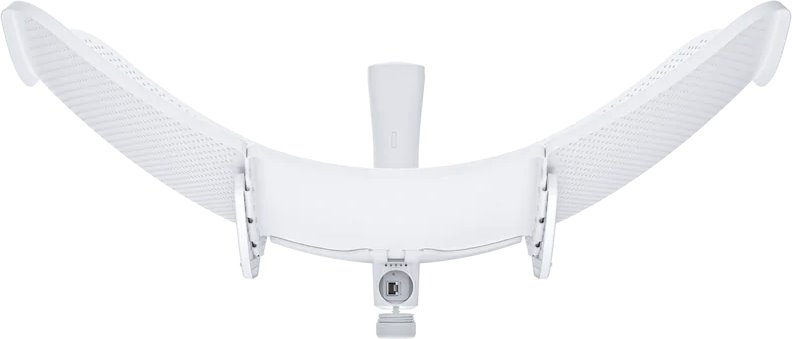

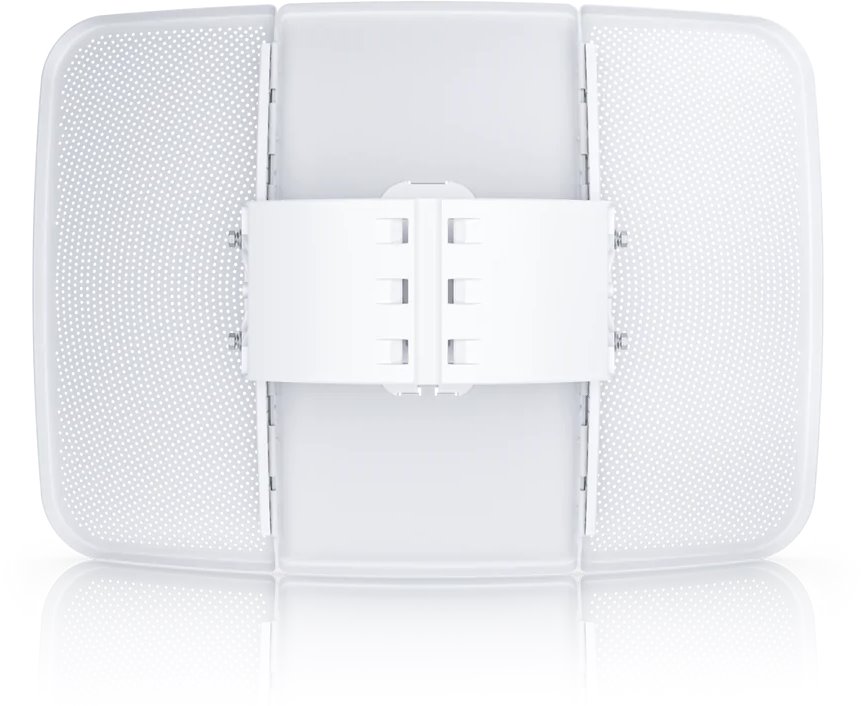

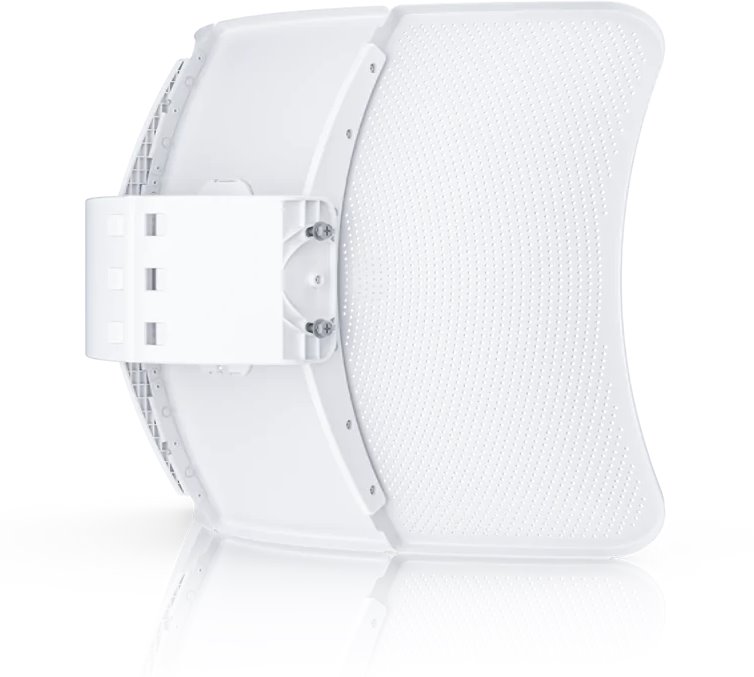

LiteBeam 5AC-XR is a 2×2 MIMO AC series client station with airMAX TDMA for the 5GHz band. This unit has a higher antenna gain of 29 dBi and a GPS module for time synchronization which is useful when building links over longer distances distance. The unit reaches a transmission speed of up to 867 Mbps on the wireless part, with a channel width of 80 MHz and is compatible only with other airMAX AC products. The antenna is designed for outdoor use with a very good price/performance ratio in the 5GHz band, it has Gigabit Ethernet with passive PoE support and 2.4 GHz radio management for setting directly from the mast.
Key Features
Package contents
Download
Datasheet Installation GuideGPSR
