Ubiquiti LBE-5AC-23, outdoor, 5GHz LiteBeamAC CPE with 23dBi antenna
We are sorry, this product is no longer in our offer.
Ubiquiti LBE-5AC-23, outdoor, 5GHz LiteBeamAC CPE with 23dBi antenna
×
0/0
Sale
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.70 EUR excl. VAT
4.48 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
5 GHz
WiFi standards:
airMAX ac
Transmission speed - 5GHz [Mb/s]:
866
Tx power 5GHz [dBm]:
24
Security:
WPA2 AES
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
23
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
24V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
7
Physical characteristics
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Weight [g]:
907
Width [mm]:
362
Height [mm]:
273
Depth [mm]:
203
Hardware
RAM [MB]:
64
Software
Operating mode:
Client, AP Router, Access Point, Client Router (wisp)
IPv6 support:
Transparent (bridge mode)
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Product description

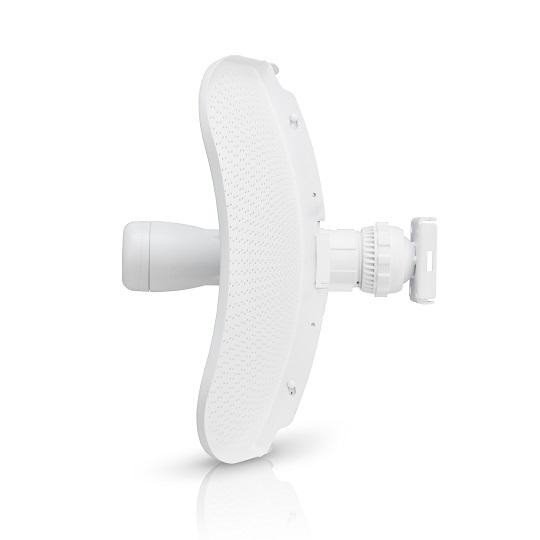

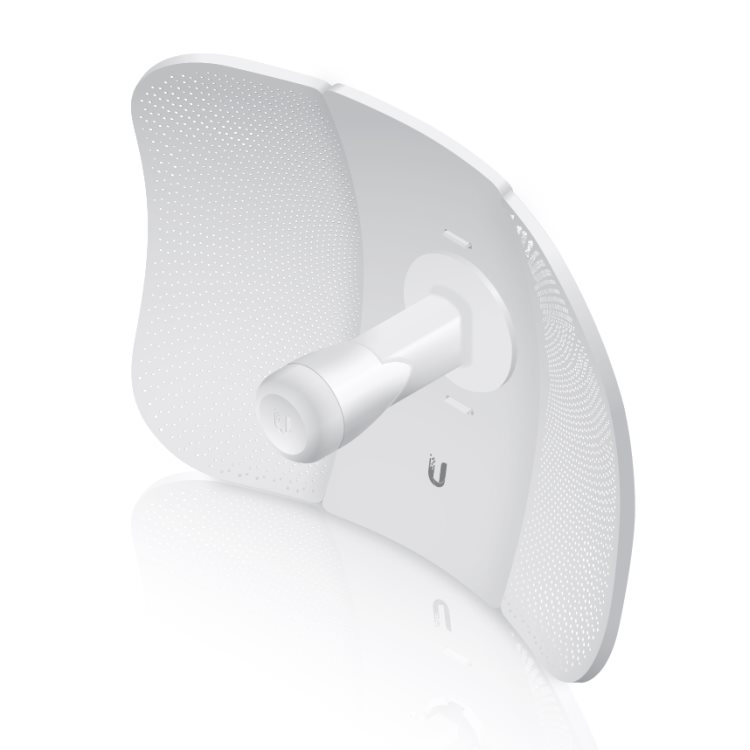

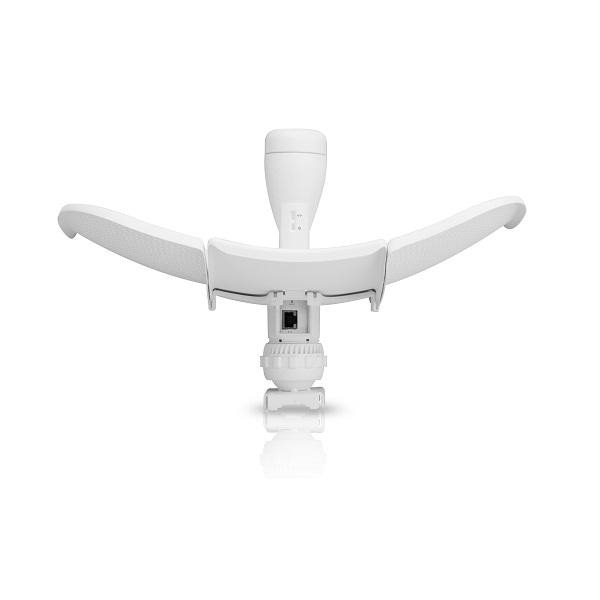

LiteBeam 5AC-23 is 5GHz 2x2 MIMO CPE station device from airMAX AC family with 23dBi gain and 867 Mbps transmission speed. The unit is compatible only with other airMAX AC products.
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance. airOS®7 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

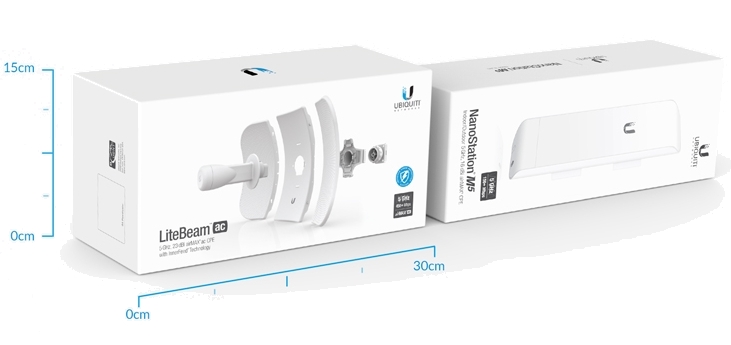

A lightweight form factor contained within ultra-compact packaging, the LiteBeam ac is ideal for shipping and logistics.
New for all airMAX AC products is a new operating system AirOS 7. This system shows constellation diagram and SNR in real time.

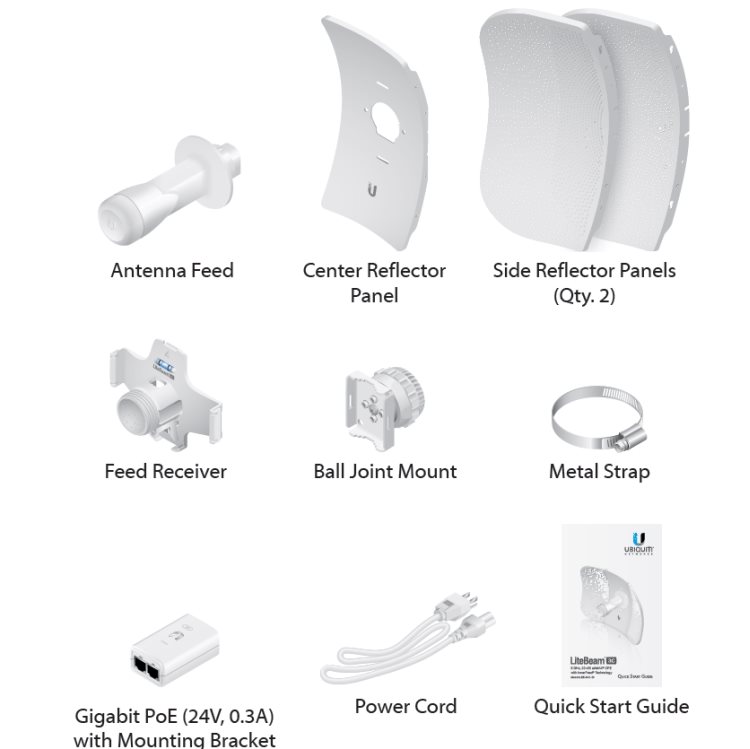

Package contains
Download
Datasheets Návod k použití Quick Start GuideGPSR
Ubiquiti International Holding B.V.
Ekkersrijt 3102, 5692 CC Son en Breugel
support@ui.com
Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
