Ubiquiti ES-24-LITE, EdgeSwitch ES-24-Lite
Ubiquiti ES-24-LITE, EdgeSwitch ES-24-Lite
×
0/0
Temporarily unorderable
Your price excl. VAT
176.39 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 176.46 EUR |
| Your price incl. VAT (21%) | 213.52 EUR |
| blank |
Availability
at our branches
at our branches
Ordering from the internet is not permitted. For more information, please contact our sales department.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10410081 | |
| Part No. | ES-24-LITE | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(24) 10/100/1000Mbps
Optical interfaces:
(2) 1000Mbps
Serial port:
RJ45
Power
Power type:
DC connector, Mains power (230V)
Redundant power supply:
Yes
Max. power consumption [W]:
25
Power via connector/terminal:
230V AC, 16 .. 25V DC
Physical characteristics
Design:
Rackmount
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-5 up to 40
Width [mm]:
440
Height [mm]:
43
Depth [mm]:
221
General
Switchning capacity [Gbps]:
26
MAC address table:
16000
Packet forwarding rate [Mpps]:
38,69
Software
Web management:
Yes
Management:
Web management, SSH, Telnet
Features:
L3, VLAN, QoS, DHCP snooping
Default IP address:
192.168.1.2
Default login and password:
ubnt / ubnt
Product description

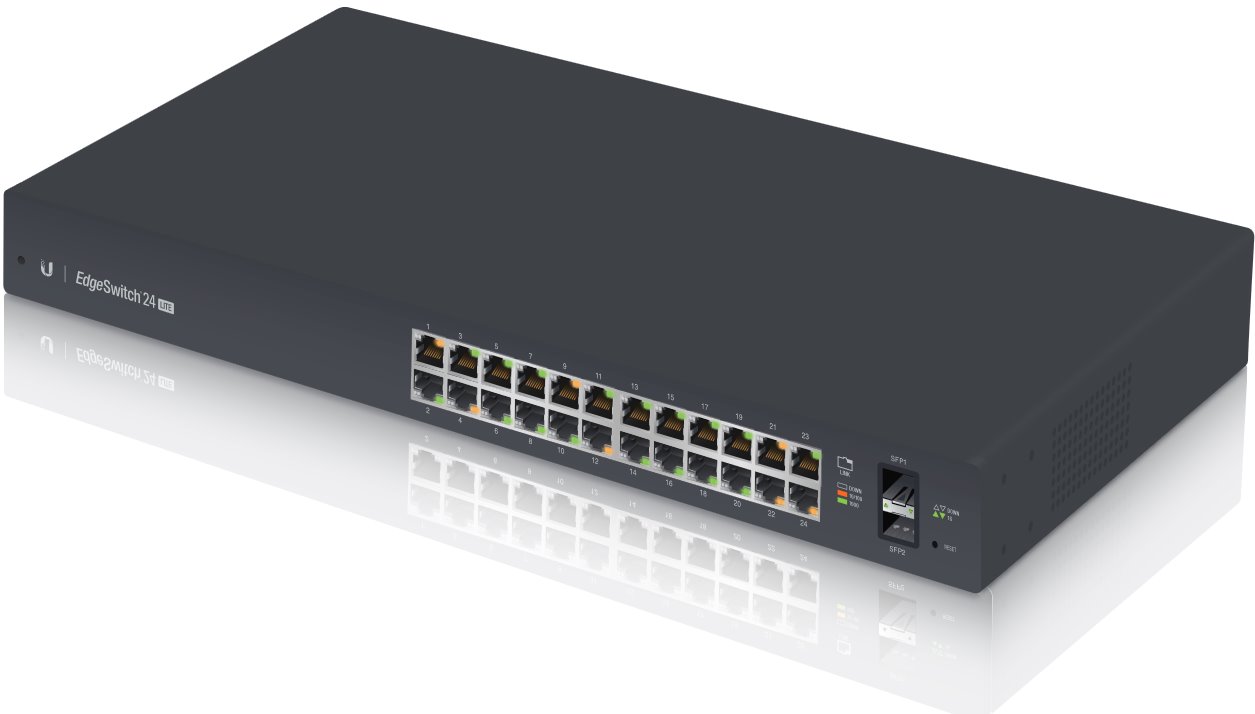

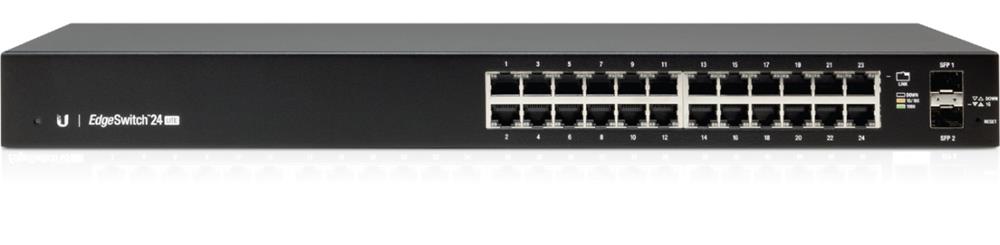

Ubiquiti EdgeSwitch ES-24-Lite Gigabit L2 switch in 19" rackmount design, L3 routing functions and maximum power consumption of 25W . Manageable switch with 24 Gigabit copper ports + 2 Gigabit SFP ports and total throughput of 52Gbps.
Quiet operation and redundant power supply

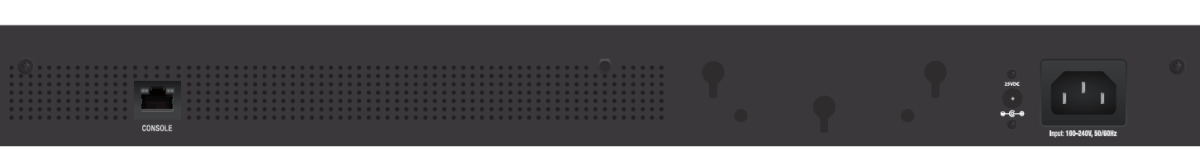

The great advantages of the switch are quiet operation, since it does not include any fan and the possibility of redundant power via direct DC power connector. Switch supports power supply over 230V AC and through DC connector with variable power supply from 16 to 25V.
Advanced Management
Thanks to the highly sophisticated EdgeOS operating system, it is possible to use basic switch functions and advanced features such as VLAN configuration, RSTP, Link aggregation, DHCP snooping, RADIUS authentication and routing.

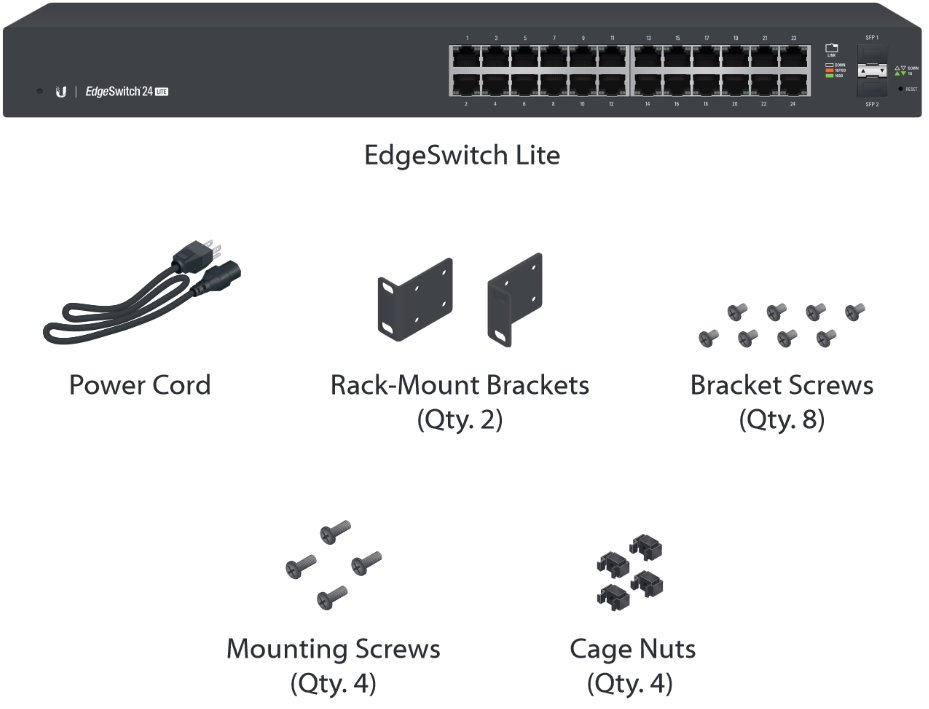

Package contains
Download
Admin Guide Datasheet Latest Firmware Quick Guide SFP compatible listGPSR
