Ubiquiti ES-12F EdgeSwitch Fiber, 12x SFP, 4x GLAN
Ubiquiti ES-12F EdgeSwitch Fiber, 12x SFP, 4x GLAN
×
0/0
Temporarily unorderable
Your price excl. VAT
177.51 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 177.58 EUR |
| Your price incl. VAT (21%) | 214.87 EUR |
| blank |
Availability
at our branches
at our branches
Ordering from the internet is not permitted. For more information, please contact our sales department.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10410127 | |
| Part No. | ES-12F | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(4) 10/100/1000Mbps
Optical interfaces:
(12) 1000Mbps
Serial port:
RJ45
Power
Power type:
DC connector, Mains power (230V)
Redundant power supply:
Yes
Max. power consumption [W]:
56
Power via connector/terminal:
16 .. 25V DC, 230V AC
Physical characteristics
Design:
Rackmount
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-5 up to 40
Width [mm]:
443
Height [mm]:
43
Depth [mm]:
221
General
Switchning capacity [Gbps]:
32
MAC address table:
16000
Packet forwarding rate [Mpps]:
23,8
Software
Web management:
Yes
Management:
Web management, SSH, Telnet
Features:
VLAN, QoS, DHCP snooping, L3
Default IP address:
192.168.1.2
Default login and password:
ubnt / ubnt
Product description

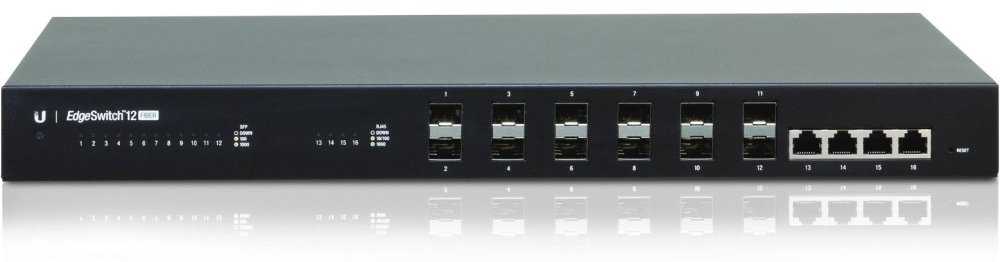

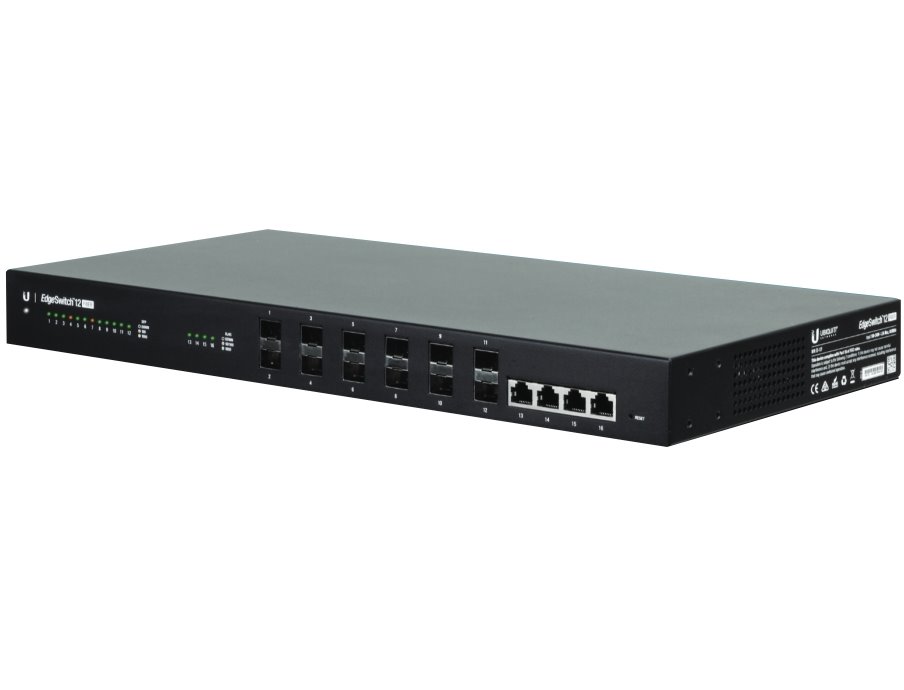

Gigabit L2 switch Ubiquiti EdgeSwitch ES-12F in 19" rackmount design, L3 routing functions and s maximum 56W consumption. EdgeSwitch ES-12F je fully managable switch with 4x GLAN + 12x SFP ports and total throughput 32Gbps. From 8 of 12 SFP slots supports slower 100Mbps SFP modules.
Redundant power supply
The great advantages of the switch are quiet operation, since it does not include any fan and the possibility of redundant power via direct DC power connector. Switch supports power supply over 230V AC and through DC connector with variable power supply from 16 to 25V.
Advanced management
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface. The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including: MSTP/RSTP/STP, VLAN, Link Aggregation, DHCP snooping, RADIUS, 802.1X and much more.
Package contains
Download
Admin Guide Datasheet Latest Firmware SFP compatible listGPSR
