Ubiquiti EP-R8, EdgePoint WISP router, 8-port
Ubiquiti EP-R8, EdgePoint WISP router, 8-port
×
0/0
Temporarily unorderable
Your price excl. VAT
387.22 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 387.29 EUR |
| Your price incl. VAT (21%) | 468.62 EUR |
| blank |
Availability
at our branches
at our branches
Ordering from the internet is not permitted. For more information, please contact our sales department.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10410125 | |
| Part No. | EP-R8 | |
| Warranty | 24 months | |
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
Multiple WAN:
Yes
LAN speed:
(8) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(2) 1000Mbps Combo
Serial port:
RJ45
Power
Power type:
PoE, DC terminal
Max. power consumption [W]:
40
Power via connector/terminal:
42 .. 56V DC
Physical characteristics
Design:
Outdoor
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-40 up to 65
Width [mm]:
327
Height [mm]:
383
Depth [mm]:
89
Hardware
CPU:
MIPS64 with Hardware Acceleration for Packet Processing
CPU frequency [MHz]:
600
CPU cores:
2
RAM [MB]:
2048
Software
Supported VPN:
PPTP, L2TP, IPSec, OpenVPN
Management:
Web management
Operating system:
EdgeOS
IPv6 support:
Yes
Default IP address:
192.168.1.1
Default login and password:
ubnt / ubnt
Product description

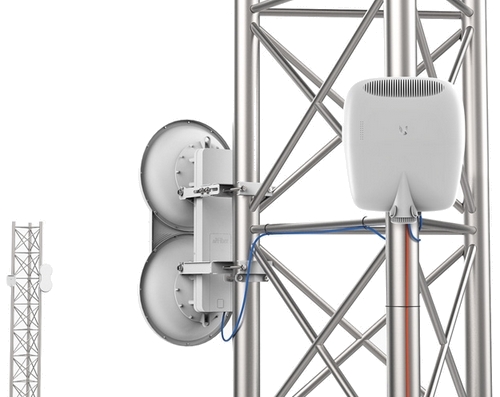

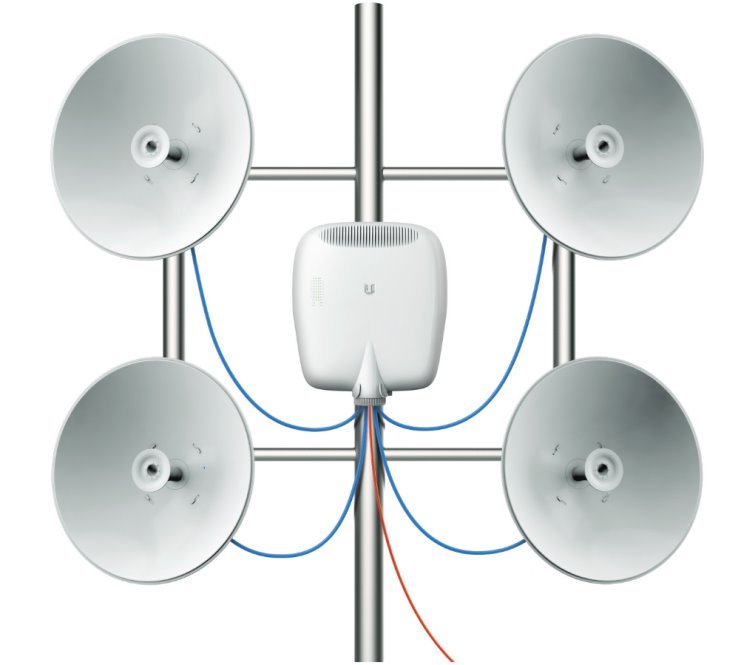

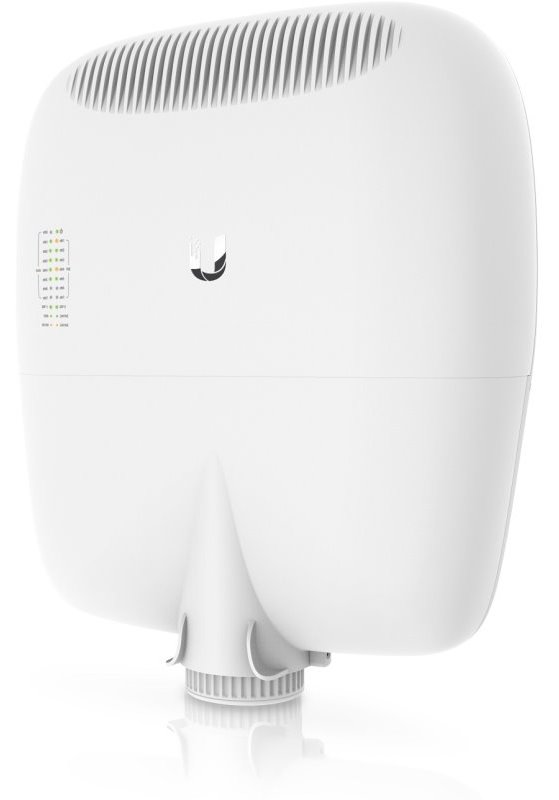

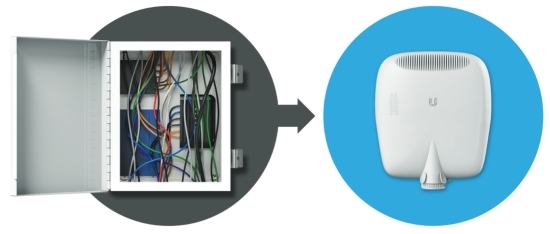

EdgePoint EP-R8 from Ubiquiti is a Gigabit Router in an outdoor design with output POE support on 7 Ethernet ports, a power-only POE port and one GLAN port without POE. Thanks to this product, you will no longer have to pull cables from the roof to the lower floors for each active element separately, or come up with a complex solution including an outdoor switchboard, switch installation, power supply and POE. You now have all in one .
Equipment

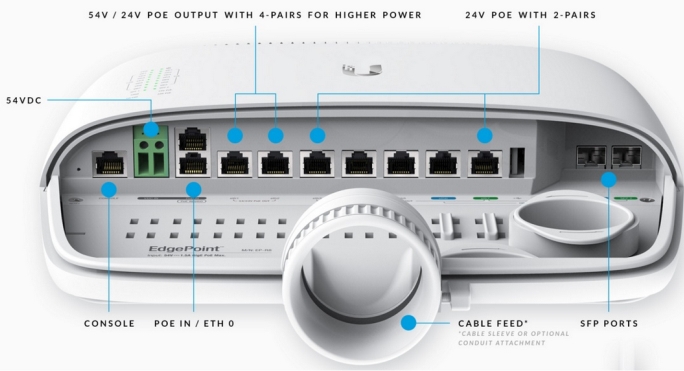

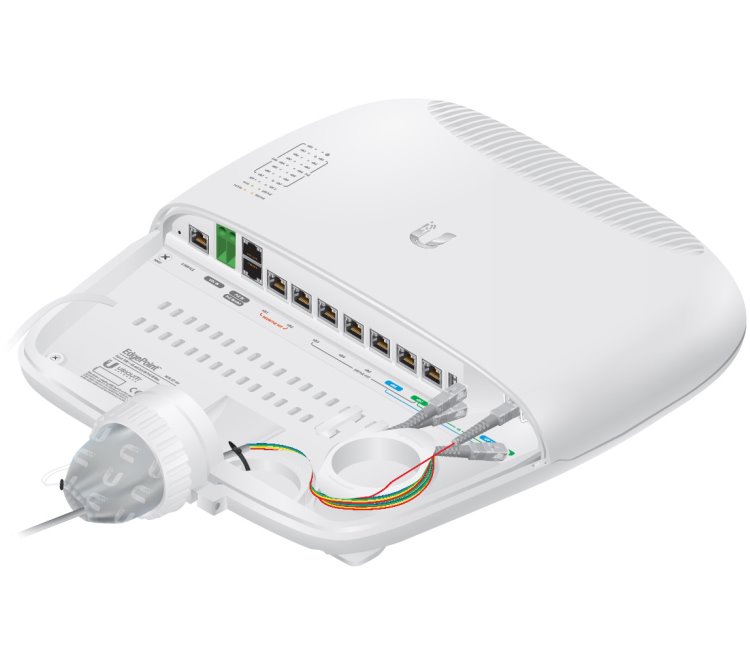

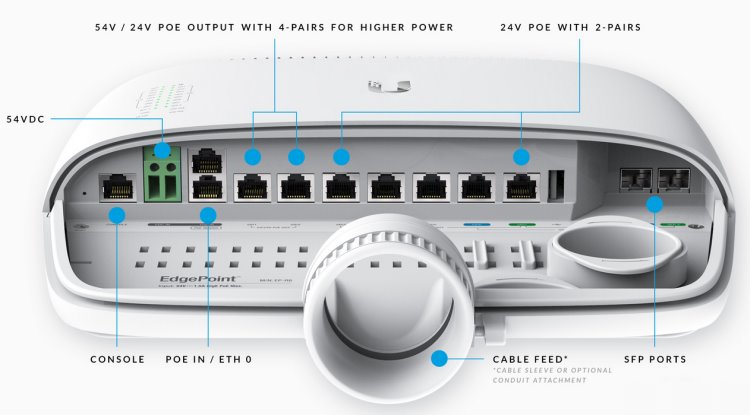

In terms of connectors and interfaces, the device contains (8) 10/100/1000Mbps Ethernet ports, 7 of them with POE Out support, (2) SFP combo 1Gbps ports and DC terminal block for direct power connection. The whole device is powered by a dual-core processor with 600MHz, 2GB RAM and internal storage of 4GB.
Power over ethernet - IN and OUT
POE IN - Ethernet power for the EdgePoint ER-R8 has its limits, and it is recommended to use DC terminal power for multiple connected devices. If you need power over Ethernet, there is a dedicated port labeled "POE IN" , which is dedicated strictly to power , not power + data. The whole unit is powered via passive POE 54V / 1.5A via wires (+1, 2, 4, 5; -3, 6, 7, 8).
POE Out - POE Out ports are divided into two groups according to the consumption and at the same time according to the wires on which the power supply is routed.
Operating system
Thanks to the highly sophisticated EdgeOS operating system, it is possible to use basic switch functions, configuration and PoE monitoring and advanced functions such as VLAN configuration, RSTP, Link aggregation, DHCP snooping , RADIUS authentication and routing.

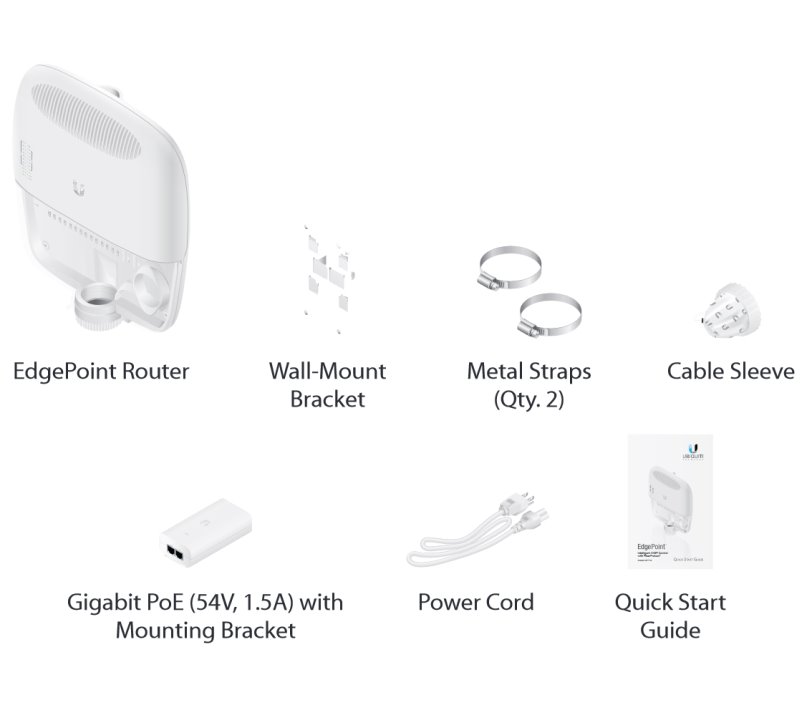

Package contains
Download
Datasheet EdgeOS manual [EN] Quick Start GuideGPSR
