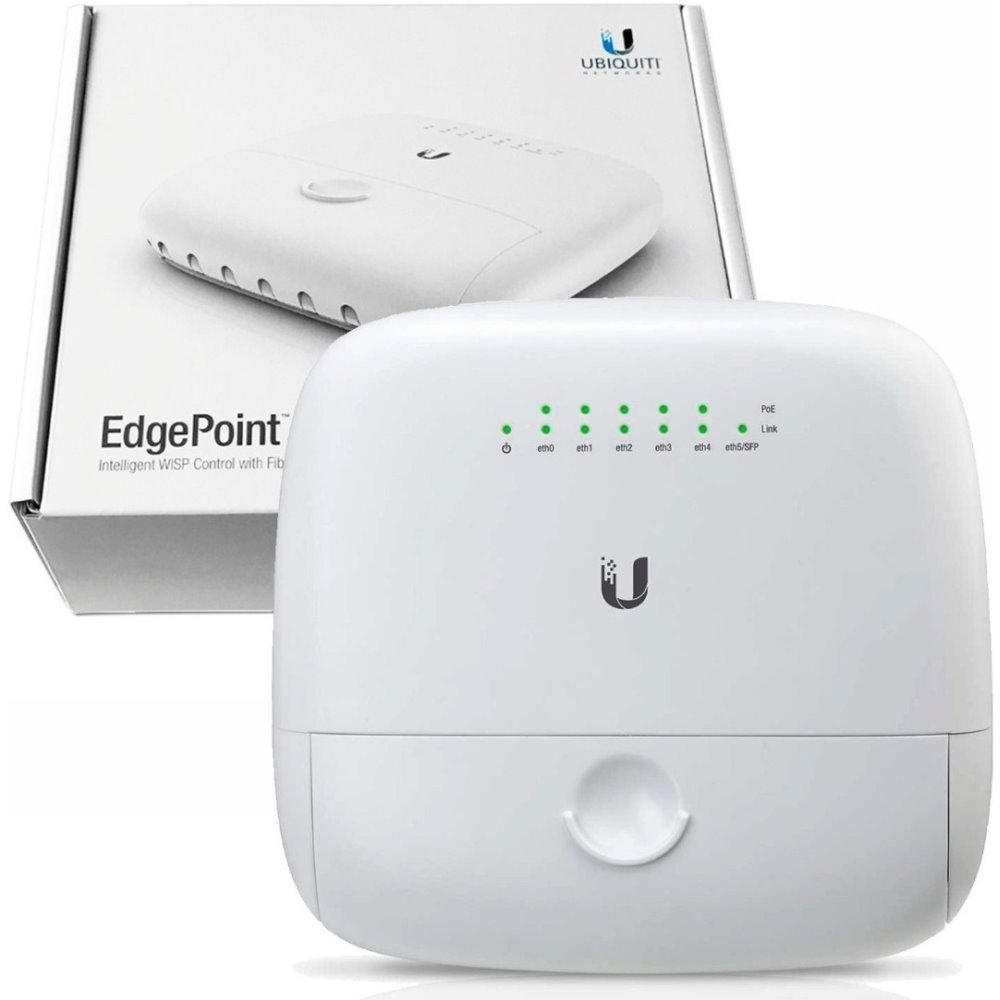

Ubiquiti EP-R6, EdgePoint WISP router, 6-port
Your price excl. VAT
98.73 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 98.80 EUR |
| Your price incl. VAT (21%) | 119.55 EUR |
| blank |
Availability
at our branches
at our branches
Ordering from the internet is not permitted. For more information, please contact our sales department.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10410124 | |
| Part No. | EP-R6 | |
| Warranty | 24 months | |
ETH-SP-G2
9.89 EUR excl. VAT
12.05 EUR incl. VAT
In Stock
POE-24-30W
12.06 EUR excl. VAT
14.68 EUR incl. VAT
In Stock
CT-290-48-B
6.29 EUR excl. VAT
7.61 EUR incl. VAT
In Stock
OFTP5E24-MSC
129.26 EUR excl. VAT
156.40 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Connectors and Interfaces
Multiple WAN:
Yes
LAN speed:
(5) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(1) 1000Mbps
Power
Power over Ethernet:
24V DC
Power type:
PoE, DC terminal
PoE type:
PoE-Out + PoE-In
PoE Out ports:
5
Max. power consumption [W]:
7
Power via connector/terminal:
16 .. 26V DC
Physical characteristics
Design:
Outdoor
Fans:
No
Chassis design:
Plastic
Buttons:
Reset
Operating temperature [°C]:
-20 up to 65
Width [mm]:
189
Height [mm]:
177
Depth [mm]:
50
Hardware
CPU:
MIPS1004Kc
CPU frequency [MHz]:
880
CPU cores:
2
RAM [MB]:
256
Software
Supported VPN:
PPTP, L2TP, IPSec, OpenVPN
Management:
Web management
Operating system:
EdgeOS
IPv6 support:
Yes
Default IP address:
192.168.1.1
Default login and password:
ubnt / ubnt
Product description

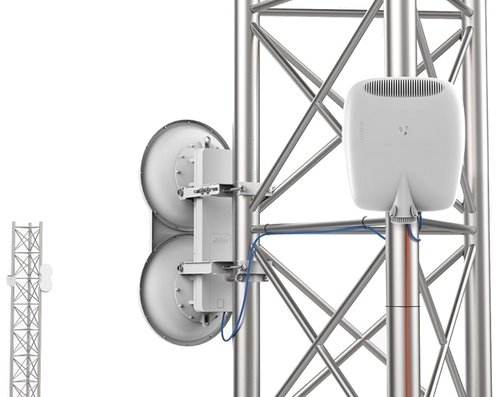

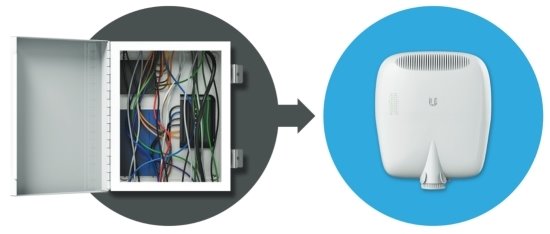

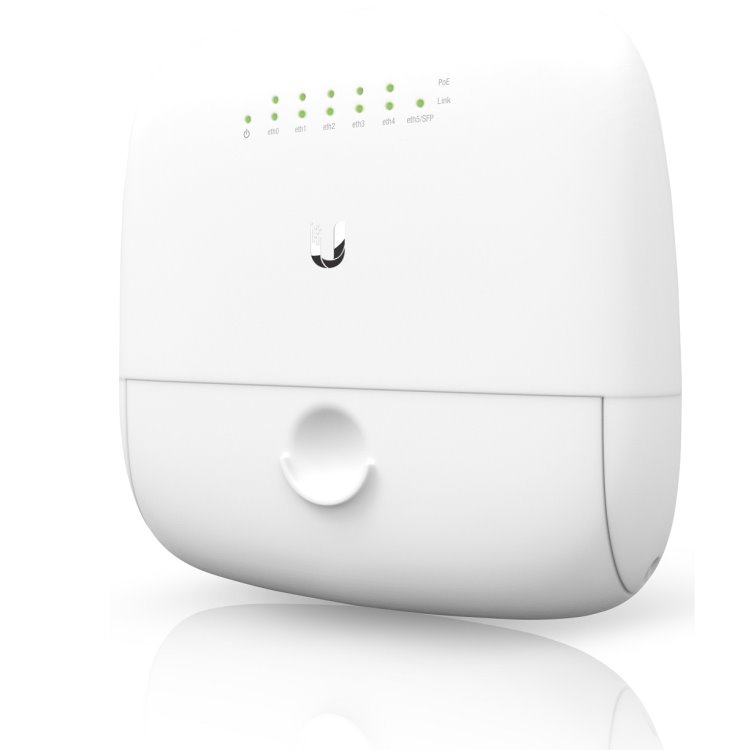

Ubiquiti EdgePoint EP-R6 is an outdoor Gigabit Router with output POE support on all 5 Ethernet ports and input POE on the first port. With this product, you no longer have to pull the cables from the roof to the lower floors for each active element separately, or invent a complex solution including an outdoor cabinet, switch installation, power and POE. You now have all in one.

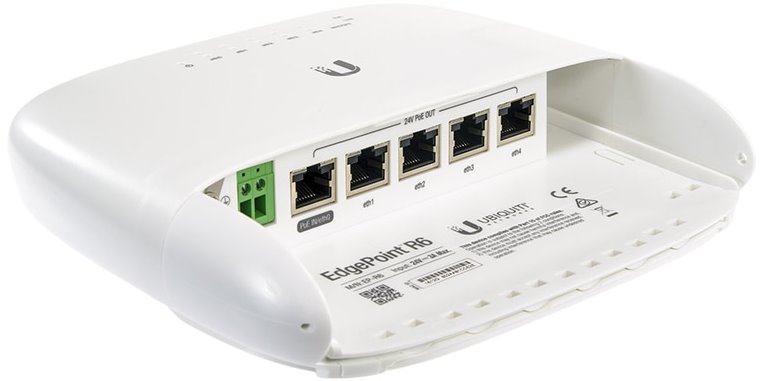

Connector equipment

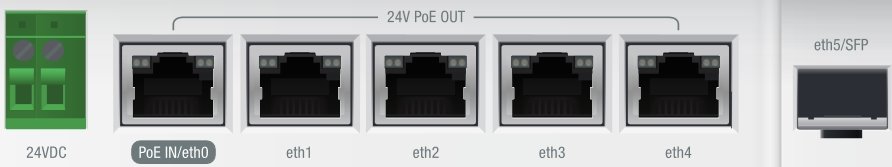

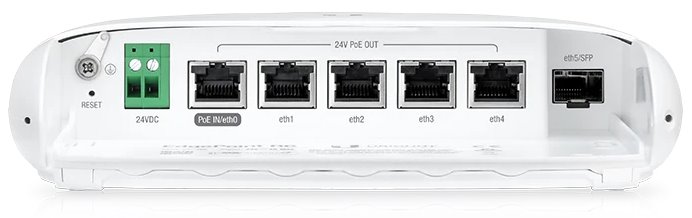

The device has (5) 10/100/1000Mbps POE-enabled Ethernet ports, (1) 1Gbps SFP port and DC terminal block for direct power connection. The whole device is powered by a dual-core processor clocked on 600MHz, 2GB RAM and internal storage size of 4GB.
POE IN - The Ethernet power supply for the EdgePoint ER-R6 has its limits, and for multiple connected devices, it is recommended to use the DC terminal power supply. If necessary, ports No. 1 are designated for the POE IN purpose. When using the POE IN on port 1, it is not possible to use the POE Out function on this port at the same time.
POE Out - Power to other devices is supported on all 5 ports with a 0.7A / port limit. This is a power supply on the wires (+4, 5; -7, 8). These ports are designed to power eg: NanoBeam.

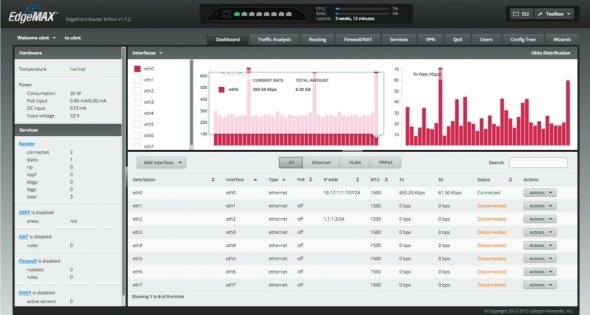

Great EdgeOS operating system
Thanks to the highly sophisticated EdgeOS operating system, it is possible to take advantage of basic switch functions, configuration and PoE monitoring and advanced features such as VLAN configuration, RSTP, Link aggregation, DHCP snooping, RADIUS authentication and routing.

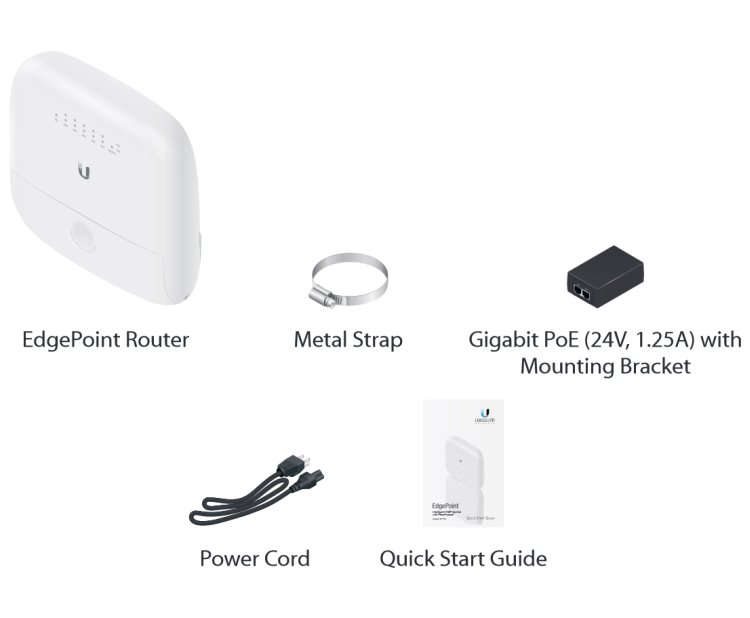

Package contains
Download
Datasheet EdgeOS manual [EN] Quick Start GuideTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
