Ubiquiti EdgeSwitch ES-16-XG
Ubiquiti EdgeSwitch ES-16-XG
×
0/0
Temporarily unorderable
Your price excl. VAT
493.63 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 493.70 EUR |
| Your price incl. VAT (21%) | 597.38 EUR |
| blank |
Availability
at our branches
at our branches
Ordering from the internet is not permitted. For more information, please contact our sales department.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10410137 | |
| Part No. | ES-16-XG | |
| Warranty | 24 months | |
ML-S+85D-03
8.52 EUR excl. VAT
10.39 EUR incl. VAT
Expected 27.1.2025
ML-S+31D-10
13.77 EUR excl. VAT
16.75 EUR incl. VAT
In Stock
ML-S+2733-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-S+3327-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(4) 1G/10Gbps
Optical interfaces:
(12) 1G/10Gbps
Serial port:
RJ45
Power
Power type:
DC connector, Mains power (230V)
Redundant power supply:
Yes
Max. power consumption [W]:
36
Power via connector/terminal:
16 .. 25V DC, 230V AC
Physical characteristics
Design:
Rackmount
Fans:
Yes
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-5 up to 40
Width [mm]:
443
Height [mm]:
43
Depth [mm]:
221
General
Switchning capacity [Gbps]:
320
MAC address table:
16000
Packet forwarding rate [Mpps]:
238,1
Software
Web management:
Yes
Management:
Web management, SSH, Telnet
Features:
VLAN, QoS, DHCP snooping, L3
Default IP address:
192.168.1.2
Default login and password:
ubnt / ubnt
Product description

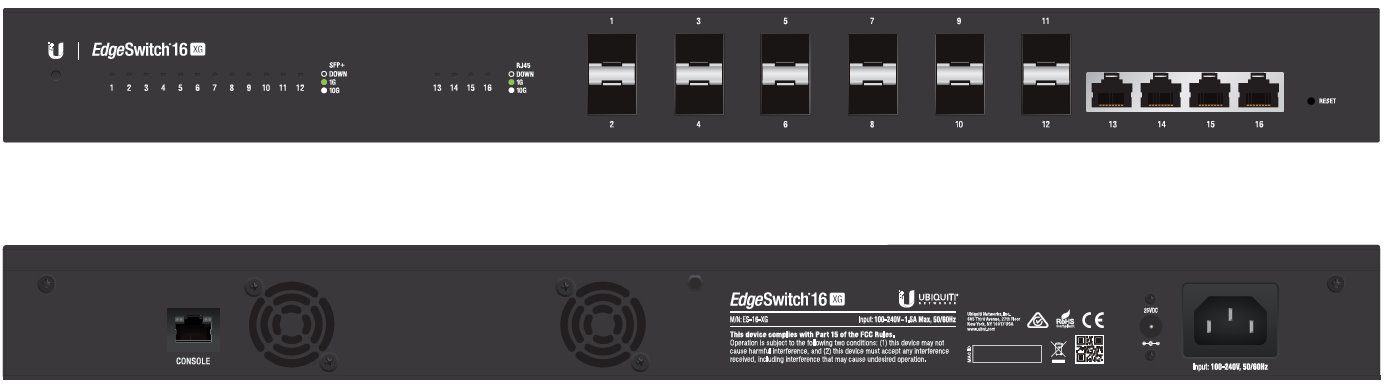

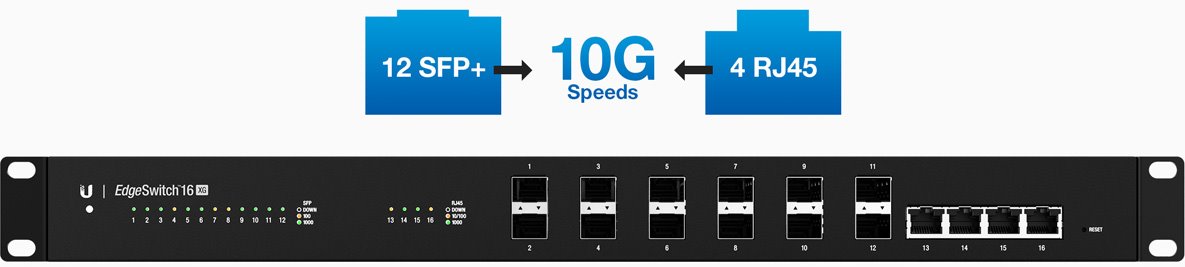

EdgeSwitch ES-XG-16 is a high performance optical switch suitable for building a 10Gbit network. EdgeSwitch ES-16-XG is fully managable switch containing 4x 10G Ethernet and 12x SFP+ ports with a total 320Gbps throughput. All ethernet and optical ports support 10G and 1G speed.
Redundant power
A big advantage is redundant or direct DC power supply. Switch can be powering with 230V AC input and 2.5mm DC connector with variable power from 16 to 25V.
Software
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Package contains
Download
Admin Guide Datasheet Latest Firmware SFP compatible listGPSR
