Ubiquiti EdgeSwitch 8XP PoE PRO
We are sorry, this product is no longer in our offer.
Ubiquiti EdgeSwitch 8XP PoE PRO
×
0/0
Sale
FS-A1-250-B
17.12 EUR excl. VAT
20.72 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(8) 10/100/1000Mbps + (1) 10/100Mbps (managment)
Management LAN:
(1) 10/100Mbps
USB ports 2.0:
1 (reserved for future use)
Power
Output Power [W]:
150
Power type:
Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
Passive 24V, Passive 48V
PoE Out ports:
8
Output Voltage [V]:
24, 48
PoE budget [W]:
150
Output Current [A]:
6,25
Max. power consumption [W]:
150
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Desktop
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-25 up to 55
Width [mm]:
210
Height [mm]:
41
Depth [mm]:
186
General
MAC address table:
16000
Software
Web management:
Yes
Management:
Web management
Features:
VLAN
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Product description

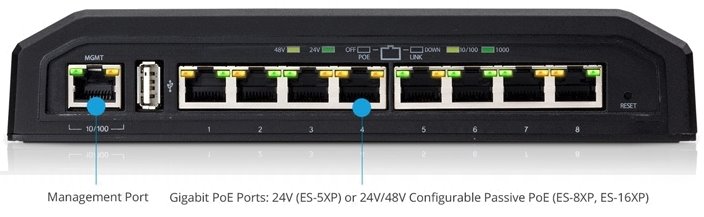

EdgeSwitch 8XP PoE PRO is a replacement for TS-8-PRO and is a PoE switch with 8x PoE ports, one management port and integrated 150W power supply. ES-8XP is able to power up to 8 devices with passive PoE 24V or 48V. The voltage can be set to individual ports in the switch configuration.
A Single Power Source
Featuring software-selectable output voltage control, the EdgeSwitch 8XP and 16XP models can power 24V or 48V devices.

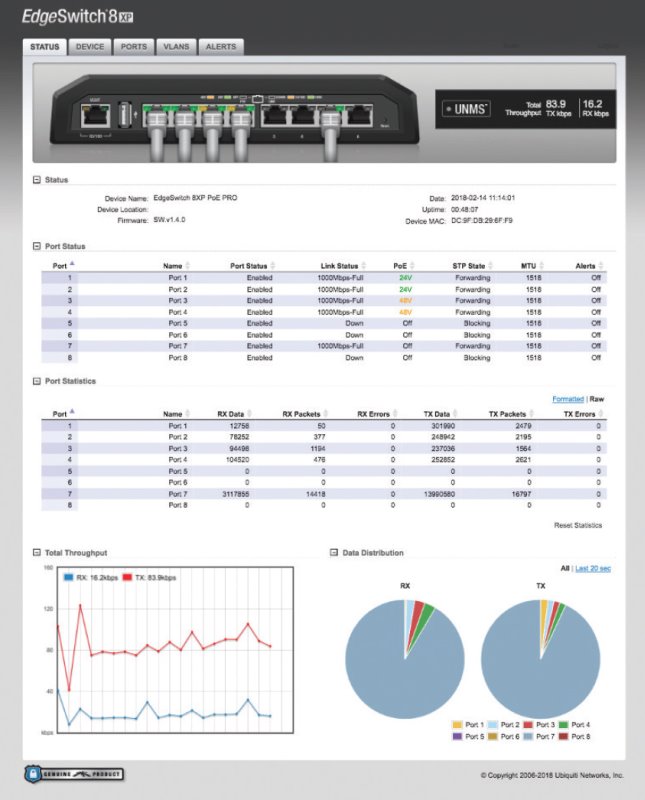

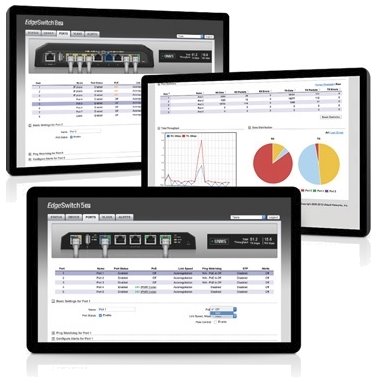

Intuitive UI
Designed for efficient setup and control, the graphical user interface is easy to use and manages advanced Layer 2 features, including:

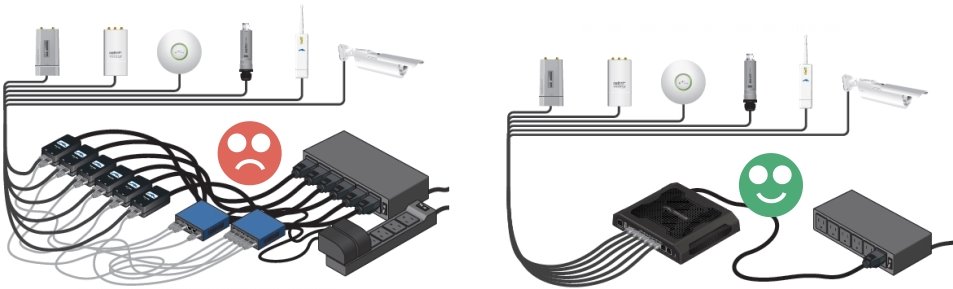

Easier infrastructure
With fewer cables, you will no longer have to search for a particular power supply or cable.
Package contains
Download
Configuration User Guide Datasheet Quick GuideGPSR
