Ubiquiti EdgeSwitch 5XP POE, 5x Gigabits POE ports, 24V (replacement of TS-5-POE)
Ubiquiti EdgeSwitch 5XP POE, 5x Gigabits POE ports, 24V (replacement of TS-5-POE)
×
0/0
Your price excl. VAT
75.44 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 75.51 EUR |
| Your price incl. VAT (21%) | 91.37 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
10 pcs.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10901750 | |
| Part No. | ES-5XP | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(5) 10/100/1000Mbps
Management LAN:
(1) 10/100Mbps
USB ports 2.0:
1 (reserved for future use)
Power
Output Power [W]:
60
Power type:
DC connector
PoE type:
PoE-Out (only)
PoE-Out standards:
Passive 24V
PoE Out ports:
5
Output Voltage [V]:
24
PoE budget [W]:
60
Output Current [A]:
2,5
Max. power consumption [W]:
60
Power via connector/terminal:
24V / 2,5A
Physical characteristics
Design:
Desktop
Fans:
No
Chassis design:
Plastic
Buttons:
Reset
Operating temperature [°C]:
-25 up to 55
Width [mm]:
197
Height [mm]:
27
Depth [mm]:
88
General
MAC address table:
16000
Software
Web management:
Yes
Management:
Web management
Features:
VLAN
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Product description
EdgeSwitch 5XP POE is a 5-port Gigabit PoE switch with external power adapter with max power budget 60W. ES-5XP is able to power up to 5 devices 24V passive PoE (suitable for powering NanoStationM5, Rocket M5, PowerBeam, ...). The voltage can be set on individual ports in the switch configuration.
Intuitive UI

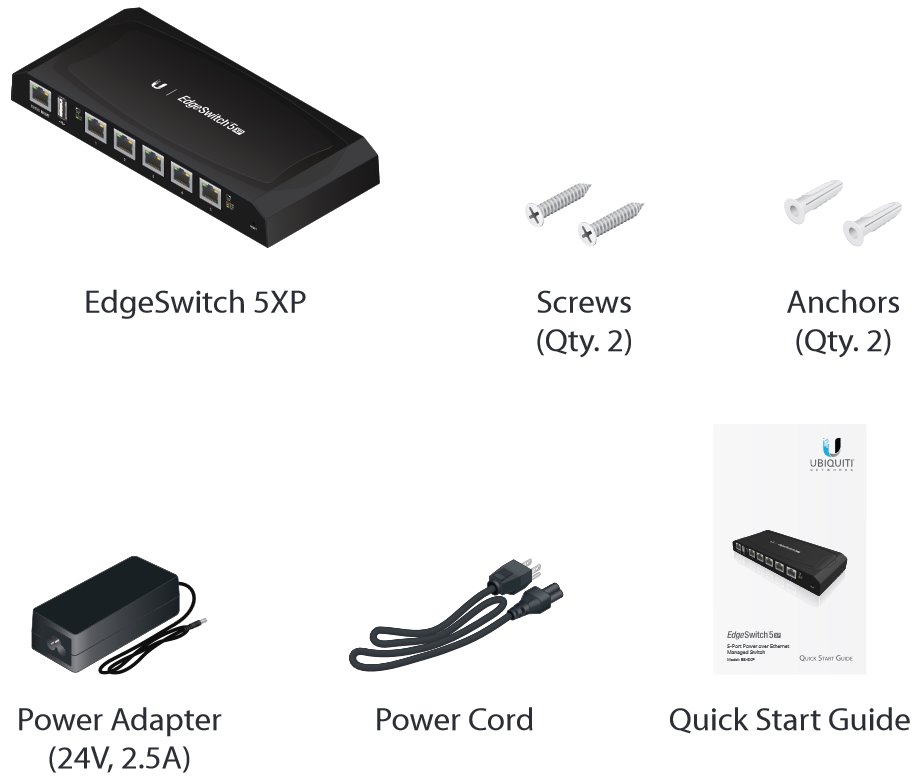

Package contains
Download
Datasheet Quick GuideGPSR
