Ubiquiti EdgeSwitch 18X
Ubiquiti EdgeSwitch 18X
×
0/0
Temporarily unorderable
Your price excl. VAT
147.45 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 147.52 EUR |
| Your price incl. VAT (21%) | 178.50 EUR |
| blank |
Availability
at our branches
at our branches
Ordering from the internet is not permitted. For more information, please contact our sales department.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10901749 | |
| Part No. | ES-18X | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Connectors and Interfaces
LAN speed:
(16) 10/100/1000Mbps
Optical interfaces:
(2) 1000Mbps
Power
Power type:
PoE, DC connector
PoE type:
PoE-Out + PoE-In
PoE-Out standards:
Passive 24V
PoE Out ports:
1
PoE budget [W]:
15
Max. power consumption [W]:
14
Power via connector/terminal:
9 .. 30V DC
Physical characteristics
Design:
Desktop, Rackmount
Fans:
No
Chassis design:
Metal
Operating temperature [°C]:
-10 up to 50
Width [mm]:
300
Height [mm]:
44
Depth [mm]:
160
General
Switchning capacity [Gbps]:
36
MAC address table:
16000
Jumbo frame [Bytes]:
10240
Packet forwarding rate [Mpps]:
26,78
Software
Web management:
Yes
Management:
Web management
Features:
VLAN, QoS, DHCP snooping
Default IP address:
192.168.1.2
Default login and password:
ubnt / ubnt
Product description

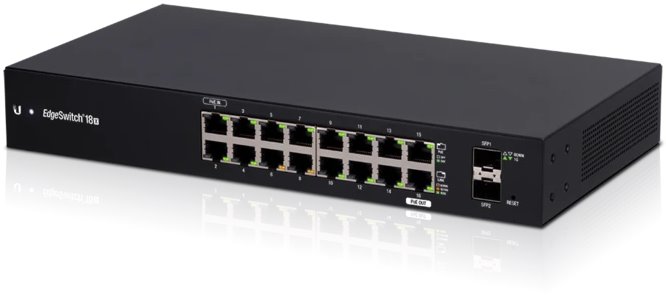

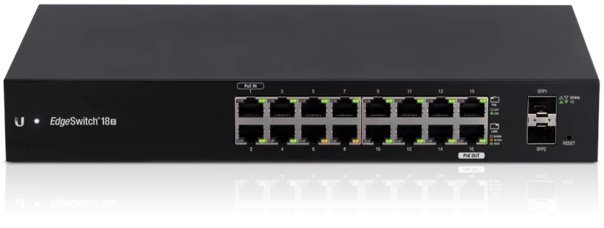

Ideal for larger-scale WISP applications, the EdgeSwitch® 18X is an affordable high-performance switch with SFP ports and a fanless design. Sixteen Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and PoE passthrough on port 16. Two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control. Management is also available through the Ubiquiti® Network Management System (UNMS™).
Features
Package contains
Download
Datasheet SFP compatible listTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
