Ubiquiti dual omni antenna airMAX 2x2 MIMO 5GHz, 13dBi, rocket kit
Ubiquiti dual omni antenna airMAX 2x2 MIMO 5GHz, 13dBi, rocket kit
×
0/0
Your price excl. VAT
133.12 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 133.32 EUR |
| Your price incl. VAT (21%) | 161.32 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
10 pcs.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10210322 | |
| Part No. | AMO-5G13 | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
13dBi
AMO-5G13
133.12 EUR
Parameters
Download
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
VSWR:
< 1,5
Cross-Pol Isolation [dB]:
25
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
7
Azimuth beam width (-6dB) [°]:
360
Antenna type:
Omnidirectional
Antenna gain [dBi]:
13
Connectors and Interfaces
Rocket kit:
Yes
RF connectors:
(2) RSMA female
Physical characteristics
Designed for mast diameter [mm]:
30 up to 80
Wind load [km/h]:
200
Purpose:
Outdoor
Material:
UV stabilized ABS plastic
Weight [kg]:
0,8
Width [mm]:
90
Height [mm]:
799
Depth [mm]:
65
Product description

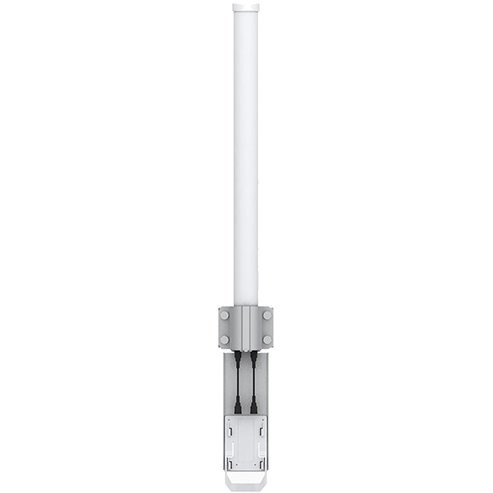

AMO-5G13 is 2x2 MIMO omnidirectional antenna with 13dBi gain, 360°/7° beam angles and is designed for 5GHz band. It was designed to seamlessly integrate with Rocket M radio series.
Plug and Play Integration
Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.

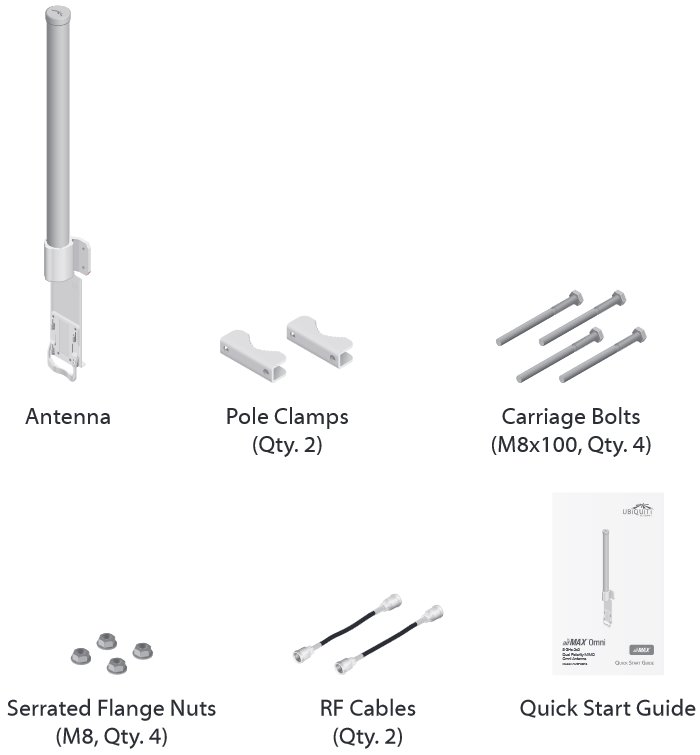

Package contains
Download
Datasheet Quick StartGPSR
