Ubiquiti dual omni antenna airMAX 2x2 MIMO 2,4GHz, 10dBi, rocket kit
Your price excl. VAT
136.50 EUR
Recycling fee | 0.20 EUR |
---|---|
Your price with RF | 136.70 EUR |
Your price incl. VAT (21%) | 165.41 EUR |
blank |
Availability
at our branches
at our branches
Per orig. box:
4 pcs.
Manufacturer |
Ubiquiti |
|
---|---|---|
Code | 10110321 | |
Part No. | AMO-2G10 | |
Warranty | 24 months |
You have a choice of 2 variantscompare all
10dBi
AMO-2G10
136.50 EUR
RocketM2
70.98 EUR excl. VAT
85.97 EUR incl. VAT
Ordered, unknown date
Parameters
Download
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
VSWR:
< 1,7
Cross-Pol Isolation [dB]:
25
Wireless frequency:
2.4 GHz
Elevation beam width (-6dB) [°]:
12
Azimuth beam width (-6dB) [°]:
360
Antenna type:
Omnidirectional
Antenna gain [dBi]:
10
Connectors and Interfaces
Rocket kit:
Yes
RF connectors:
(2) RSMA female
Physical characteristics
Wind load [km/h]:
160
Purpose:
Outdoor
Material:
UV stabilized plastic
Weight [kg]:
2,1
Width [mm]:
122
Height [mm]:
1030
Depth [mm]:
84
Product description

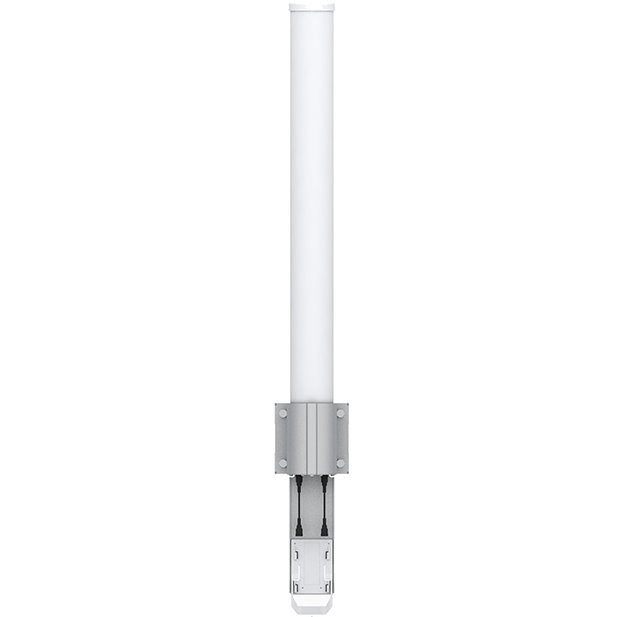

AMO-2G10 is 2x2 MIMO omnidirectional antenna with 10dBi gain, 360°/12° beam angles and is designed for 2.4GHz band. It was designed to seamlessly integrate with Rocket M radio series.
Plug and Play Integration

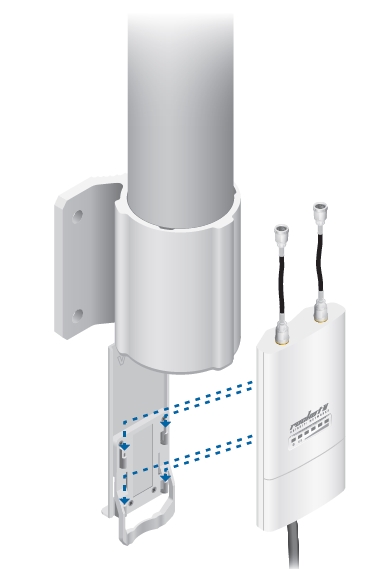

Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.

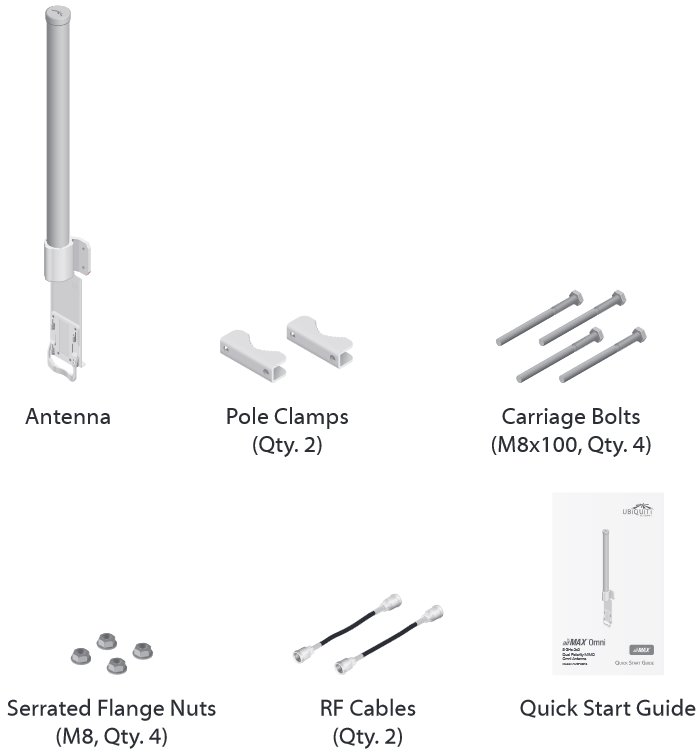

Package contains
Download
Datasheet Quick Start GuideTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
