Ubiquiti directional antenna AMY-9M16x2, 900 MHz dual pol Airmax yagi - 2-pack

Ubiquiti directional antenna AMY-9M16x2, 900 MHz dual pol Airmax yagi - 2-pack
Ubiquiti directional antenna AMY-9M16x2, 900 MHz dual pol Airmax yagi - 2-pack
×
0/0
Ubiquiti directional antenna AMY-9M16x2, 900 MHz dual pol Airmax yagi - 2-pack
Ubiquiti directional antenna AMY-9M16x2, 900 MHz dual pol Airmax yagi - 2-pack
Ubiquiti directional antenna AMY-9M16x2, 900 MHz dual pol Airmax yagi - 2-pack
Ubiquiti directional antenna AMY-9M16x2, 900 MHz dual pol Airmax yagi - 2-pack
Ubiquiti directional antenna AMY-9M16x2, 900 MHz dual pol Airmax yagi - 2-pack
Ubiquiti directional antenna AMY-9M16x2, 900 MHz dual pol Airmax yagi - 2-pack


Oversized transport - The shipping price will be calculated after receiving the order. Shipping price may vary depending on your delivery adress.

Your price excl. VAT
157.35 EUR
Recycling fee 0.40 EUR
Your price with RF 157.75 EUR
Your price incl. VAT (21%) 190.88 EUR
blank
Not in stock
PlzeňNot in stock
Externí sklad EANot in stock
Externí sklad EUNot in stock
Availability
at our branches
 Per orig. box:  1x 2pack
Manufacturer

Ubiquiti

Code10133002
Part No.AMY-9M16x2
Warranty 24 months
Parameters
Download

Product description

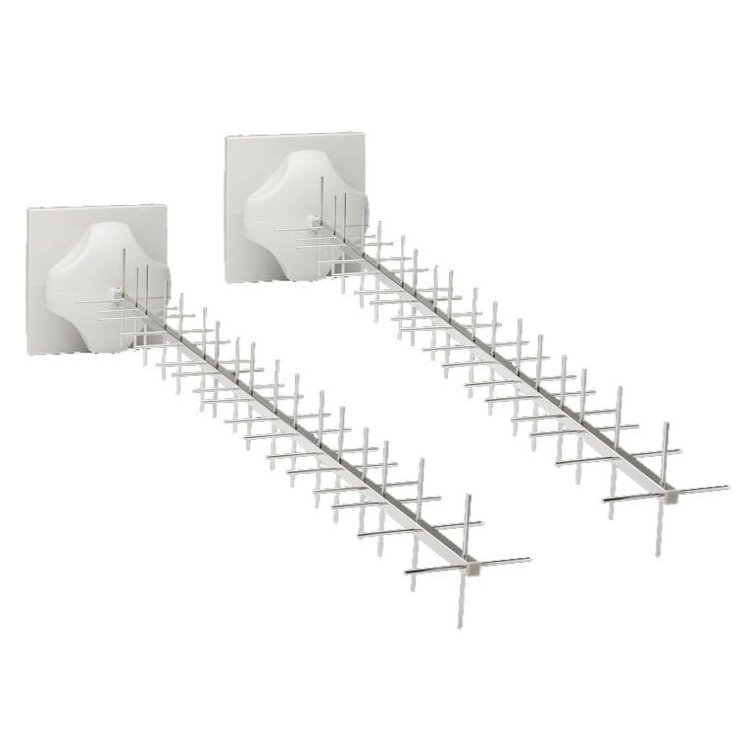

The airMAX 900 MHz YAGI Antenna is a high-gain array antenna designed to seamlessly integrate with the Rocket™M900 radio (sold separately). It features incredible range performance of 20+ km and breakthrough speed of 90+ Mbps.

2x2, Dual-Polarity Design

The airMAX® Yagi Antenna is a high-gain array antenna that delivers high performance in the 900 MHz radio band.

AMY-9M16x2

Long-Range Deployments

The airMAX® Yagi Antenna performs at ultra-long ranges in Non-Line-of-Sight (NLOS) applications.

Plug and Play Integration

Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.

AMY-9M16x2

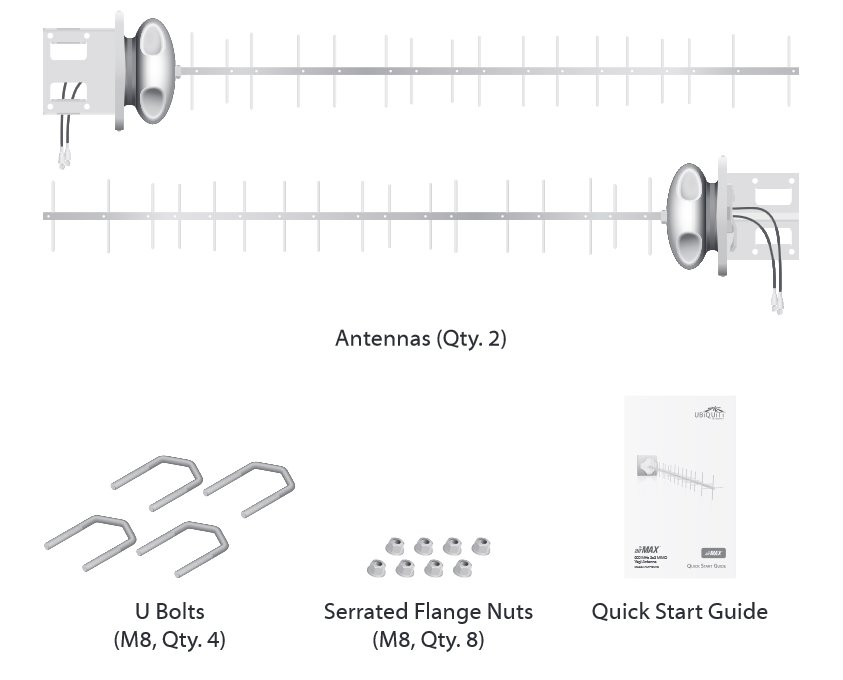

Package contains

  • (2) Antenna
  • (2) Mounting kit

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Wireless features

MIMO, SISO: 2 x 2
Polarization: VH
VSWR: < 1,5
F/B ratio [dB]: 20
Cross-Pol Isolation [dB]: 20
Wireless frequency: 900 MHz
Elevation beam width (-6dB) [°]: 29
Azimuth beam width (-6dB) [°]: 29
Antenna gain [dBi]: 16

Connectors and Interfaces

Rocket kit: Yes
RF connectors: (1) RSMA female

Physical characteristics

Antenna design: Yagi
Wind load [km/h]: 200
Purpose: Outdoor
Weight [kg]: 2,5
Width [mm]: 215
Height [mm]: 218
Depth [mm]: 1365
