Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM

Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
×
0/0
Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM

Your price excl. VAT
366.12 EUR
Recycling fee 0.20 EUR
Your price with RF 366.32 EUR
Your price incl. VAT (21%) 443.25 EUR
blank
In Stock
PlzeňIn Stock
Availability
at our branches
 Per orig. box:  1 piece
Manufacturer

Ubiquiti

Code10900171
Part No.AP-5AC-90-HD
Warranty 24 months
  • Related products1
Ubiquiti Rocket5 AC Lite, outdoor, 5GHz AC, 2x RSMA, AirMAX AC
R5AC-Lite

109.83 EUR excl. VAT
132.98 EUR incl. VAT
In Stock
Parameters
Download
GPSR

Product description

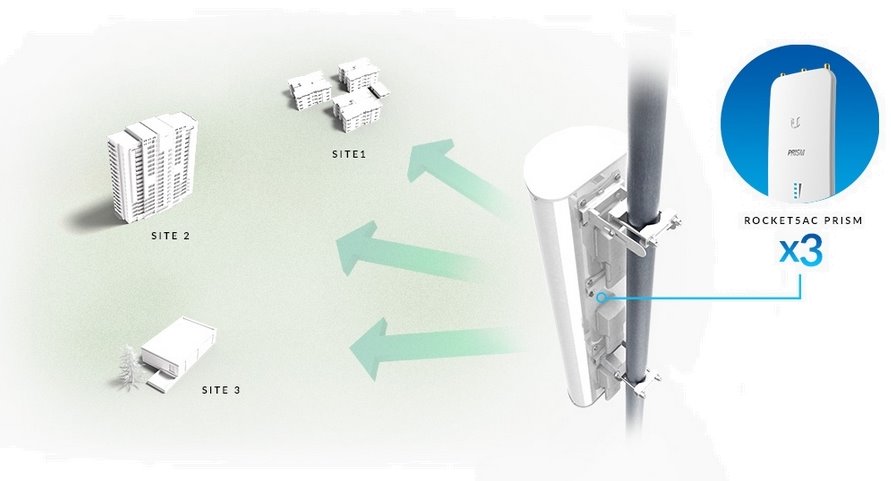

The AP-5AC-90-HD AirPrism sector antenna is the first multi sectoral antenna with 3 independent 2x2 MIMO sector antennas with a 30° radius coverage for the 5GHz band. The total airPrism antenna coverage angle is 90°. This sectoral antenna is made of the finest materials and is dedicated to reserved areas, or where you do not have much space on the mast and you need to connect more customers.

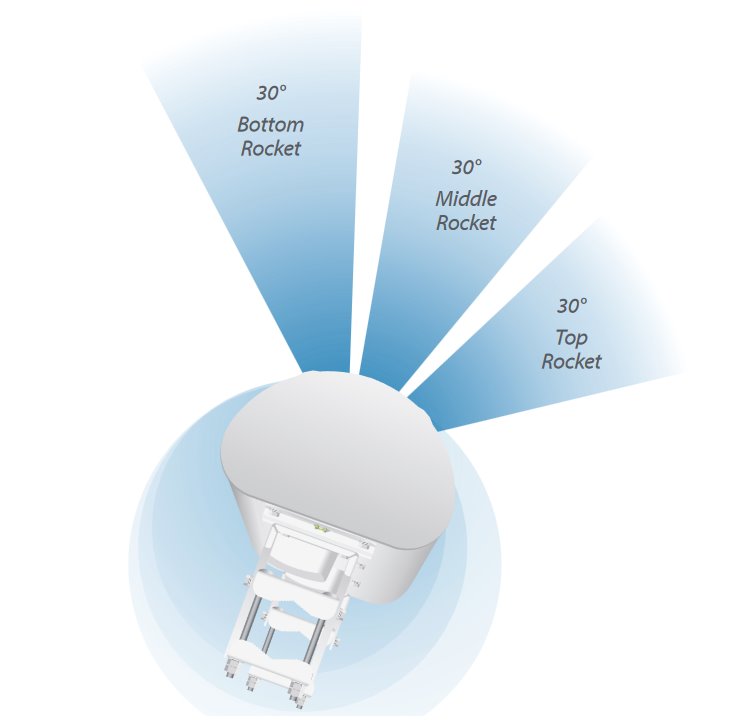

3 x 30° Beamwidth Coverage

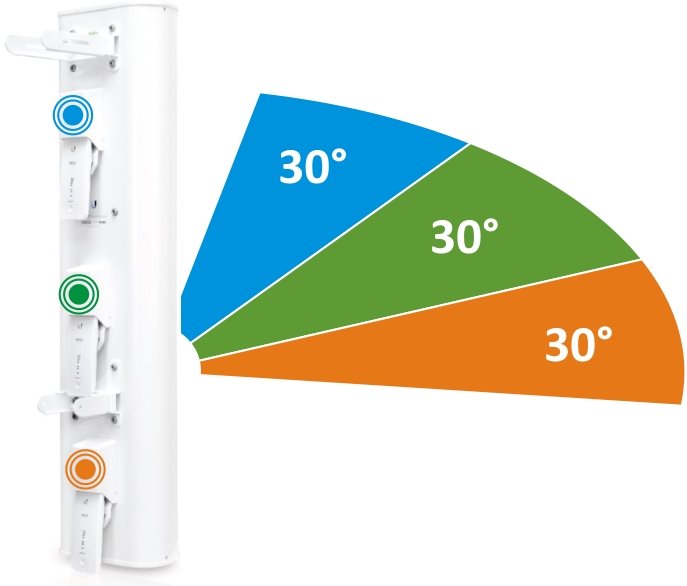

The three Rocket5ac Prism™ radios are installed at the top, middle, and bottom of the airPrism antenna. Each radio independently transmits and receives within its corresponding 30° beamwidth.

AP-5AC-90-HD

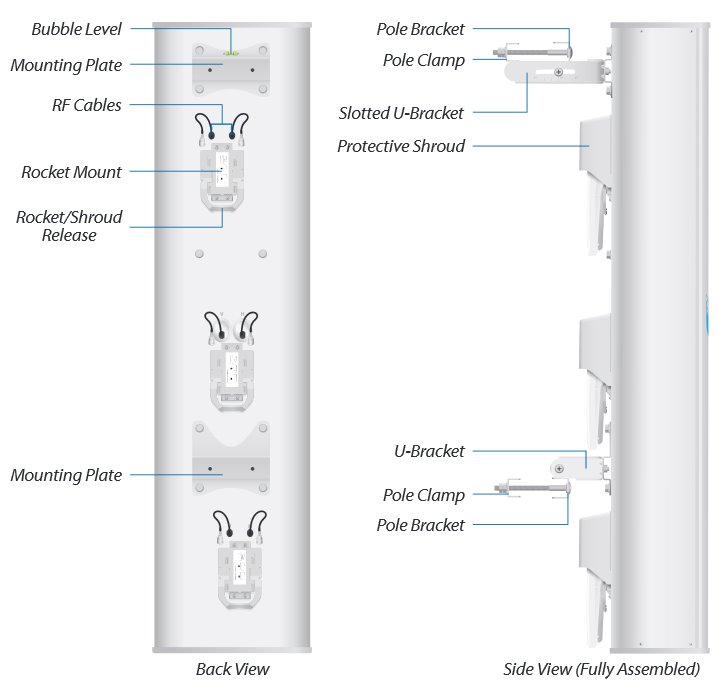

Package contains

  • Antenna
  • Holder
  • (3) rocket unit coverage

GPSR

Contact:
Ubiquiti International Holding B.V.
Ekkersrijt 3102, 5692 CC Son en Breugel
support@ui.com

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Wireless features

MIMO, SISO: 2 x 2
Polarization: VH
VSWR: < 1,75
Cross-Pol Isolation [dB]: 30
Wireless frequency: 5 GHz
Elevation beam width (-6dB) [°]: 8
Azimuth beam width (-6dB) [°]: 30
Antenna type: Sector
Antenna gain [dBi]: 22

Connectors and Interfaces

Rocket kit: Yes
RF connectors: (6) RSMA male

Physical characteristics

Wind load [km/h]: 200
Purpose: Outdoor
Weight [kg]: 13,1
Width [mm]: 323
Height [mm]: 1330
Depth [mm]: 202
