Ubiquiti AmpliFi Instant Router, EU
We are sorry, this product is no longer in our offer.
Ubiquiti AmpliFi Instant Router, EU
×
0/0
PCU5E-1YW-MS
0.58 EUR excl. VAT
0.70 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.48 EUR excl. VAT
4.21 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
22
Tx power 5GHz [dBm]:
22
Security:
WPA2-PSK AES/TKIP
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
1
Connectors and Interfaces
WAN speed:
(1) 10/100/1000Mbps
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Max. power consumption [W]:
9
Power via connector/terminal:
9V / 1.7A
Physical characteristics
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
-10 up to 55
Weight [g]:
215
Width [mm]:
99
Height [mm]:
33
Depth [mm]:
98
Software
Operating mode:
AP Router, Access Point
Product description

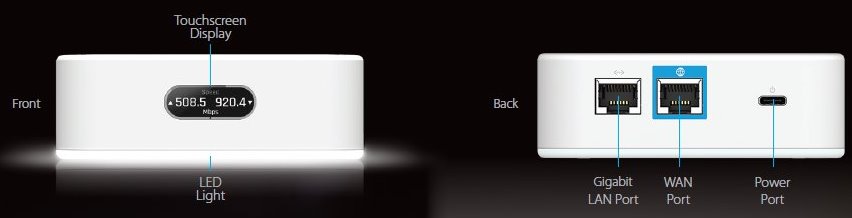

AFi-INS-R is AmpliFi router, which is suitable to cover smaller spaces. On the front side it has information LCD, on the rear side 1x WAN port, 1x LAN port (both 10/100/1000Mbps) and USB-C connector for powering.
WiFi supports 802.11a/b/g/n/ac with modulation speeds 300Mbps (2.4GHz) + 867Mbps (5GHz). Built-in dual-band antenna supports 2x2 MIMO. Max. consumption is 9W.

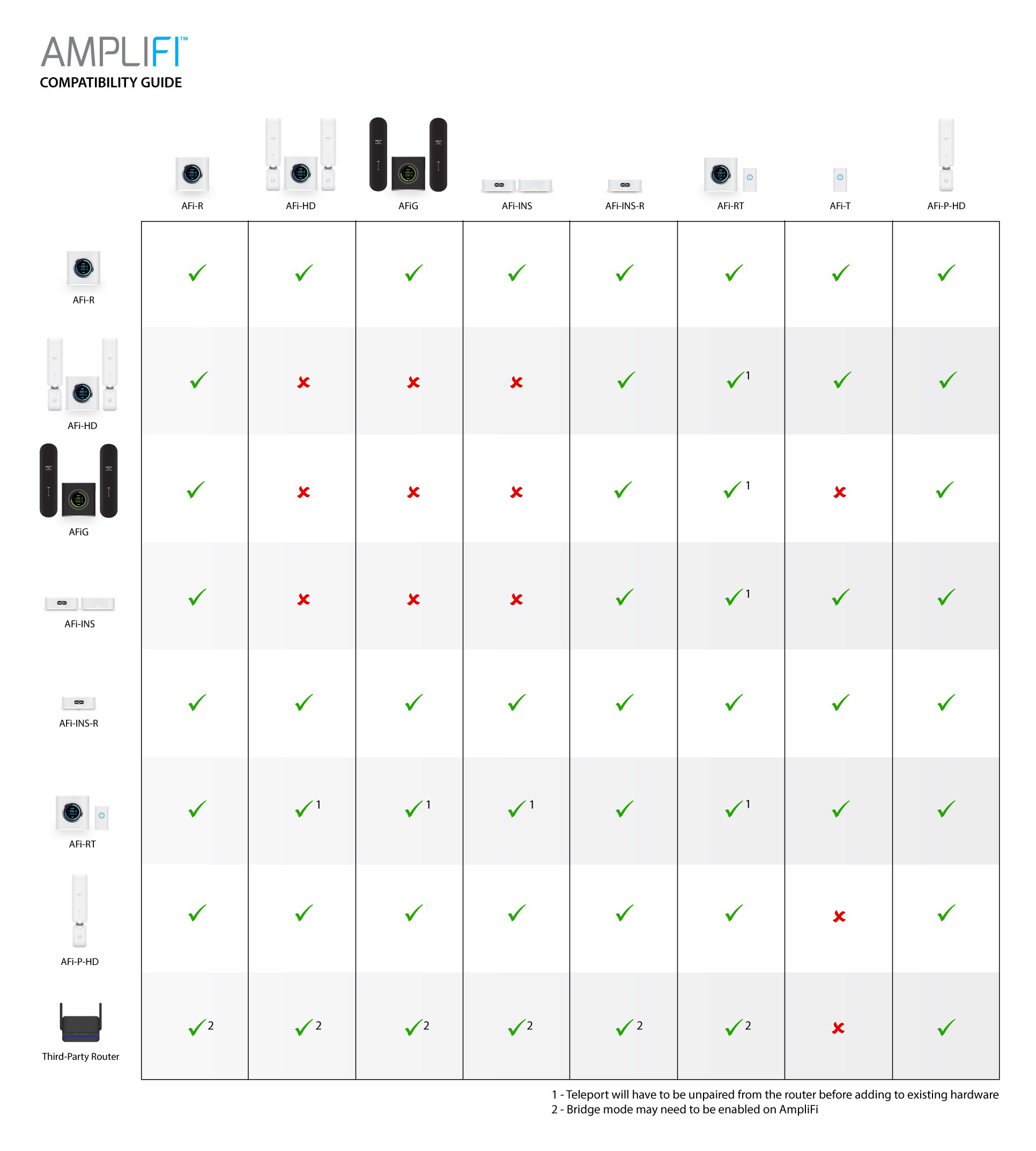

In case of need you can buy compatible AmpliFi device to expand coverage.
All settings is done in intuitive application AmpliFi, which is available for Android and iOS. AmliFi products have customer support 24/7 through AmpliFi app and on AmpliFi help portal.
Package contains
Download
Datasheet Quick Guide User GuideTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
