Ubiquiti AmpliFi High Density Home Wi-Fi System (Router + 2x Mesh Points)
Your price excl. VAT
309.46 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 309.66 EUR |
| Your price incl. VAT (21%) | 374.69 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
4 pcs.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10220138 | |
| Part No. | AFi-HD | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.45 EUR excl. VAT
4.17 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11n, 802.11a, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
1300
Transmission speed - 2.4GHz [Mb/s]:
450
Tx power 2.4GHz [dBm]:
26
Tx power 5GHz [dBm]:
26
Security:
WPA2-PSK AES/TKIP
2.4GHz MIMO:
3 x 3
5GHz MIMO:
3 x 3
Type of antenna:
Built-in
Internal antennas:
3
Connectors and Interfaces
WAN speed:
(1) 10/100/1000Mbps
LAN speed:
(4) 10/100/1000Mbps
Gigabit LAN:
Yes
USB:
Yes
Other features:
Touchscreen
Power
Max. power consumption [W]:
11
Power via connector/terminal:
9V / 1.7A
Physical characteristics
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
-10 up to 55
Software
Operating mode:
AP Router, Access Point
Video
Product description
AmpliFi HD is not only common router, it's complete ultimate system. The system contains router as main unit and 2 Mesh units for range coverage up to 1850 m2. This devices have inovative, modern and elegant design. You can set up your device in web management or with Android / iOS app.
Elegant design and big equipment

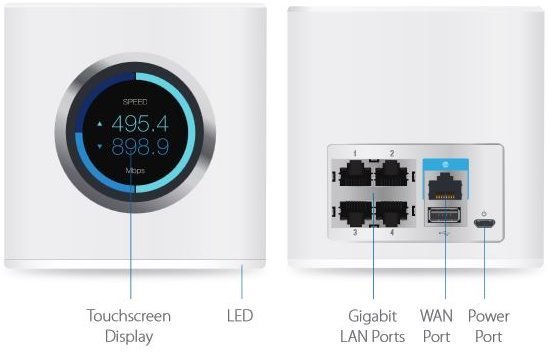

The router has 4x 10/100/1000Mbps LAN, 1x 10/100/1000Mbps WAN, USB port for charging your mobile phone, touch LCD display, microUSB power-in connector and 3x3 MIMO WiFi with modulation speed up to 1300Mbps (5GHz) + up to 450 Mbps (2.4GHz).
Huge coverage
The package contains two Mash units / repeaters for larger coverage. Mesh point is 3x3 MIMO device with modulation speeds up to 1300 Mbps (5GHz) + up to 450Mbps (2.4Ghz).
Package content
Download
Datasheet Quick Start Guide User GuideGPSR
