Ubiquiti AM-V2G-Ti, 2.4GHz, sector antenna Titanium, changeable angle 60°-120°, 15-17dBi
Ubiquiti AM-V2G-Ti, 2.4GHz, sector antenna Titanium, changeable angle 60°-120°, 15-17dBi
×
0/0
Your price excl. VAT
220.78 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 220.98 EUR |
| Your price incl. VAT (21%) | 267.39 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
2 pcs.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10210128 | |
| Part No. | AM-V2G-Ti | |
| Warranty | 24 months | |
RocketM2
72.13 EUR excl. VAT
87.36 EUR incl. VAT
Ordered, unknown date
Parameters
Download
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
VSWR:
< 1,5
F/B ratio [dB]:
30
Cross-Pol Isolation [dB]:
20
Variability of beam angle:
Yes
Wireless frequency:
2.4 GHz
Elevation beam width (-6dB) [°]:
60, 90, 120
Azimuth beam width (-6dB) [°]:
60, 90, 120
Antenna type:
Sector
Antenna gain [dBi]:
15, 16, 17
Connectors and Interfaces
Rocket kit:
Yes
RF connectors:
(2) RSMA female
Physical characteristics
Designed for mast diameter [mm]:
30 up to 80
Wind load [km/h]:
200
Purpose:
Outdoor
Weight [kg]:
3,7
Width [mm]:
149
Height [mm]:
721
Depth [mm]:
75
Product description

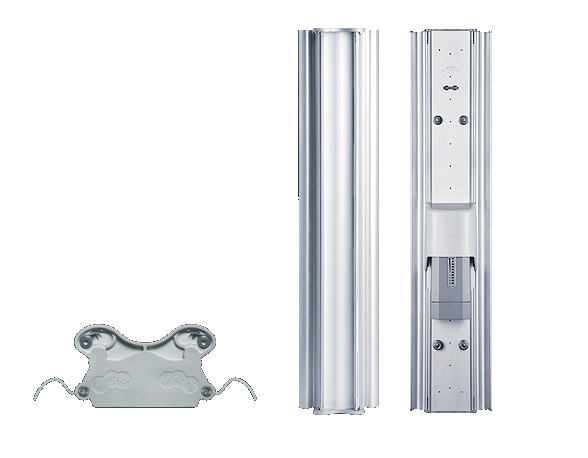

AM-V2G-Ti airMAX Titanuim Sector Antenna is a 15 - 17dBi Carrier Class 2x2 MIMO (Dual Polarity) Sector Antenna with 60° - 120° beam angle that was designed for 2.4GHz band and for integrate with Rocket M radios (RocketM sold separately).
Adjustable Beamwidth Configuration - Having adjustable beamwidth options enhances scalability and streamlines inventory. The airMAX Titanium Sector may be custom configured for any deployment requiring a 60°, 90°, or 120° sector. Antenna gain changes according to the configured beamwidth.
The airMAX Titanium Sector was specifically engineered for optimal performance when paired with a Rocket™M Titanium.

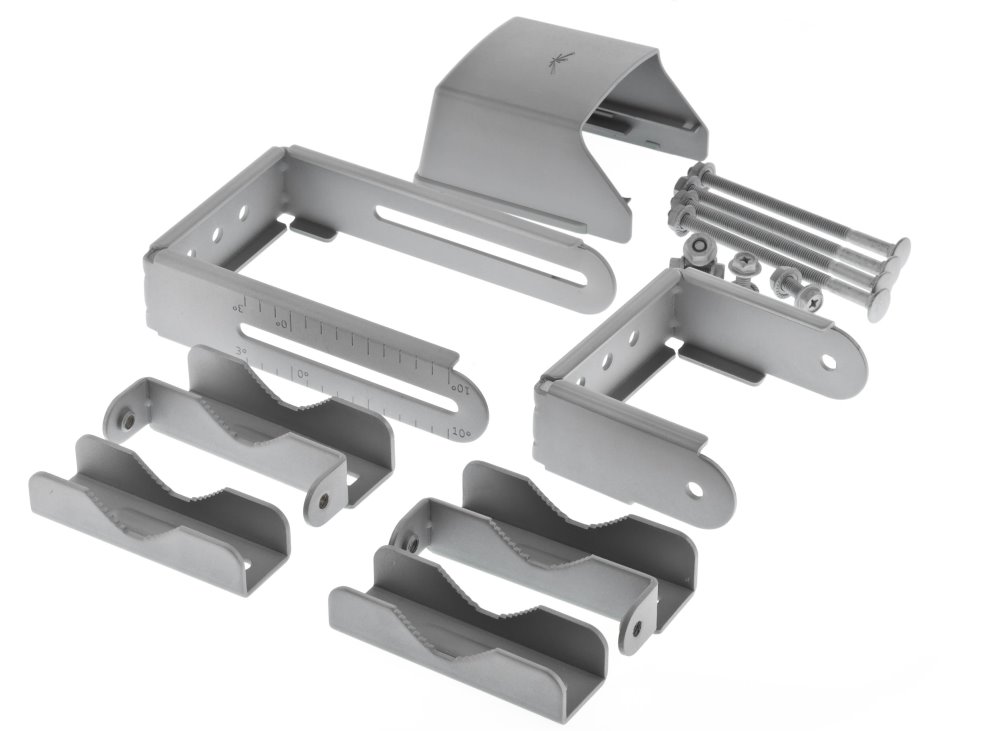

Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.
Package contains
Download
Datasheet Quick Start GuideGPSR
