Ubiquiti AirGrid HP, outdoor, 2.4GHz, 20dBi, AirMAX
We are sorry, this product is no longer in our offer.
Ubiquiti AirGrid HP, outdoor, 2.4GHz, 20dBi, AirMAX
×
0/0
Sale
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 GHz
WiFi standards:
802.11b/g, airMAX, 802.11n
Transmission speed - 2.4GHz [Mb/s]:
150
Tx power 2.4GHz [dBm]:
28
2.4GHz MIMO:
1 x 1 SISO
Type of antenna:
Built-in
Internal antennas:
1
Antenna gain [dBi]:
20
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
24V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
3
Physical characteristics
Purpose:
Outdoor
Operating temperature [°C]:
-30 up to 75
Weight [g]:
2603
Width [mm]:
620
Height [mm]:
460
Hardware
RAM [MB]:
32
Software
Operating mode:
Client, Repeater, AP Router, Access Point, Client Router (wisp)
IPv6 support:
Transparent (bridge mode)
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Product description

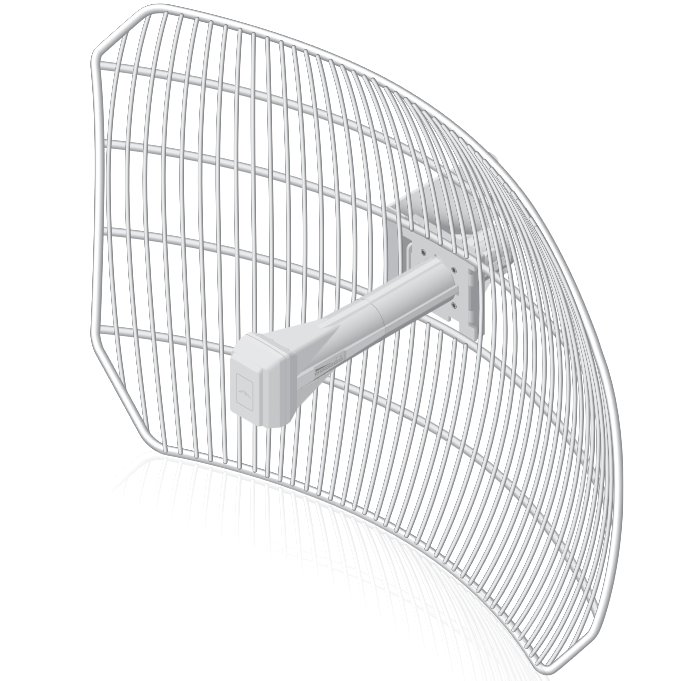

airGrid product line is very popular among ISP providers. airGrid is very powerful and stable 1x1 SISO CPE client. The device can also be used as an AP or as a WDS repeater. airGrid combines Ubiquiti’s InnerFeed and airMAX™ ( TDMA protocol) technologies to create a simple, yet extremely powerful and robust wireless CPE (Customer Premises Equipment)
AG-HP-2G20 is one polarization model works in 2.4GHz frequency band with 20dBi gain and maximum transmission rate 150Mbps.

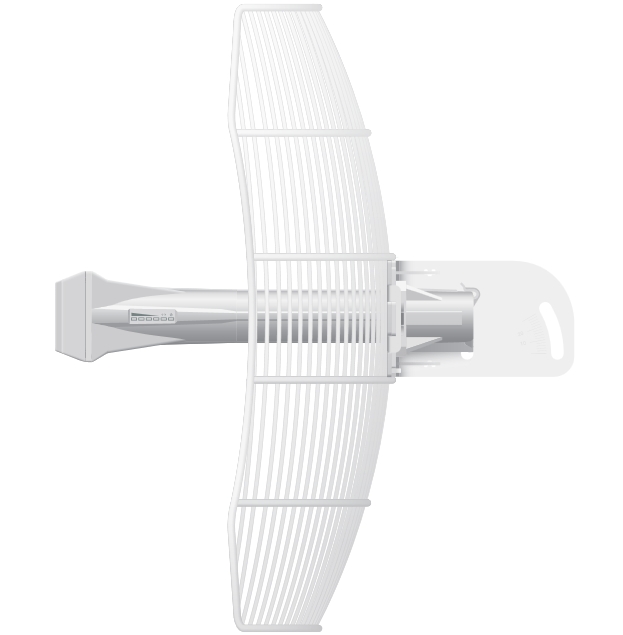

The updated mechanical design makes assembling and disassembling the airGridM, literally, a snap. No tools are required.

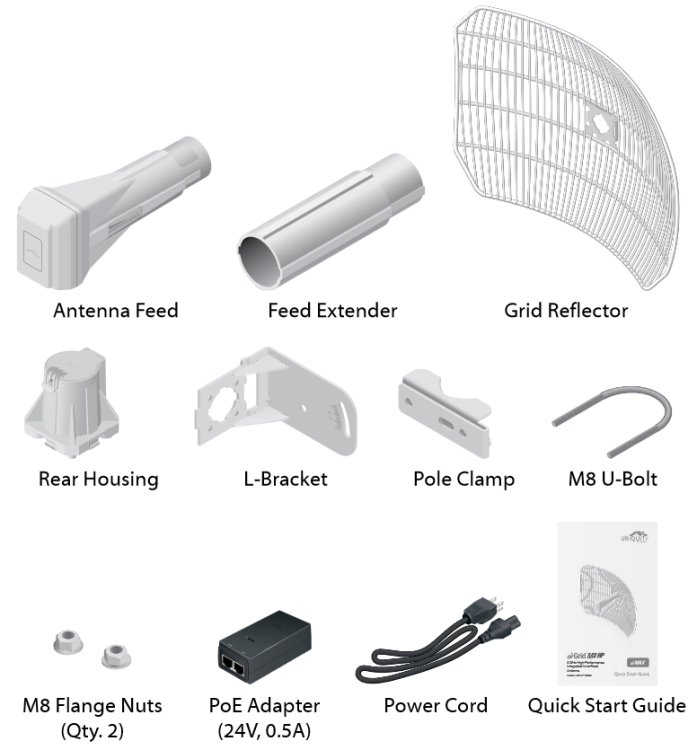

Package contains
Download
CE Datasheet Latest Firmware Návod k použití Quick Start GuideGPSR
