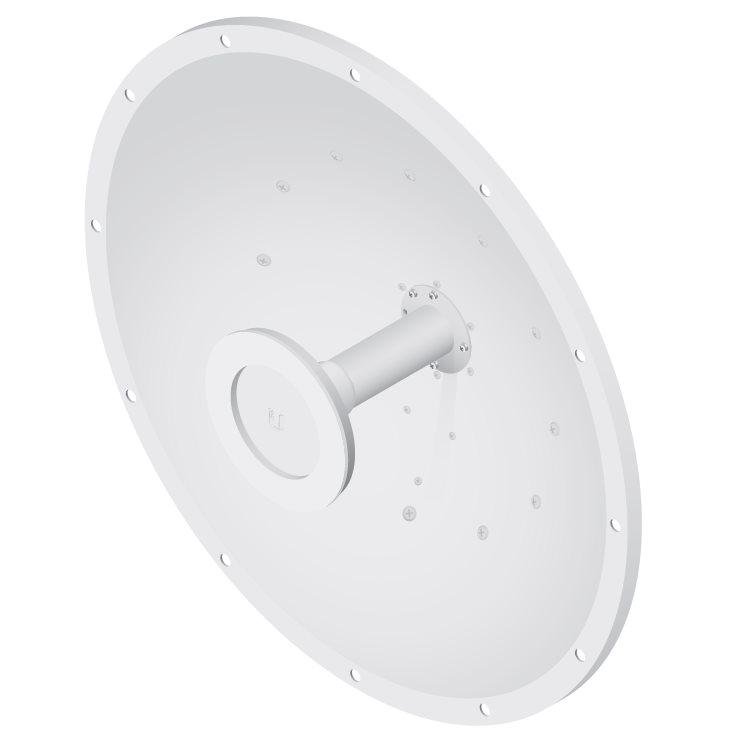

Ubiquiti airFiber Dish 26dBi, 3GHz, Slant 45
Ubiquiti airFiber Dish 26dBi, 3GHz, Slant 45
×
0/0
Your price excl. VAT
220.78 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 220.85 EUR |
| Your price incl. VAT (21%) | 267.23 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
1 piece
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10220106 | |
| Part No. | AF-3G26-S45 | |
| Warranty | 24 months | |
RAD-RD2
46.62 EUR excl. VAT
56.41 EUR incl. VAT
Ordered, unknown date
Parameters
Download
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2 (slant - 45° turned)
Polarization:
VH (slant)
VSWR:
< 1,4
Cross-Pol Isolation [dB]:
35
Wireless frequency:
3.5 GHz
Elevation beam width (-6dB) [°]:
7
Azimuth beam width (-6dB) [°]:
7
Antenna gain [dBi]:
26
Connectors and Interfaces
Rocket kit:
Yes
RF connectors:
(2) RSMA female
Physical characteristics
Antenna design:
Parabolic
Wind load [km/h]:
200
Purpose:
Outdoor
Weight [kg]:
9,8
Width [mm]:
650
Height [mm]:
650
Depth [mm]:
300
Product description
The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings. AF-3G26-S45 offers 26dBi of gain in a 650-mm diameter size.
The airFiber X supports ± 45° slant polarization for improved noise immunity and Signal-to-Noise Ratio (SNR). The airFiber X antennas are purpose-built with 45° slant polarity for seamless integration with the airFiber X.
The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks.

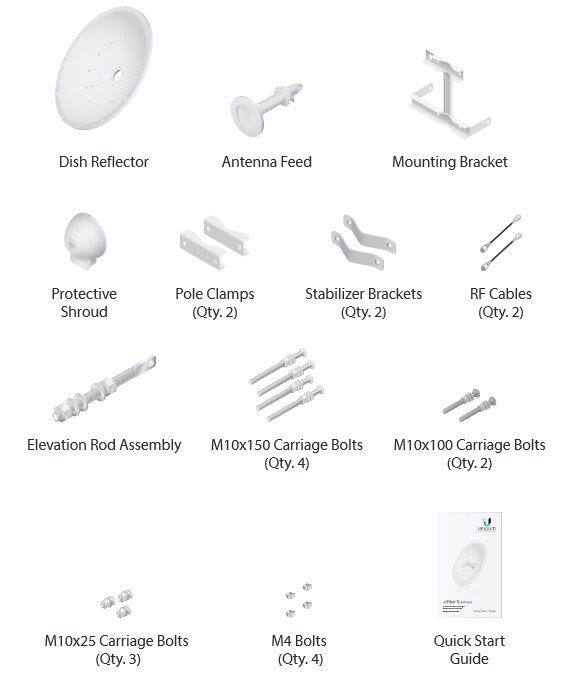

Package contains
Download
Datasheet Quick Start GuideGPSR
