Ubiquiti AirFiber AF-5, 1Gbps+ Backhaul, 5.4-5.9GHz (price per piece) - Bazar
Ubiquiti AirFiber AF-5, 1Gbps+ Backhaul, 5.4-5.9GHz (price per piece) - Bazar
×
0/0
Unpacked
-38%
Oversized transport - The shipping price will be calculated after receiving the order. Shipping price may vary depending on your delivery adress.
Your price excl. VAT
529.28 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 529.35 EUR |
| Your price incl. VAT (21%) | 640.51 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | B10220069 | |
| Part No. | B-AF-5 | |
| Warranty | 6 months | |
You have a choice of 2 variantscompare all
Rozbalené - 5.4 - 5.9GHz (Worldwide)
B-AF-5
Unpacked
529.28 EUR
ETH-SP-G2
9.98 EUR excl. VAT
12.16 EUR incl. VAT
In Stock
POE-50-60W
24.33 EUR excl. VAT
29.52 EUR incl. VAT
In Stock
CT-290-48-B
6.27 EUR excl. VAT
7.59 EUR incl. VAT
In Stock
OFTP5E24-MSC
128.93 EUR excl. VAT
156.01 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.43 EUR excl. VAT
4.15 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Sensitivity [dBm]:
-95
F/B ratio [dB]:
70
Cross-Pol Isolation [dB]:
28
Frequency range [MHz]:
5470 - 5950
Maximum modulation:
1024 QAM
Wireless frequency:
5 GHz
Transmission speed - 5GHz [Mb/s]:
1280
Tx power 5GHz [dBm]:
27
Security:
128bit AES
Elevation beam width (-6dB) [°]:
6
Azimuth beam width (-6dB) [°]:
6
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
4
Antenna gain [dBi]:
23
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps + (1) 10/100Mbps
Gigabit LAN:
Yes
GPS modul:
Yes
Other features:
RJ-12 - Alignment Tone Port
Power
Power over Ethernet:
42 .. 58V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
40
Physical characteristics
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 55
Weight [g]:
16000
Width [mm]:
468
Height [mm]:
938
Depth [mm]:
281
Software
Operating mode:
Bridge
IPv6 support:
Transparent (bridge mode)
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Product description
The goods have been unpacked, may not be in the original packaging, or the packaging may be damaged. However, the goods are complete and without any damage.
Ubiquiti introduces our proprietary INVICTUS™ core communications processing engine. The speed, power, and efficiency of this integrated circuit enhances the performance of the airFiber AF-5/AF-5U. Surpassing conventional wired backhauls, the airFiber®5 delivers real throughput of up to 1.2+ Gbps with 1024QAM modulation speed.

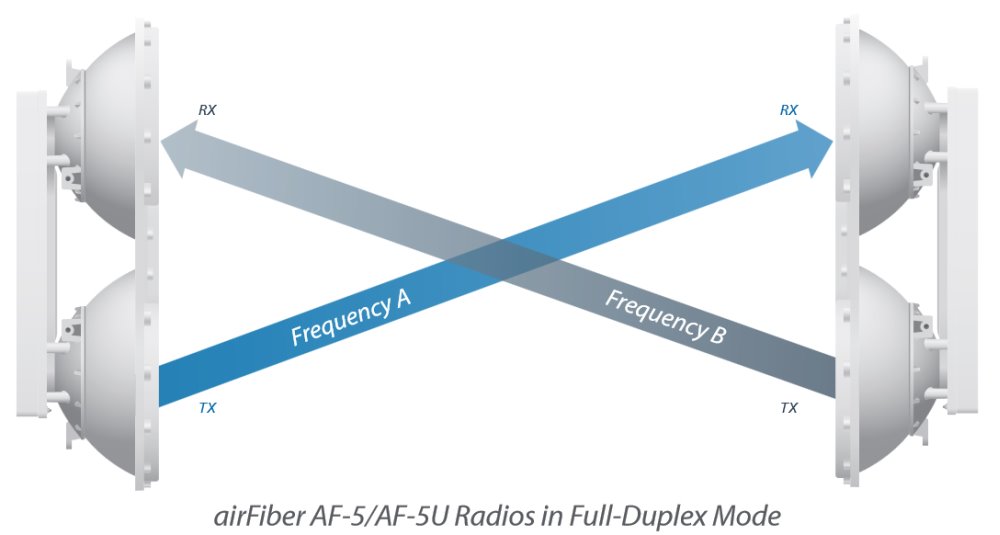

The airFiber®5 operates in worldwide, license-free, 5 GHz frequencies. Users can deploy airFiber5 almost anywhere they choose (subject to local country regulations). The airFiber®5 supports FDD (Frequency Division Duplexing) in full-duplex mode for less than 1 ms latency, resulting in increased efficiency for carrier-class network backhauls. Designed to be a high-performance backhaul, the airFiber®5 performs at a range of up to 100+ km.
Newly designed for the airFiber AF-5/AF-5U, the Radio Alignment Display (RAD) makes aiming quicker and easier. The dual, calibrated signal strength indicators display the actual signal strength on the local and remote airFiber radios in real time. The comprehensive array of radio status indicators display the following:
Main advantages

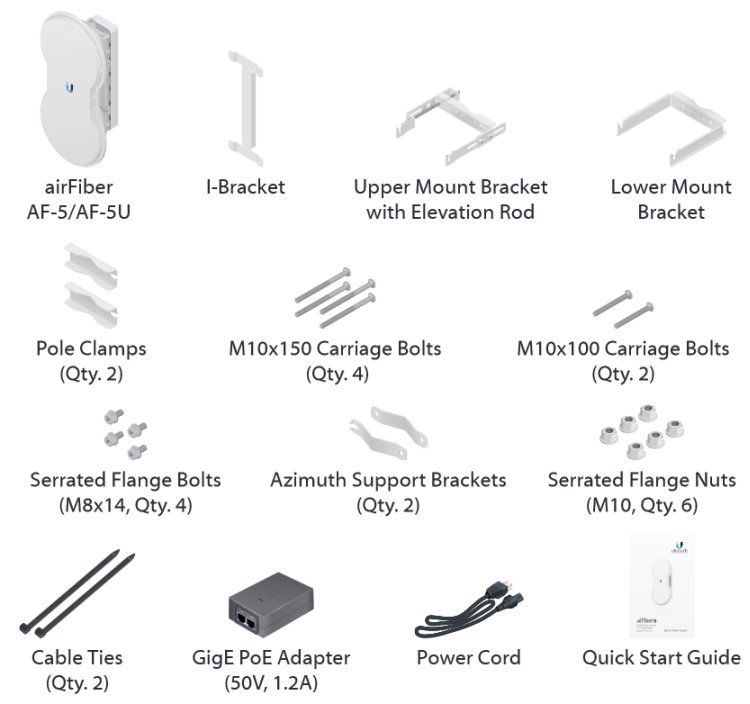

Package contains
