Ubiquiti AF60-XR, UISP airFiber 60 XR, price per piece
Oversized transport - The shipping price will be calculated after receiving the order. Shipping price may vary depending on your delivery adress.
Your price excl. VAT
976.51 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 976.58 EUR |
| Your price incl. VAT (21%) | 1 181.66 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10903486 | |
| Part No. | AF60-XR | |
| Warranty | 24 months | |
LCupc/LCupc-SMD20out
26.00 EUR excl. VAT
31.46 EUR incl. VAT
Not in stock
ML-S+85D-03
8.52 EUR excl. VAT
10.39 EUR incl. VAT
Expected 27.1.2025
ML-S+31D-10
13.77 EUR excl. VAT
16.75 EUR incl. VAT
In Stock
ML-S+2733-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-S+3327-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Channel bandwidth [MHz]:
1080, 2160
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 60GHz [Mb/s]:
2500
Security:
WPA2 AES
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Optical interfaces:
(1) 1/10Gbps
GPS modul:
Yes
Other features:
Bluetooth
Power
Power over Ethernet:
48V DC
Power type:
PoE
Max. power consumption [W]:
24
Physical characteristics
Designed for mast diameter [mm]:
40 up to 80
Radom:
Yes
Buttons:
Reset
Operating temperature [°C]:
-40 up to 55
Weight [g]:
8600
Width [mm]:
664
Height [mm]:
779
Depth [mm]:
383
Software
Operating system:
airOS GP
Product description

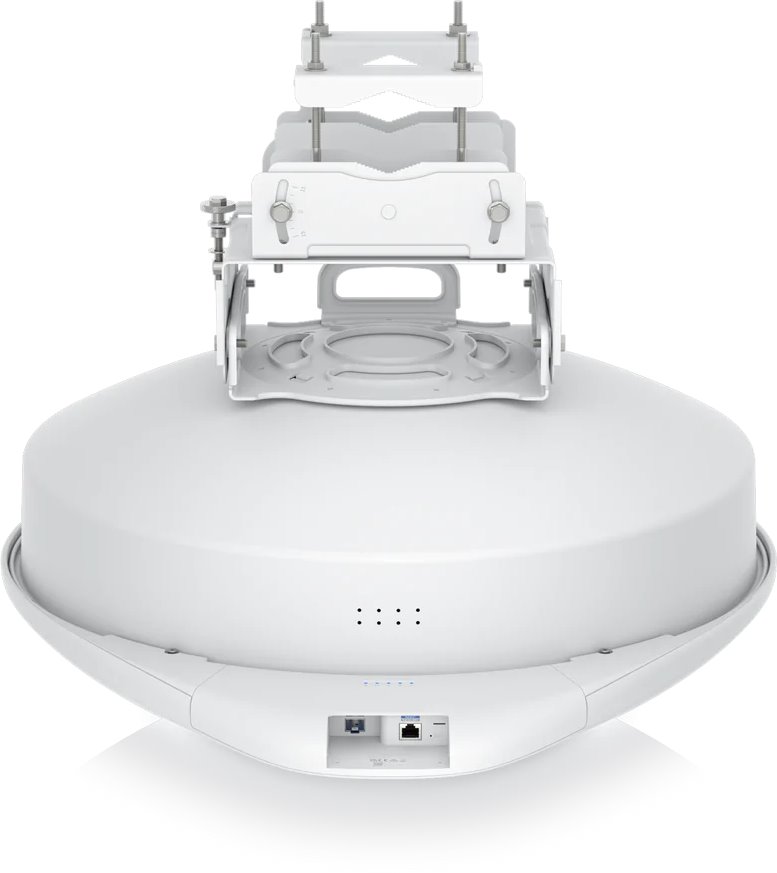

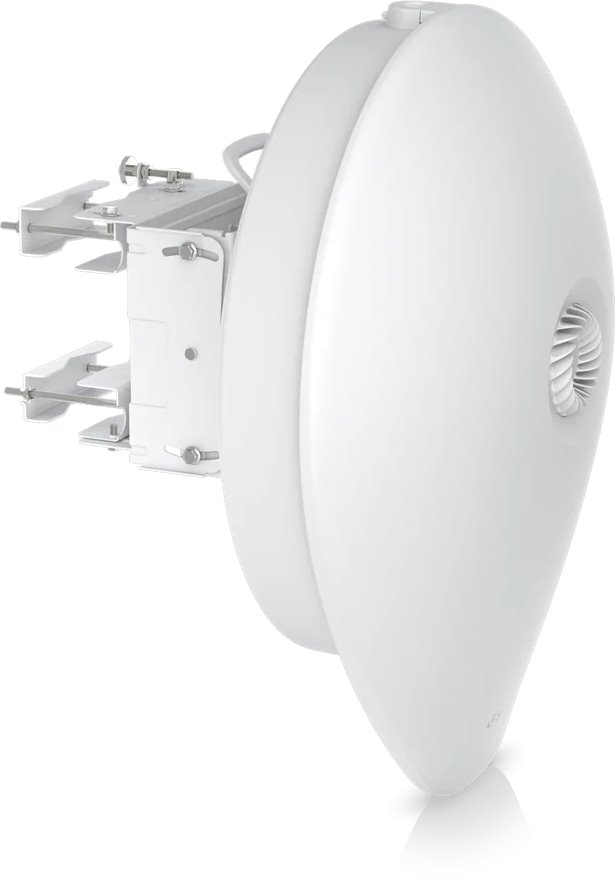

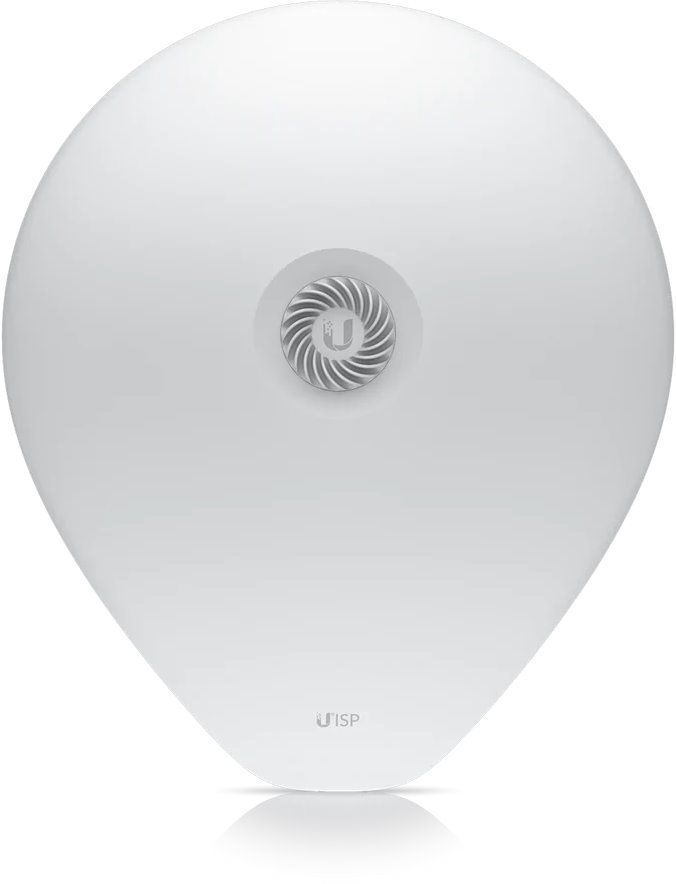

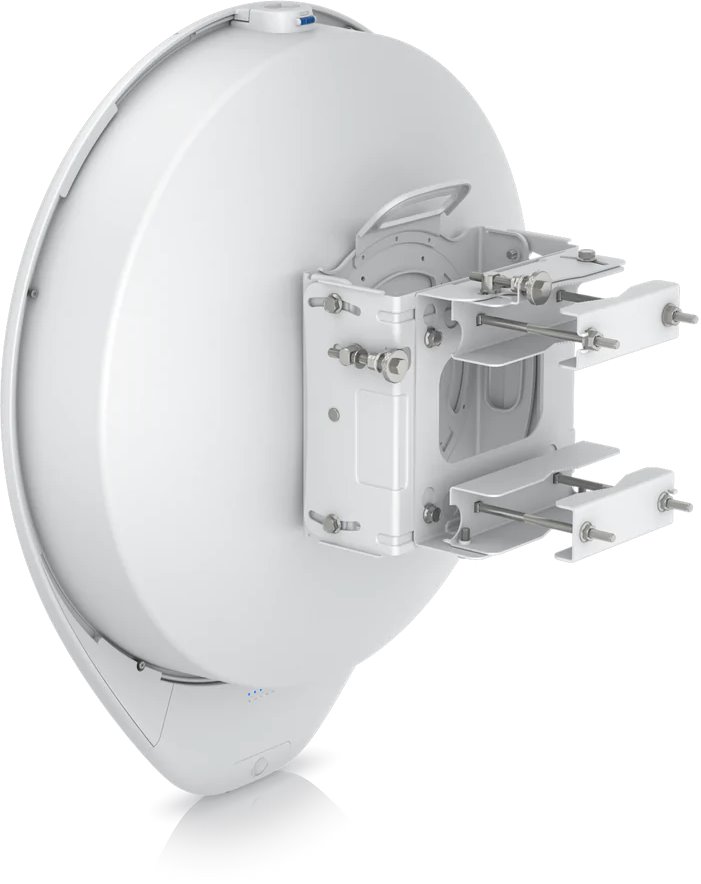

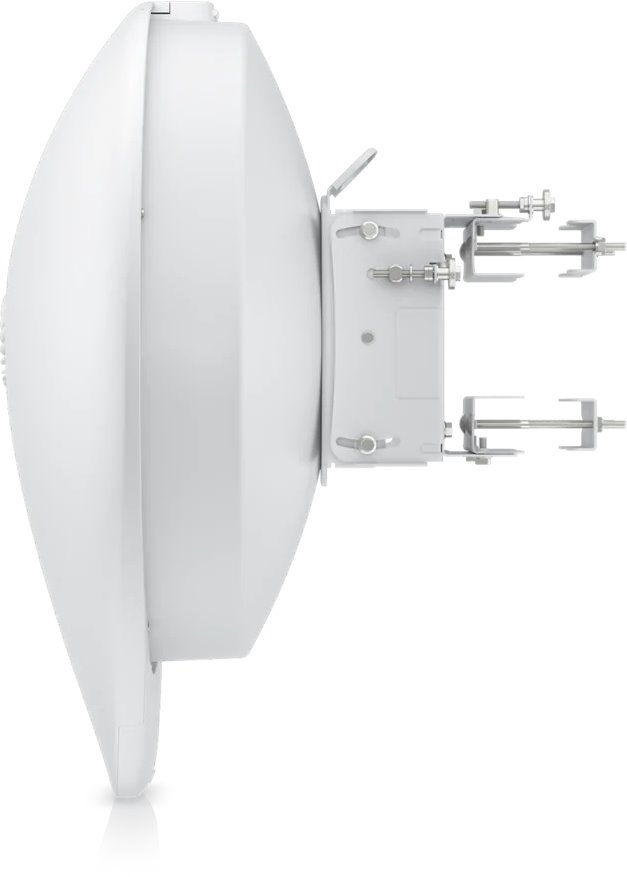

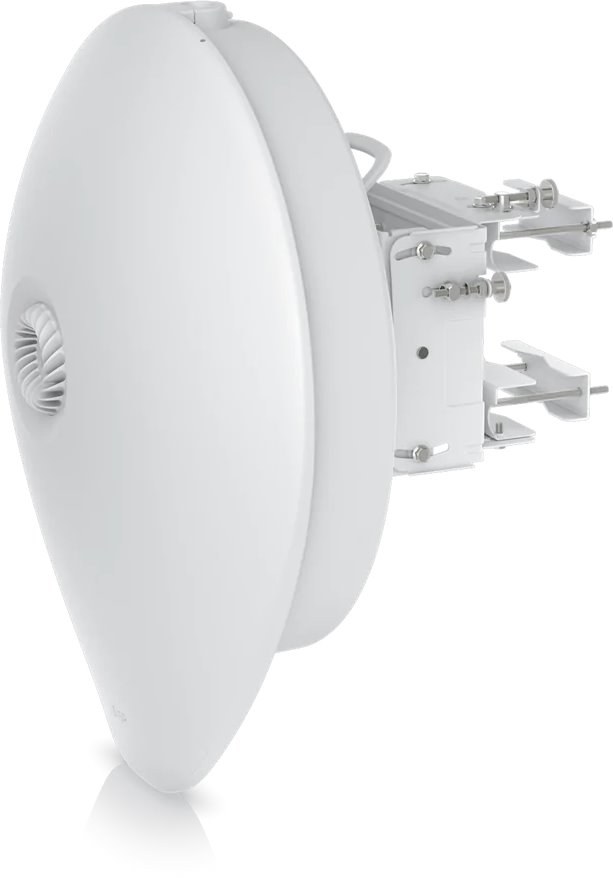

AirFiber 60 XR (AF60-XR) is a 60GHz point-to-point (PtP) device from Ubiquiti with long range up to 15+ km and is ideal for ISPs looking to maximize point-to-point speeds with cost-effective equipment. The unit is also equipped with an integrated GPS module and a Bluetooth interface for easy setup using a mobile app. A big benefit is also the 5GHz backup, which uses a parabola to receive the signal, when the antenna gain for 5GHz is 26dBi.
Key Features

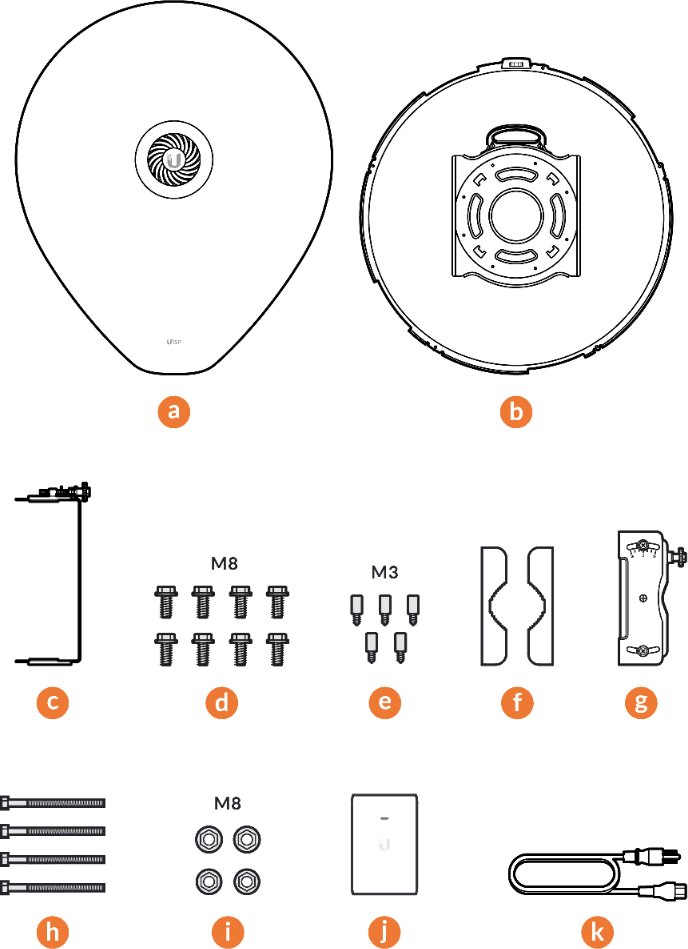

Package contents
