Ubiquiti AF-11FX, airFiber 11FX
We are sorry, this product is no longer in our offer.
AF-11-DUP-H
166.67 EUR excl. VAT
201.76 EUR incl. VAT
In Stock
AF-11-DUP-L
166.67 EUR excl. VAT
201.76 EUR incl. VAT
In Stock
JXAF-11
76.70 EUR excl. VAT
92.81 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.58 EUR excl. VAT
0.70 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.48 EUR excl. VAT
4.21 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Tx power [dBm]:
30
Frequency range [MHz]:
10700 - 11700
Maximum modulation:
1024 QAM
Channel bandwidth [MHz]:
3,5, 5, 7, 10, 14, 20, 28, 30, 40, 50, 56
Security:
128bit AES
Type of antenna:
Detachable
Detachable antennas:
4
Connectors and Interfaces
RF connectors:
(2) RSMA female
LAN speed:
(1) 10/100/1000Mbps + (1) 10/100Mbps (managment)
Power
Power over Ethernet:
50V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
36
Power via connector/terminal:
38 .. 56V DC
Physical characteristics
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 55
Weight [g]:
2260
Width [mm]:
112
Height [mm]:
327
Depth [mm]:
86
Hardware
CPU:
INVICTUS 2 IC
Software
IPv6 support:
Transparent (bridge mode)
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Video
Product description

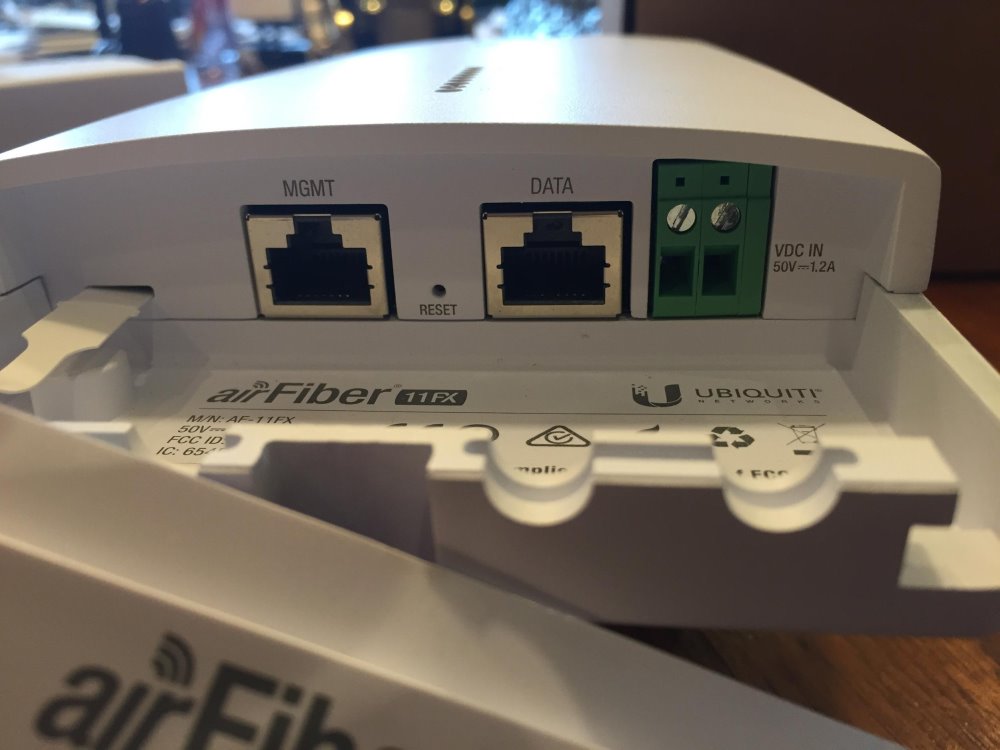

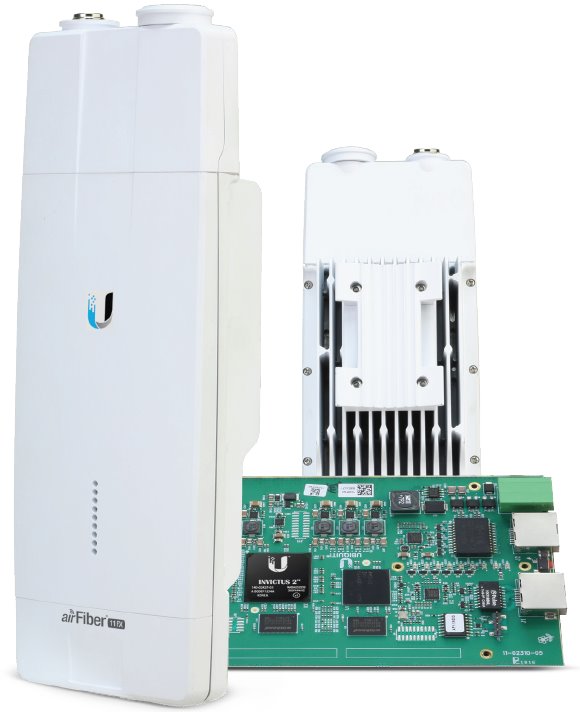

AF-11FX is fullduplex ptp device with SISO/MIMO mode. The heart of the new airFiber 11FX is INVICTUS 2 CPU designed for long distance, high transmission power up to 30dBm and throughput up to 1,2Gbps. The unit can be powered via DC terminal block (38 up to 56VDC) or via supplied passive PoE adapter (50V/1.2A).

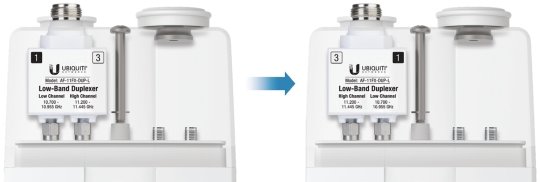

Change Tx and Rx frequency
To change Tx and Rx frequency in SISO mode is necessary rotate duplexer. Completely link will have same duplexers on both sides (Low-Low or High-High) and even in the MIMO mode. Selection of Low or High duplexers is dependent on what frequencies will be allocated from the local Telecommunication Authority.

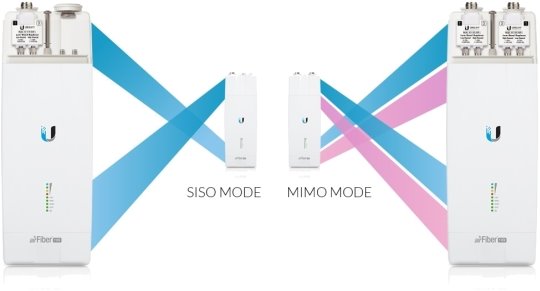

MIMO or SISO?
AirFiber 11FX can operate in SISO(1 polarization) or MIMO(2 polarization) mode, depending on the local conditions of use. For SISO mode usage is necesary buy separately low or high duplexer (depends on freqeuncy what you want to use). For MIMO usage is necessary to buy 2 same duplexers.
Duplexer
AirFiber 11FX without any duplexers works in very wide frequency band (10.7.GHz to 11.7GHz), bandwidth from 3,5 to 56MHz and using different Tx and Rx frequencies.
Package contains
Download
DatasheetTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
