TRITON 19" single-section cabinet 9U/400mm, black
TRITON 19" single-section cabinet 9U/400mm, black
×
0/0
Oversized transport - The shipping price will be calculated after receiving the order. Shipping price may vary depending on your delivery adress.
Your price excl. VAT
159.47 EUR
| Your price incl. VAT (21%) | 192.96 EUR |
|---|---|
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Triton |
|
|---|---|---|
| Code | 20247183 | |
| Part No. | RBA-09-AS4-BAX-A1 | |
| Warranty | 24 months | |
You have a choice of 3 variantscompare all
FS-A1-250-B
17.14 EUR excl. VAT
20.74 EUR incl. VAT
In Stock
LY-PP5-25
13.82 EUR excl. VAT
16.72 EUR incl. VAT
In Stock
PDU-FRS5208
22.71 EUR excl. VAT
27.53 EUR incl. VAT
In Stock
RAX-MS-X19-X1
1.17 EUR excl. VAT
1.42 EUR incl. VAT
To order within 48h
RM-4PCS-MS
0.96 EUR excl. VAT
1.16 EUR incl. VAT
In Stock
MSVH10MM
0.88 EUR excl. VAT
1.06 EUR incl. VAT
Not in stock
Parameters
Download
GPSR
Technical parameters
Physical characteristics
Recommended load [kg]:
80
Protection class:
IP20
Size:
19"
Purpose:
Indoor
"U" positions:
9
Weight [kg]:
16,1
Width [mm]:
600
Height [mm]:
500
Depth [mm]:
395
Door panel:
Glass
Color:
Black
General
Cabinet type:
Wall-mounted
Product description

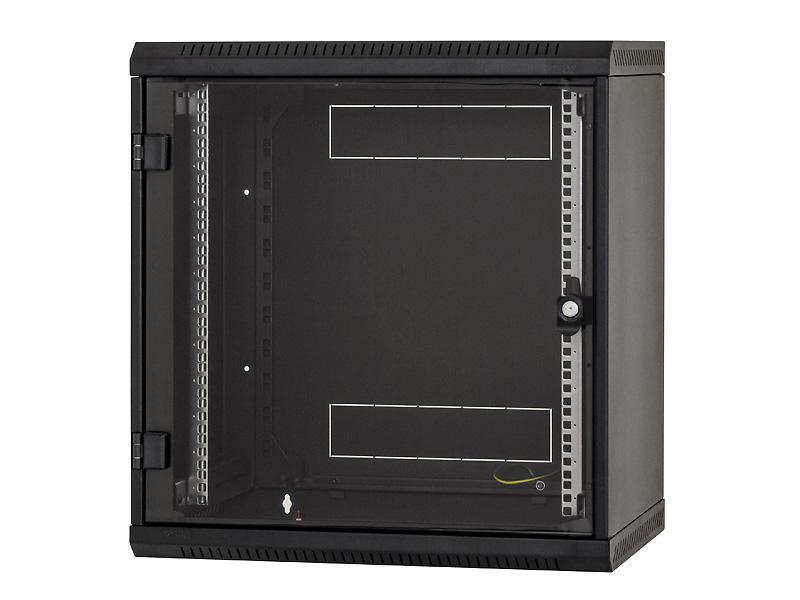

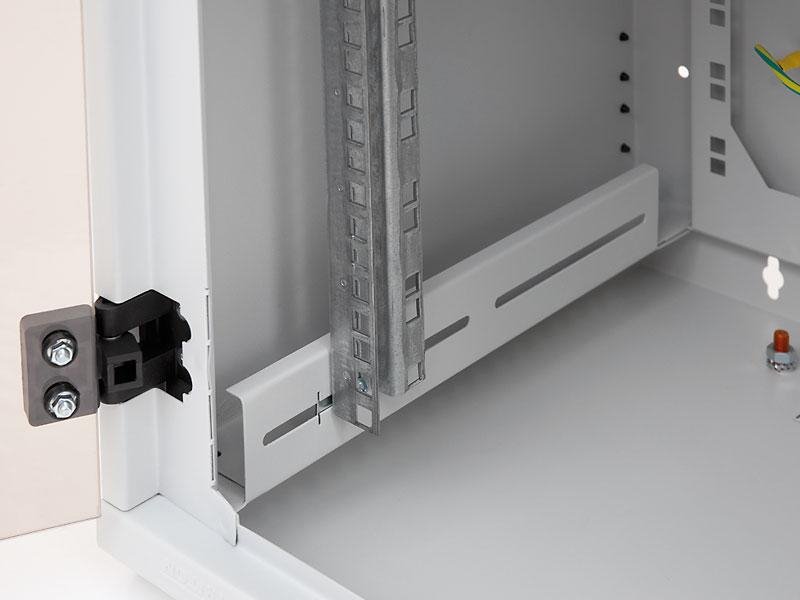

Triton RBA-09-AS4-BAX-A1 is a one-sectioned wall-mounted cabinet with a robust welded construction and lockable doors. It has a size of 9U and a depth of 395mm. The built-in hinge system allows the doors with 4mm tempered safety glass to open at an angle of 165°. Additionally, the doors can be easily removed. By rotating the entire rack, you can change the direction of door opening. The vertical 19'' rails can be smoothly adjusted to any depth within the cabinet. This facilitates equipment installation and cable management. The cabinet comes with one pair of vertical rails. The rear part of the chassis features perforations as a replacement for the second pair of rails. Alternatively, additional vertical rails can be purchased as optional accessories.

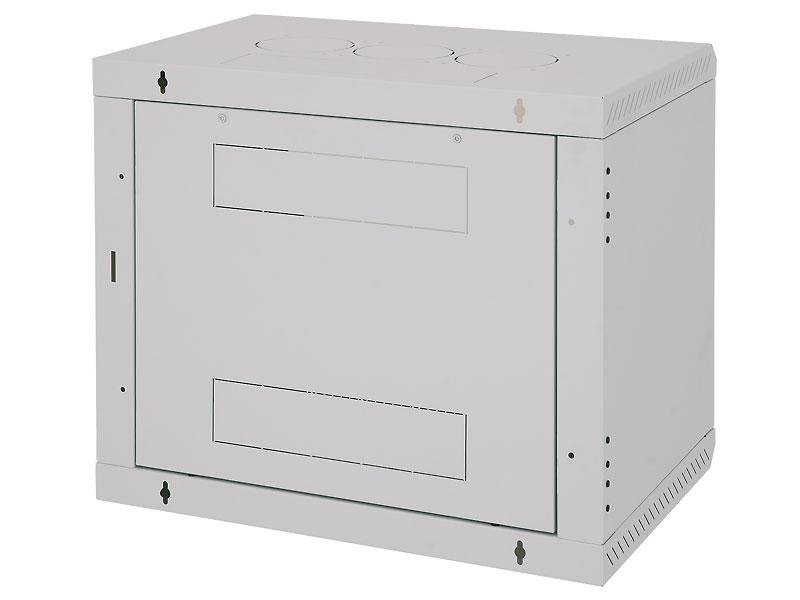

The top, bottom, and rear sections of the cabinet have cable entry points covered with break-off plugs. To prevent dust infiltration, cables in the openings can be sealed with a brush (included with the cabinet).
* For illustrative purposes, the size and design shown in the image may differ from the actual product and size of the cabinet.
Download
Datasheet CZ Datasheet ENGPSR
