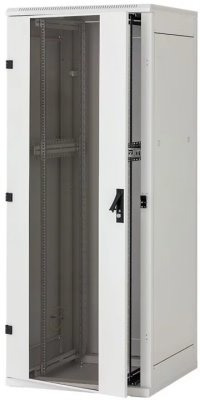

TRITON 19 "rack cabinet 42U / 600x1200

Product description

Specifications:

42U rack cabinet 600x1200, glass doors

Cabinet for data and telecommunication purposes proven time

19 "rack cabinet with IP 20

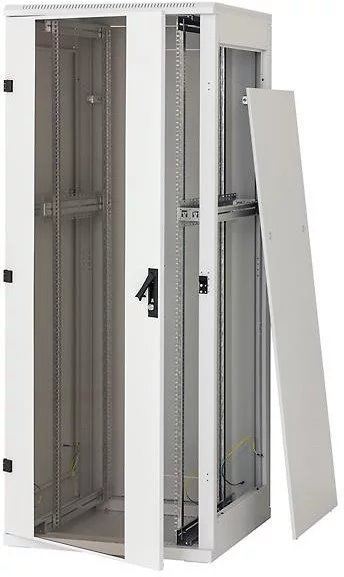

RMA has a robust welded construction. High quality processing and the newest technologies ensure a perfect look of the cabinet. The hinge system allows the door opening angle of almost 180 degrees. Doors can be easily disassembled and rebuilt on the opposite side of the opening.
19 "vertical rails can be adjusted freely in any depth of the cabinet. This facilitates the installation and configuration of connecting cables.
RMA is a cabinet with a welded frame and removable side panels. These are just like the rear cover fixed to the frame locks standardněs single key.

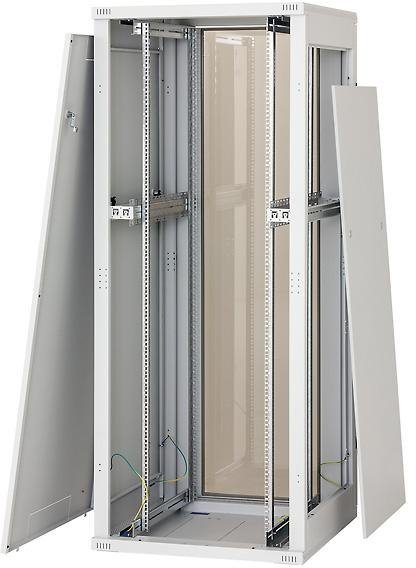

Removable side panels

Removable side and rear covers standard secure locks on the same key as the front door.

Breakout plugs

The large hole covered by break-out panel allows installation and removal of fan units outside Triton rack without using screws.
Cable entry at the rear of the cabinet are covered with breakout-type blanking. Dust cover cables can plug in the hole sealed with a brush. To protect cables from damage used plastic frame (both included in the cabinet-mounted).

Legs, wheels

The rack can be placed on leveling feet (included in kit), mounting wheels (capacity 200 kg / set) and heavy-duty casters (capacity 800 kg / set).
In this type of rack you can order a special metal door with a preparation for installation of ventilation units RAX-CH-xxx-X3.

Dimensions:
Height 2105 mm
600mm
depth 1200 mm
weight 115 kg

Material:
Safety tempered glass thickness. 4 mm
Sheet steel

Part pack:
Key - removable covers 2x
Key - front door 2x
Floating nut M6 16x
Dust 1x Dummy
Adjusting screw / foot for switchboard 4x
Nut M10 4x
