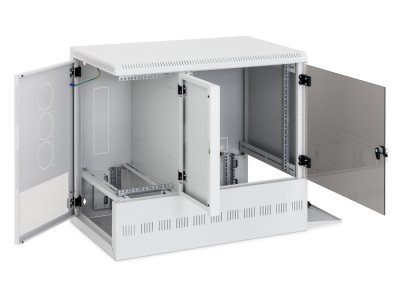

TRITON 19 "rack 12U / 400 mm - 3 sections 6U 12U 2U, 900x540mm
TRITON 19 "rack 12U / 400 mm - 3 sections 6U 12U 2U, 900x540mm
×
0/0
Oversized transport - The shipping price will be calculated after receiving the order. Shipping price may vary depending on your delivery adress.
Your price excl. VAT
289.06 EUR
| Your price incl. VAT (21%) | 349.76 EUR |
|---|---|
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Triton |
|
|---|---|---|
| Code | 20093966 | |
| Part No. | RFA-12-A95-CAX-A12 | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
540mm
RFA-12-A95-CAX-A12
289.06 EUR
PDU-FRS5208
22.38 EUR excl. VAT
27.13 EUR incl. VAT
In Stock
LY-PP5-25
13.62 EUR excl. VAT
16.48 EUR incl. VAT
In Stock
FS-A1-250-B
17.13 EUR excl. VAT
20.73 EUR incl. VAT
In Stock
RM-4PCS-MS
0.95 EUR excl. VAT
1.15 EUR incl. VAT
In Stock
MSVH10MM
0.87 EUR excl. VAT
1.05 EUR incl. VAT
In Stock
Parameters
Technical parameters
Physical characteristics
Recommended load [kg]:
50
Ventilation option:
Yes
Protection class:
IP20
Size:
19"
Purpose:
Indoor
"U" positions:
6 + 12 + 2
Weight [kg]:
38,4
Width [mm]:
900
Height [mm]:
700
Depth [mm]:
540
Removable sides:
Yes
Door panel:
Glass, Sheet
Color:
Grey
General
Cabinet type:
Wall-mounted
Product description
Specifications:
RFA - unique solution for small and medium businesses.
Allows you to install a very large device into the wall cabinet.
1st section:
The first section allows installing 19 "maximum height 6U and depth of 540 mm. The device is placed vertically and 19 "rails are adjustable within the entire depth of the cabinet. On the rear wall
the cable entry as well as upper and lower walls of the cabinet. Passage of cables between sections allow penetrations to the central counter. All cable entries have removable caps.
Section 2:
In the second section with mounting width 19 ", height 12U and depth of 540 mm mounting rails are infinitely adjustable. This section is usually centered structured cabling and active elements of the corporate network. Here the distribution of individual services on jobs. Recommended capacity is up to 48 jobs (2 ports each serviced according to standards).
3rd section
The third section covers the whole surface of the bottom wall of the cabinet. There is space for equipment with a maximum depth of 800 mm, a width of 19 "and height depending on the model cabinet 2 to 7 Unit. Access to this section is a door on the right side of cabinet. In addition to the cabinet, it is necessary to maintain sufficient space to pull equipment.
FLEXIBLE DOOR
The hinge system allows the door opening angle of almost 180 degrees.
ADJUSTABLE VERTICAL RAILS
One pair of 19 "vertical rails is infinitely adjustable in any depth of the cabinet. This facilitates the installation and configuration of connecting cables.
To the strength
Cabinet has a robust welded construction. High quality processing and the newest technologies ensure a perfect look of the cabinet.
BOTTOM SECTION FOR SERVERS
19 "section at the bottom of the rack is designed for installing servers and other devices on retractable skids. May have a capacity of 2 to 7 Unit. Each section is closed cabinet lock, on request with a unique key.
INSTALLATION OF SERVERS
Rack-mount servers or similar devices with a depth of up to 800 mm with the rack mounted using special telescopic slides, which are specific to each device and are not part of the cabinet.
COOLING installed equipment
Cooling airing due to perforation of the skeleton and the side door can be supported by installing fans for wall-mounted cabinets ( RAX-CH-X07 )
