TRITON 19 "piece 6U rack / 400 mm
TRITON 19 "piece 6U rack / 400 mm
×
0/0
Oversized transport - The shipping price will be calculated after receiving the order. Shipping price may vary depending on your delivery adress.
Your price excl. VAT
119.86 EUR
| Your price incl. VAT (21%) | 145.03 EUR |
|---|---|
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Triton |
|
|---|---|---|
| Code | 20093952 | |
| Part No. | RBA-06-AS4-CAX-A1 | |
| Warranty | 24 months | |
You have a choice of 8 variantscompare all
6U
RBA-06-AS4-CAX-A1
119.86 EUR
PDU-FRS5208
22.36 EUR excl. VAT
27.10 EUR incl. VAT
In Stock
LY-PP5-25
13.61 EUR excl. VAT
16.47 EUR incl. VAT
In Stock
FS-A1-250-B
17.16 EUR excl. VAT
20.76 EUR incl. VAT
In Stock
RM-4PCS-MS
0.95 EUR excl. VAT
1.15 EUR incl. VAT
In Stock
MSVH10MM
0.87 EUR excl. VAT
1.05 EUR incl. VAT
In Stock
Parameters
Technical parameters
Physical characteristics
Recommended load [kg]:
30
Ventilation option:
Yes
Protection class:
IP30
Size:
19"
Purpose:
Indoor
"U" positions:
6
Weight [kg]:
13,6
Width [mm]:
600
Height [mm]:
370
Depth [mm]:
395
Door panel:
Glass
Color:
Grey
General
Cabinet type:
Wall-mounted
Product description
Specifications:

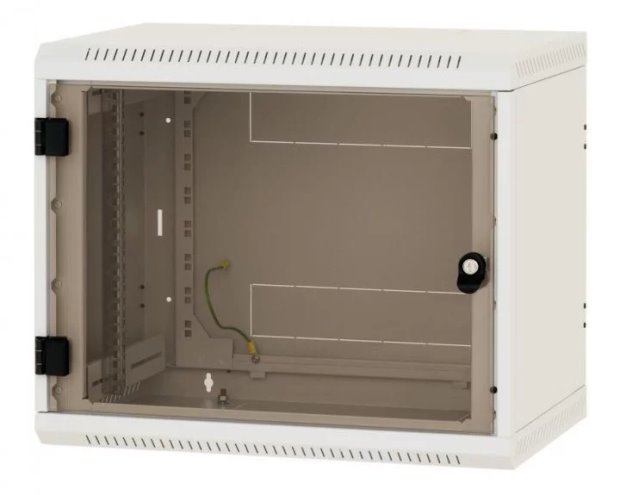

The distributor Delta B is celosvařený piece wall-mounted cabinet with glass door, which is made possible by massive hinges open at an angle of almost 180 degrees. An important part of the product are openings for cables that are placed on upper and lower wall. Another two openings are located on the rear wall of the cabinet. The holes are filled in with breakout-type blanking, which can be broken out using eg. A screwdriver.
19 "devices are installed on vertical rails that can be seamlessly as needed to melt into the depth of the cabinet body. The perforation is provided by natural air circulation and cooling components.
The exact dimensions and other technical data are given below (values ??of R1 and R2 denote spacing of the mounting holes for hanging rack on the wall). Maximum load rack is 30 kg.
Dimensions:
A - 370 mm
B - 265 mm
C - 490 mm
D - 600 mm
E - 395 mm
R1 - 324 mm
R2 - 420 mm
Weight - 14.8 kg
Part pack:
Key - front door 2x
Screw 6x50 4x
Washer 6,6 4x
Dowel 10 4x
Plastic washer 8x
Floating nut M6 8x
Screw M6x16 8x
Dust 1x Dummy
