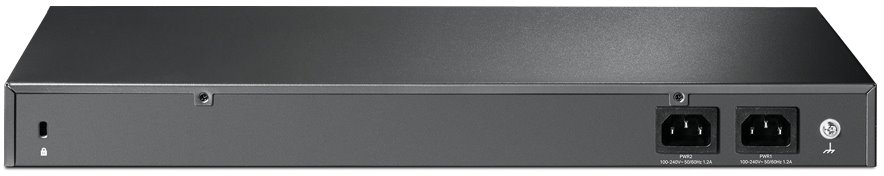

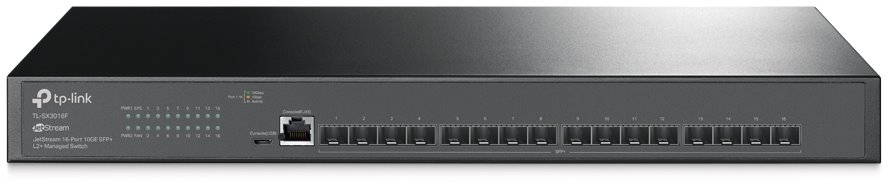

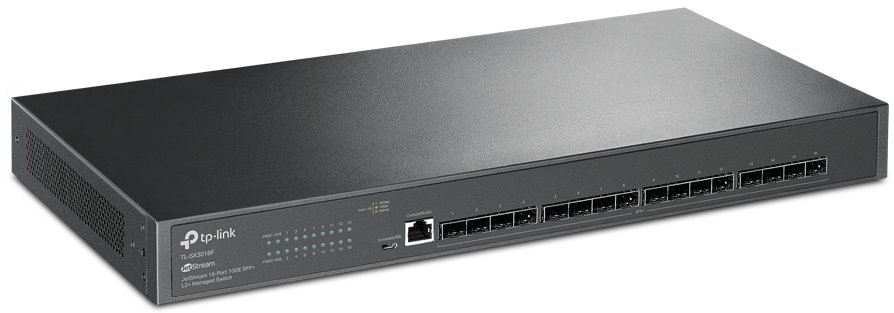

TP-Link TL-SX3016F JetStream Switch

TP-Link TL-SX3016F JetStream Switch
TP-Link TL-SX3016F JetStream Switch
×
0/0
TP-Link TL-SX3016F JetStream Switch
TP-Link TL-SX3016F JetStream Switch
TP-Link TL-SX3016F JetStream Switch
TP-Link TL-SX3016F JetStream Switch
TP-Link TL-SX3016F JetStream Switch
TP-Link TL-SX3016F JetStream Switch

Your price excl. VAT
566.08 EUR
Recycling fee 0.03 EUR
Your price with RF 566.11 EUR
Your price incl. VAT (21%) 684.99 EUR
blank
In Stock
PlzeňIn Stock
Availability
at our branches
Manufacturer

TP-Link

Code10410704
Part No.SX3016F
Warranty 60 months
  • Related products12
TP-Link OC200 - Omada Cloud Controller
OC200

98.93 EUR excl. VAT
119.75 EUR incl. VAT
In Stock
TP-Link OC300 - Omada Hardware Controller
OC300

206.17 EUR excl. VAT
249.51 EUR incl. VAT
In Stock
Gembird Power cord 230V, 1,8m, angled
PC-186A-VDE

4.46 EUR excl. VAT
5.40 EUR incl. VAT
In Stock
MaxLink 10G SFP+ optical module, MM, 850nm, 300m, 2x LC connector, DDM
ML-S+85D-03

8.52 EUR excl. VAT
10.39 EUR incl. VAT
Expected 27.1.2025
MaxLink 1.25G SFP optical module, SM, 1310nm, 3km, 2x LC connector, DDM
ML-S31D-3

6.29 EUR excl. VAT
7.70 EUR incl. VAT
In Stock
MaxLink 1.25G SFP optical module, MM, 850nm, 550m, 2x LC connector, DDM
ML-S85D-05

6.57 EUR excl. VAT
8.03 EUR incl. VAT
In Stock
MaxLink 10G SFP+ optical module, SM, 1310nm, 10km, 2x LC connector, DDM
ML-S+31D-10

13.77 EUR excl. VAT
16.75 EUR incl. VAT
In Stock
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20KM, 1x LC connector, DDM
ML-S3155-20

6.29 EUR excl. VAT
7.70 EUR incl. VAT
In Stock
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDM
ML-S+2733-10

18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDM
ML-S+3327-10

18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
MaxLink 1.25G SFP optical module, SM, 1310nm, 20km, 2x LC connector, DDM
ML-S31D-20

6.57 EUR excl. VAT
8.03 EUR incl. VAT
Expected 27.1.2025
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDM
ML-S5531-20

8.64 EUR excl. VAT
10.54 EUR incl. VAT
In Stock
show moreshow less 7
Parameters
Download
GPSR

Product description

TL-SX3016F is an optical switch to a 19" rack with a height of 1U, which provides 16x 1G/10G SFP+ ports, two console ports (RJ45 and microUSB) and two redundant built-in power resources to increase the reliability of the entire switch. For administration and monitoring is possible to use common access via web interface and protocols such as CLI, SNMP, RMO, as well as centralized cloud management and software controller. The Omada hardware controller (OC200 / OC300) is also supported.

Switch loaded with functions

The switch provides high-performance routing based on IP, MAC, TCP, or UDP. All in combination with advanced security strategies (IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication ...). With all these advanced features, the gigabit L2 + JetStream switch is the ideal choice for SMB solutions.

Package Contents

  • Device
  • (2) Power cord
  • 19" rack mounts

Download

Datasheet

GPSR

Contact:
TP-LINK Czech s.r.o.
Pekařská 695/10, 155 00 Praha 5
support.cz@tp-link.com

Bussines information

Luděk Merta, +420 722 926 224 , ludek.merta@discomp.cz

Technical parameters

Connectors and Interfaces

Optical interfaces: (16) 1G/10Gbps
Serial port: micro USB, RJ45

Power

Power type: Mains power (230V)
Redundant power supply: Yes
Max. power consumption [W]: 33
Power via connector/terminal: 230V AC

Physical characteristics

Design: Rackmount
Fans: Yes
Chassis design: Metal
Operating temperature [°C]: 0 up to 45
Width [mm]: 440
Height [mm]: 44
Depth [mm]: 220

General

Switchning capacity [Gbps]: 320
MAC address table: 32000
Jumbo frame [Bytes]: 9000
Packet forwarding rate [Mpps]: 238,1

Software

Web management: Yes
Management: Web management, Omada controller, SSH, Telnet
Features: VLAN, QoS, DHCP snooping
Default IP address: 192.168.0.1
Default login and password: admin / admin
