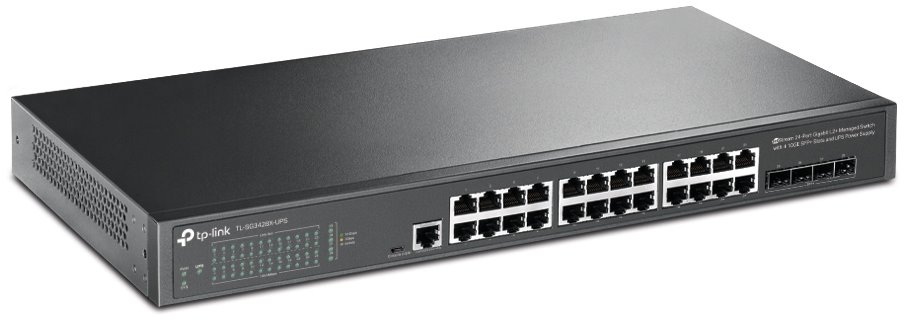

TP-Link TL-SG3428X-UPS JetStream Switch with UPS
TP-Link TL-SG3428X-UPS JetStream Switch with UPS
×
0/0
Your price excl. VAT
306.71 EUR
| Recycling fee | 0.03 EUR |
|---|---|
| Your price with RF | 306.74 EUR |
| Your price incl. VAT (21%) | 371.16 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 10410822 | |
| Part No. | SG3428X-UPS | |
| Warranty | 60 months | |
RS-50-12
14.88 EUR excl. VAT
18.10 EUR incl. VAT
In Stock
SBL 12-12L
29.53 EUR excl. VAT
35.73 EUR incl. VAT
In Stock
MLB-A12-28
44.49 EUR excl. VAT
53.83 EUR incl. VAT
In Stock
ML-S+85D-03
8.45 EUR excl. VAT
10.31 EUR incl. VAT
In Stock
ML-S+31D-10
13.66 EUR excl. VAT
16.61 EUR incl. VAT
In Stock
ML-S+2733-10
18.56 EUR excl. VAT
22.54 EUR incl. VAT
In Stock
ML-S+3327-10
18.56 EUR excl. VAT
22.54 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.43 EUR excl. VAT
4.15 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Connectors and Interfaces
LAN speed:
(24) 10/100/1000Mbps
Optical interfaces:
(4) 10Gbps
Serial port:
micro USB, RJ45
Power
Power type:
DC terminal, Mains power (230V), Battery
Max. power consumption [W]:
24
Power via connector/terminal:
12V DC, 230V AC
Physical characteristics
Design:
Rackmount
Fans:
No
Chassis design:
Metal
Operating temperature [°C]:
0 up to 45
Width [mm]:
440
Height [mm]:
44
Depth [mm]:
180
General
Switchning capacity [Gbps]:
128
MAC address table:
16000
Jumbo frame [Bytes]:
9000
Packet forwarding rate [Mpps]:
95
Software
Web management:
Yes
Management:
Web management, SSH, Telnet, Omada controller
Features:
VLAN, QoS, DHCP snooping
Default IP address:
192.168.0.1
Default login and password:
admin / admin
Product description

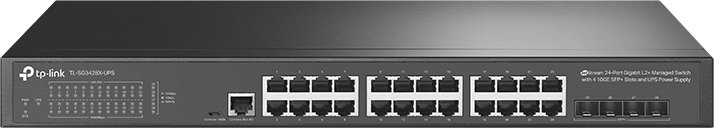

TL-SG3428X-UPS provides 24x 10/100/1000 Mbps LAN ports. Additionally, 4x 10G SFP+ slots are also available. For management and monitoring, it is possible to use common access via web interface and protocols, e.g. CLI, SNMP, RMO, but also centralized cloud management and software controller. The hardware Omada controller (OC200/OC300) is also supported.

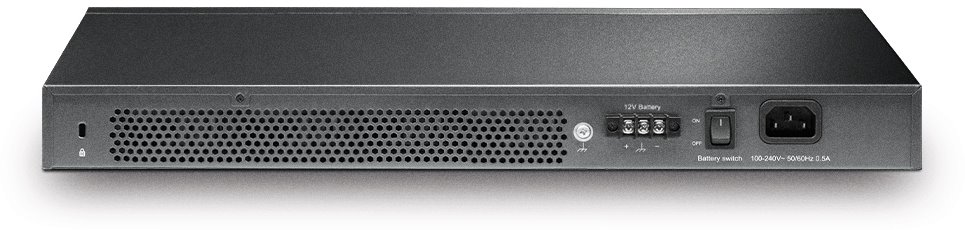

Compared to the classic version, in addition to the standard 230V AC power supply, this switch has UPS option, i.e. battery connection ( at least 4.5Ah) in case of failure of the primary 230V AC power supply including battery charging. The switch can also be connected by disconnecting the 230V AC and connecting the switch only to a 12V DC source on the terminals intended for the battery.
Omada Controller
The Omada Software Defined Networking (SDN) platform integrates network devices, including Access Points, Switches, Gateway routers and provides 100% centralized management in the cloud. Omada creates a highly scalable network including control from a single interface. Provides seamless wireless and wired connectivity, ideal for use in hospitality, education, retail, offices and more.
Package contents
Download
DatasheetTechnical support for TP-LINK products is available at support.cz@tp-link.com email or on telephone number (+420) 212 812 622. Both services are available on working days between 9:00 and 17:00 with the first response to the latest 24 hours.
