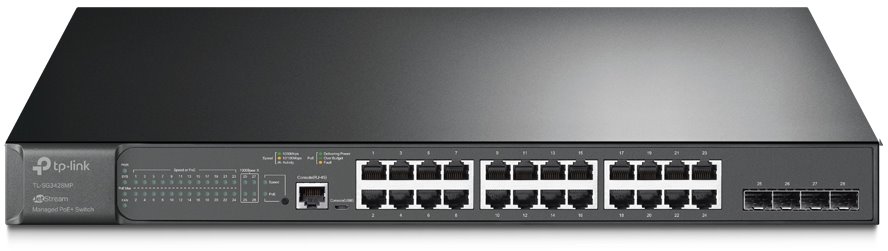

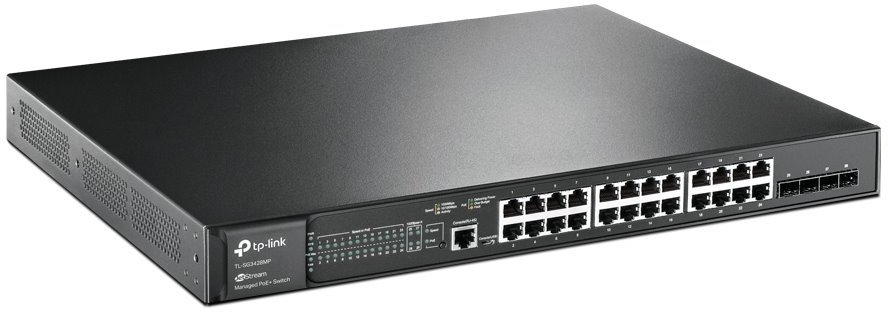

TP-Link TL-SG3428MP JetStream PoE Switch

TP-Link TL-SG3428MP JetStream PoE Switch
TP-Link TL-SG3428MP JetStream PoE Switch
×
0/0
TP-Link TL-SG3428MP JetStream PoE Switch
TP-Link TL-SG3428MP JetStream PoE Switch
TP-Link TL-SG3428MP JetStream PoE Switch
TP-Link TL-SG3428MP JetStream PoE Switch
TP-Link TL-SG3428MP JetStream PoE Switch
TP-Link TL-SG3428MP JetStream PoE Switch

Your price excl. VAT
419.19 EUR
Recycling fee 0.03 EUR
Your price with RF 419.22 EUR
Your price incl. VAT (21%) 507.26 EUR
blank
In Stock
PlzeňIn Stock
Availability
at our branches
Manufacturer

TP-Link

Code10410596
Part No.SG3428MP
Warranty 60 months
  • Related products3
Gembird Power cord 230V, 1,8m, angled
PC-186A-VDE

4.46 EUR excl. VAT
5.40 EUR incl. VAT
In Stock
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR

Product description

TP-Link TL-SG3428MP is a fully manageable L2 switch from the JetStream family and is equipped with 24 Gigabit LAN ports with 802.3af/at PoE support, 4x SFP and two console ports (USB / RJ45). PoE Out works on all metallic ports and allows to power devices with consumption up to 30W/port and the total PoE budget switch is 384W. Thanks to the rackmount design, the switch can be installed in a 19" rack. The switch also offers high performance, enterprise-class QoS network traffic management, useful security strategies and rich Layer 2 management features. Management supports IPv6, VLAN, QoS, DHCP snooping and many other features.

Package contains

  • Device
  • Power cord
  • Rackmount ears

Download

Datasheet

GPSR

Contact:
TP-LINK Czech s.r.o.
Pekařská 695/10, 155 00 Praha 5
support.cz@tp-link.com

Bussines information

Luděk Merta, +420 722 926 224 , ludek.merta@discomp.cz

Technical parameters

Connectors and Interfaces

LAN speed: (24) 10/100/1000Mbps
Optical interfaces: (4) 1000Mbps
Serial port: micro USB, RJ45

Power

Power type: Mains power (230V)
PoE type: PoE-Out (only)
PoE-Out standards: 802.3af, 802.3at
PoE Out ports: 24
PoE budget [W]: 384
Max. power consumption [W]: 31
Power via connector/terminal: 230V AC

Physical characteristics

Design: Rackmount
Fans: Yes
Chassis design: Metal
Buttons: Status (Speed / PoE)
Operating temperature [°C]: 0 up to 45
Width [mm]: 440
Height [mm]: 44
Depth [mm]: 330

General

Switchning capacity [Gbps]: 56
MAC address table: 8000
Jumbo frame [Bytes]: 9000
Packet forwarding rate [Mpps]: 41,6

Software

Web management: Yes
Management: Web management, Omada controller
Features: VLAN, QoS, DHCP snooping
Default IP address: 192.168.0.1
Default login and password: admin / admin
