TP-Link TL-SG116P Switch, 16x PoE, 120W

TP-Link TL-SG116P Switch, 16x PoE, 120W
TP-Link TL-SG116P Switch, 16x PoE, 120W
×
0/0
TP-Link TL-SG116P Switch, 16x PoE, 120W
TP-Link TL-SG116P Switch, 16x PoE, 120W
TP-Link TL-SG116P Switch, 16x PoE, 120W
TP-Link TL-SG116P Switch, 16x PoE, 120W

Your price excl. VAT
144.62 EUR
Recycling fee 0.03 EUR
Your price with RF 144.65 EUR
Your price incl. VAT (21%) 175.03 EUR
blank
In Stock
PlzeňIn Stock
Externí sklad EATo order within 48h
Externí sklad EUTo order within 48h
Availability
at our branches
Manufacturer

TP-Link

Code10410874
Part No.TL-SG116P
Warranty 60 months
You have a choice of 2 variantscompare all
TP-Link TL-SG116P Switch, 16x PoE, 120W
(16) PoE
TL-SG116P
144.62 EUR
In Stock
TP-Link TL-SG116 Switch
(16) LAN
TL-SG116
58.14 EUR
In Stock
  • Related products2
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download

Product description

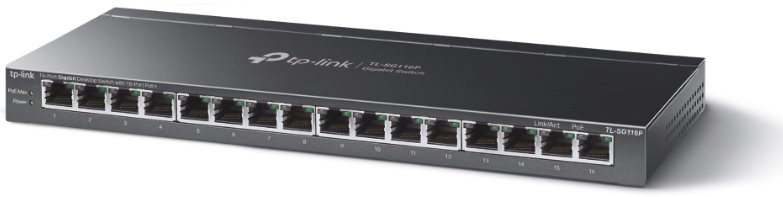

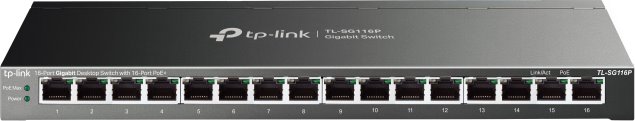

TP-Link TL-SG116P is a specially designed desktop unmanaged PoE switch for network monitoring, switching and power supply of active elements. This switch contains 16x 10/100/1000 Mbps LAN ports and supports 802.3af/at (max. 30W/port) PoE on all ports with a total budget of 120W . On ports 1-4, it also supports the Long Range PoE function, which enables power supply and communication at a distance of up to 300m, which is achieved thanks to lowering the line speed to 10Mbps.

Plug and Play technology, without the need for configuration, facilitates the use of the product. In addition, the TL-SG116P stands out for its lower energy consumption.

Key features

  • (16) 10/100/1000 Mbps LAN
  • (16) 802.3af/at (max. 30W/port)
  • Total PoE budget 120W
  • High Priority Ports: Port 1-4
  • Long range PoE: Port 1-4 (PoE at a distance of 300m)
  • Isolation mode: Ports (1-7/8-14)
  • PoE auto recovery: Ports 1-16
  • Dimensions 286 x 112 x 25 mm
  • Desktop design, without fan

Package contents

  • Device
  • Power adapter 12V/1A

Download

Datasheet

Bussines information

Luděk Merta, +420 722 926 224 , ludek.merta@discomp.cz

Technical parameters

Connectors and Interfaces

LAN speed: (16) 10/100/1000Mbps

Power

Power type: DC connector
PoE type: PoE-Out (only)
PoE-Out standards: 802.3af, 802.3at
PoE Out ports: 16
PoE budget [W]: 120
Long range PoE - up to 250m: Yes
Max. power consumption [W]: 120
Power via connector/terminal: 53,5V/2,43A

Physical characteristics

Design: Desktop
Fans: No
LED indication: Yes
Chassis design: Metal
Operating temperature [°C]: 0 up to 40
Width [mm]: 286
Height [mm]: 25
Depth [mm]: 112

General

Switchning capacity [Gbps]: 32
MAC address table: 8000
Packet forwarding rate [Mpps]: 23,8
