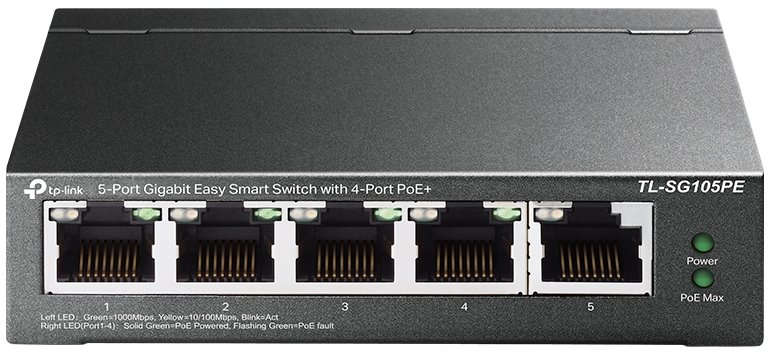

TP-Link TL-SG105PE PoE switch
TP-Link TL-SG105PE PoE switch
×
0/0
Your price excl. VAT
49.48 EUR
| Recycling fee | 0.03 EUR |
|---|---|
| Your price with RF | 49.51 EUR |
| Your price incl. VAT (21%) | 59.91 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 10410553 | |
| Part No. | TL-SG105PE | |
| Warranty | 60 months | |
You have a choice of 3 variantscompare all
D-TPDIN100
8.72 EUR excl. VAT
10.55 EUR incl. VAT
In Stock
D-TP100
11.70 EUR excl. VAT
14.16 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(5) 10/100/1000Mbps
Power
Power type:
DC connector
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
4
PoE budget [W]:
65
Max. power consumption [W]:
4,5
Power via connector/terminal:
54V DC
Physical characteristics
Design:
Desktop
Fans:
No
Chassis design:
Metal
Operating temperature [°C]:
0 up to 40
Width [mm]:
100
Height [mm]:
25
Depth [mm]:
98
General
Switchning capacity [Gbps]:
10
MAC address table:
2000
Jumbo frame [Bytes]:
16000
Packet forwarding rate [Mpps]:
7,4
Software
Web management:
Yes
Management:
Web management
Default IP address:
192.168.0.1, Dynamic from DHCP
Default login and password:
admin / admin
Product description
TP-Link PoE Switch TL-SG105PE is easy smart manageable PoE Switch with 5x 10/100/1000Mbps, with one uplink port for data and the remaining 4 ports supports PoE-Out with standard 802.3af/at (up to 30W/port). The total PoE budget switch is 65W. Benefit of this switch is management accessible from web browser or from utility. You can manage MTU/port/VLAN (up to 32), IGMP, port mirorring, cable diagnostics and many other.
Package contains
Download
DatasheetGPSR
