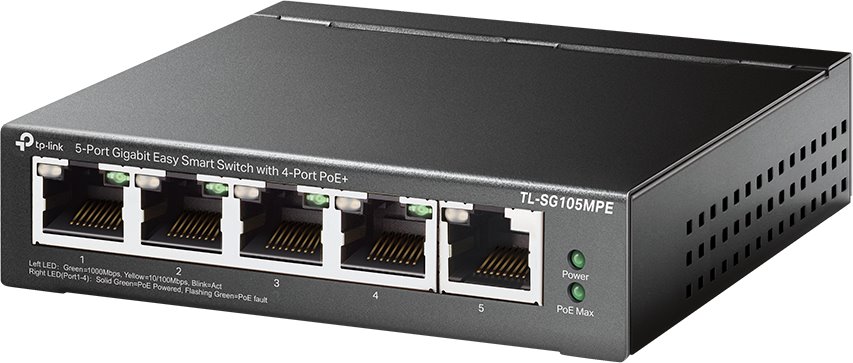

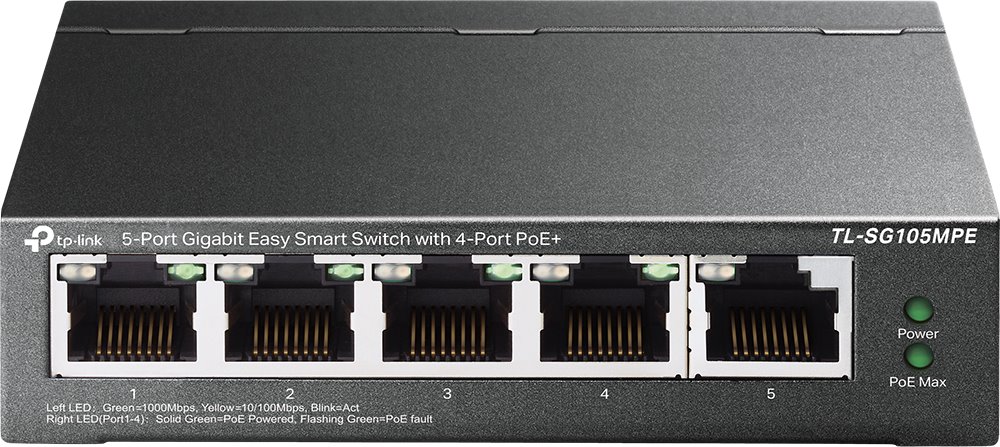

TP-Link TL-SG105MPE - Gigabit Easy Smart PoE switch, 4x PoE
TP-Link TL-SG105MPE - Gigabit Easy Smart PoE switch, 4x PoE
×
0/0
Your price excl. VAT
89.37 EUR
| Recycling fee | 0.03 EUR |
|---|---|
| Your price with RF | 89.40 EUR |
| Your price incl. VAT (21%) | 108.17 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 10410804 | |
| Part No. | TL-SG105MPE | |
| Warranty | 60 months | |
D-TPDIN100
8.72 EUR excl. VAT
10.55 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(5) 10/100/1000Mbps
Power
Power type:
DC connector
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
4
PoE budget [W]:
120
Max. power consumption [W]:
4,3
Power via connector/terminal:
53,5V/2,43A
Physical characteristics
Design:
Desktop
Fans:
No
Chassis design:
Metal
Operating temperature [°C]:
0 up to 40
Width [mm]:
100
Height [mm]:
25
Depth [mm]:
98
General
Switchning capacity [Gbps]:
10
MAC address table:
2000
Jumbo frame [Bytes]:
16000
Packet forwarding rate [Mpps]:
7,4
Software
Web management:
Yes
Management:
Web management, Easy Smart Configuration Utility
Features:
VLAN, QoS
Default IP address:
192.168.0.1
Default login and password:
admin / admin
Product description
Gigabit easy smart PoE switch TL-SG105MPE is an ideal upgrade from an unmanageable switch that offers 5x 10/100/1000 Mbps LAN of which 4 ports support PoE function ( 802.3af/at, 30W/port) for powering mostly cameras, WiFi APs, VoIP phones with a total PoE budget of 120W, low consumption and power supply via DC connector. It is designed for small business networks that require simple network management via web interface or application - Easy Smart Configuration Utility. In switch management, it offers QoS, IGMP Snooping to optimize multicast broadcasts, VLANs to separate networks, port mirroring, cable diagnostics and protection against looping - loop prevention.
Package contents
Download
DatasheetGPSR
