TP-Link TL-FC311B-20 Single-Mode WDM converter, 1Gbps, 1x SC, 20km

TP-Link TL-FC311B-20 Single-Mode WDM converter, 1Gbps, 1x SC, 20km
TP-Link TL-FC311B-20 Single-Mode WDM converter, 1Gbps, 1x SC, 20km
×
0/0
TP-Link TL-FC311B-20 Single-Mode WDM converter, 1Gbps, 1x SC, 20km
TP-Link TL-FC311B-20 Single-Mode WDM converter, 1Gbps, 1x SC, 20km
TP-Link TL-FC311B-20 Single-Mode WDM converter, 1Gbps, 1x SC, 20km
TP-Link TL-FC311B-20 Single-Mode WDM converter, 1Gbps, 1x SC, 20km
TP-Link TL-FC311B-20 Single-Mode WDM converter, 1Gbps, 1x SC, 20km
TP-Link TL-FC311B-20 Single-Mode WDM converter, 1Gbps, 1x SC, 20km
TP-Link TL-FC311B-20 Single-Mode WDM converter, 1Gbps, 1x SC, 20km
TP-Link TL-FC311B-20 Single-Mode WDM converter, 1Gbps, 1x SC, 20km

Your price excl. VAT
25.90 EUR
Recycling fee 0.04 EUR
Your price with RF 25.94 EUR
Your price incl. VAT (21%) 31.39 EUR
blank
In Stock
PlzeňIn Stock
Externí sklad EATo order within 48h
Externí sklad EUTo order within 48h
Availability
at our branches
Manufacturer

TP-Link

Code10410609
Part No.FC311B-20
Warranty 60 months
  • Related products4
TP-Link TL-FC311A-20 Single-Mode WDM converter, 1Gbps, 1x SC, 20km
FC311A-20

27.25 EUR excl. VAT
33.02 EUR incl. VAT
In Stock
TP-Link TL-FC1420 - 14-Slot Media Converter Chassis
FC1420

163.59 EUR excl. VAT
197.99 EUR incl. VAT
In Stock
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download

Product description

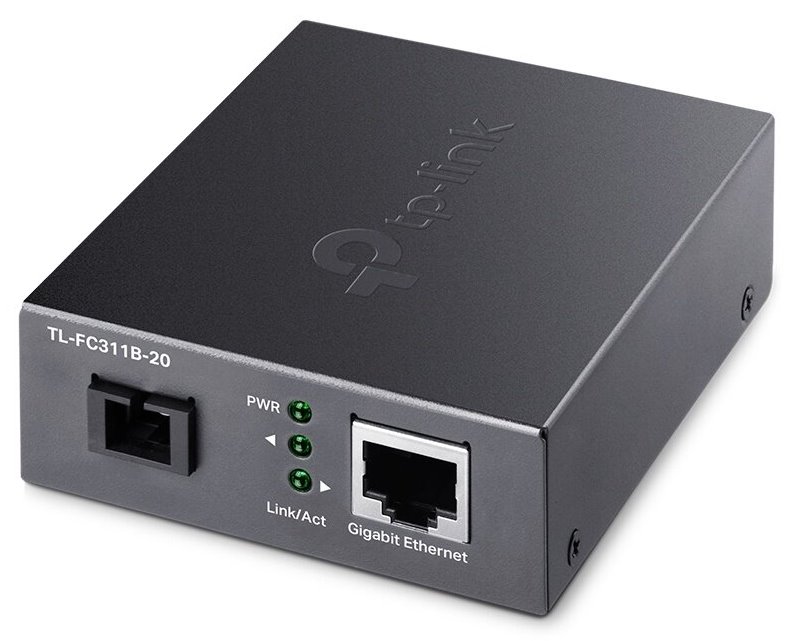

TL-FC311B-20 is an optical-metallic WDM converter from RJ45 to optical SC connector. Maximum throughput is 1000Mbps FD, which is also adapted to the Ethernet port, which can communicate with your device with 10/100/1000 Mbps speed. The converter can be used up to a distance of 20km with a single-mode (9/125um) optical fiber with one SC connector. The wavelength is 1310 / 1550nm (Tx/Rx) and for proper functionality it is necessary to have on opposite side model TL-FC311A-20, which has opposite Tx and Rx than this model.

Package contains

  • Media converter
  • Power adapter 5V/0.6A

Download

Datasheet

Bussines information

Luděk Merta, +420 722 926 224 , ludek.merta@discomp.cz

Technical parameters

Optics

For cable type: Single Mode
Transmission speed: 1 Gbps
Wavelength - Tx/Rx [nm]: 1310 / 1550
Distance [km]: 20

Connectors and Interfaces

Optical Connectors: (1) SC
LAN speed: (1) 10/100/1000Mbps
Optical interfaces: (1) 1000Mbps

Power

Power type: DC connector
Max. power consumption [W]: 3
Power via connector/terminal: 5V / 0,6A

Physical characteristics

Operating temperature [°C]: 0 up to 50
Width [mm]: 73
Height [mm]: 27
Depth [mm]: 95
